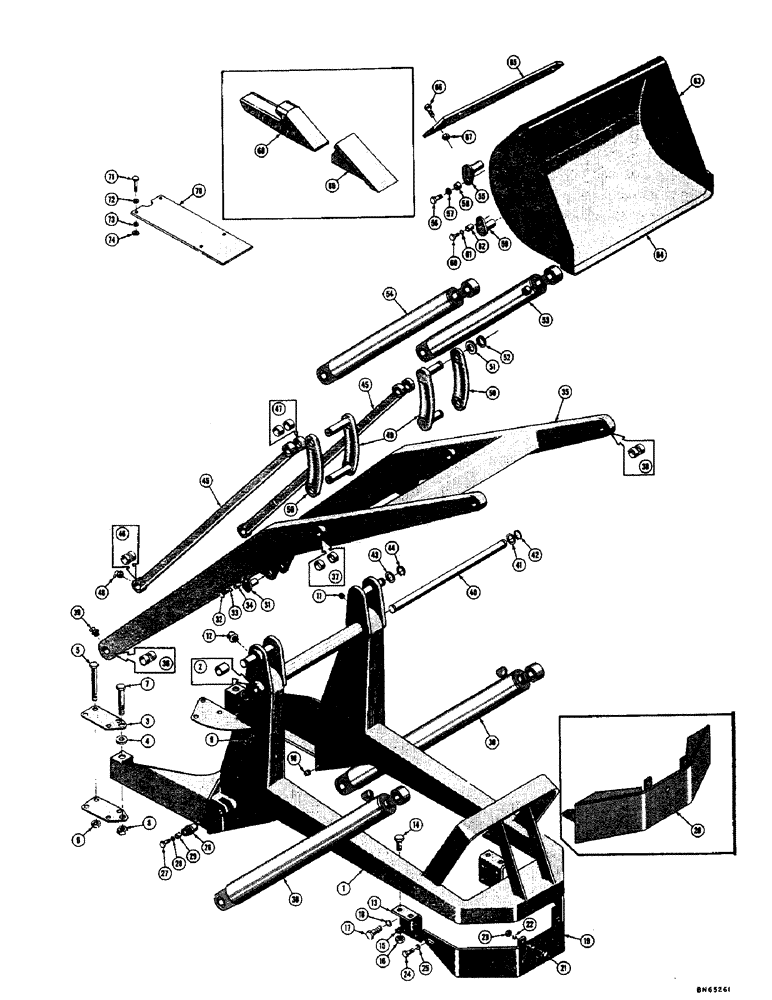

Запчасти Case 42 (04) - FRAME, LIFT ARMS, BUCKETS AND CYLINDERS

1

D24696

FRAME - loader (Used on models without backhoe) See D29622, Inlcudes: Ref. 2

1шт.

D29622

FRAME - loader (Used on models with backhoe) See D24696, Inlcudes: Ref. 2

1шт.

2

DR10018

BUSHING - cross shaft

2шт.

3

DR10002

BRACKET - mounting, frame (Rear)

4шт.

4

195-53

WASHER,1" x 2" x .134"

- plain (1-1/16" I.D. x 2" O.D. x 1/8" thick)

2шт.

5

13-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5

HHCS - 5/8" - 11 NC x 7-1/2"

8шт.

6

230-4117

LOCK NUT,7/16"-14, GA

NUT - hex., lock (5/8" - 11 NC)

8шт.

7

16-16120

X

HHCS - 1" - 14 NF x 7-1/2"

2шт.

8

131-370

LOCK NUT

NUT - hex., lock (1" - 14 NF)

2шт.

9

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - pipe, square socket head (1")

1шт.

10

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- pipe, square socket head (1/4") L.H. reservoir (Not used on backhoe models)

1шт.

11

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, square head (1/4") L.H. reservoir (Not used on backhoe models)

1шт.

12

31543

BREATHER

- hydraulic oil reservoir (2 used on backhoe models)

1шт.

T14011

ELEMENT

- breather (Not shown)

1шт.

13

DR10204

BRACKET - mounting, frame (Front)

2шт.

14

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

15

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

16

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

17

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

8шт.

18

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

19

D24537

GUARD - pump (See D28226)

1шт.

20

D28226

GUARD - pump (Optional) Used with front counterweight (See D24537)

1шт.

21

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

22

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

23

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

24

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

25

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

26

D21852

PIN - lift, Serial Range: cylinder-frame

2шт.

27

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

28

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

29

D23740

BUSHING

- bolt, lockhead pin

2шт.

30

D28041

CYLINDER ASSY.

CYLINDER - lift, hydraulic (See Figure 44 for breakdown)

2шт.

31

D21235

PIN - lift cylinder to lift arms

2шт.

32

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

33

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

34

D23740

BUSHING

- bolt, lockhead pin

2шт.

35

D25023

ARM - lift, Inlcudes: Ref. 36 - 38

1шт.

36

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- lift arm at frame

4шт.

37

D23444

BUSHING

- lift arm at lever

4шт.

38

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- lift arm at bucket

4шт.

39

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

40

D24559

SHAFT - cross

1шт.

41

DR10004

WASHER

- cross shaft (1-17/32" I.D. x 2-1/2" O.D. x 1/8" thick)

2шт.

42

R10197

RING

SNAP RING - cross shaft retaining

2шт.

43

DR10004

WASHER

- level rod (1-17/32" I.D. x 2-1/2" O.D. x 1/8" thick)

2шт.

44

D25279

SNAP RING,M35, Int

- level rod retaining (Rear)

2шт.

45

D26090

ROD - level, Inlcudes: Ref. 46 and 47

2шт.

46

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- level rod at frame

2шт.

47

DR10011

BUSHING

- level rod at frame

2шт.

48

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

49

D25960

LINK - level, inner

2шт.

50

D25891

LINK - level, outer

2шт.

51

195-59

WASHER,1 5/16" x 2 3/4" x .165"

- level rod retaining (15/16" I.D. x 2-3/4" O.D. x 11/64" thick)

1шт.

52

D26918

SNAP RING,#125, Ext

Ring, Snap, , level rod and link retaining (3/32" thick groove) #125, Ext

4шт.

53

D28069

CYLINDER - bucket dump, L.H. (Used before loader serial no. 4069620) See Figure 42[1] for breakdown (See D29668)

1шт.

54

D28070

CYLINDER - bucket dump, R.H. (Used before loader serial no. 4069620) See Figure 42[1] for breakdown (See D29668)

1шт.

53

D29668

CYLINDER - bucket dump, both sides (Used on loader serial no. 4069620 and after) See Figure 42 for breakdown (See D28069 and D28070)

2шт.

54

D29668

CYLINDER - bucket dump, both sides (Used on loader serial no. 4069620 and after) See Figure 42 for breakdown (See D28069 and D28070)

2шт.

55

D21235

PIN - bucket dump, Serial Range: cylinder-bucket

2шт.

56

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

57

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

58

D23740

BUSHING

- bolt, lockhead pin

2шт.

59

D21561

AXLE PIN

PIN - bucket to lift arms

2шт.

60

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

61

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

62

D23740

BUSHING

- bolt, lockhead pin

2шт.

63

D26152

BUCKET - dry material, 15 cu. ft. (63-3/8" wide) Machinery item, Inlcudes: Ref. 64

1шт.

64

DR10209

EDGE

BLADE - cutting (63-3/8" wide)

1шт.

65

D10235

GUARD - spill, optional (62" wide) Machinery item

1шт.

63

D25934

BUCKET - snow, 1 cu. yd. (79-3/8" wide) Machinery item, Inlcudes: Ref. 64

1шт.

64

D20549

EDGE

BLADE - cutting (79-3/8" wide)

1шт.

63

D25920

BUCKET - light material (63-3/8" wide) Machinery item, Inlcudes: Ref. 64

1шт.

64

DR10209

EDGE

BLADE - cutting (63-3/8" wide)

1шт.

65

D10235

GUARD - spill, optional (62" wide) Machinery item, Inlcudes: Ref. 66 and 67

1шт.

66

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

5шт.

67

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

5шт.

63

D25810

BUCKET - tread width, 2/3 cu. yd. (73-3/8" wide) Machinery item

1шт.

64

DR10524

X

BLADE - cutting (73-3/8" wide)

1шт.

65

D10946

GUARD - spill, optional (72" wide) Machinery item

1шт.

66

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

7шт.

67

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

7шт.

68

D26368

SUPPORT

SHANK - digging tooth, optional

1шт.

69

D27748

TOOTH

- digging, optional

1шт.

70

38392

SPACER - floor plate

2шт.

71

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

72

195-21

WASHER,5/16"

plain (11/32" I.D. x 11/16" O.D. x 1/16" thk) 5/16"

4шт.

73

92-5

LOCK WASHER,5/16"

med sect. 5/16"

4шт.

74

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.
