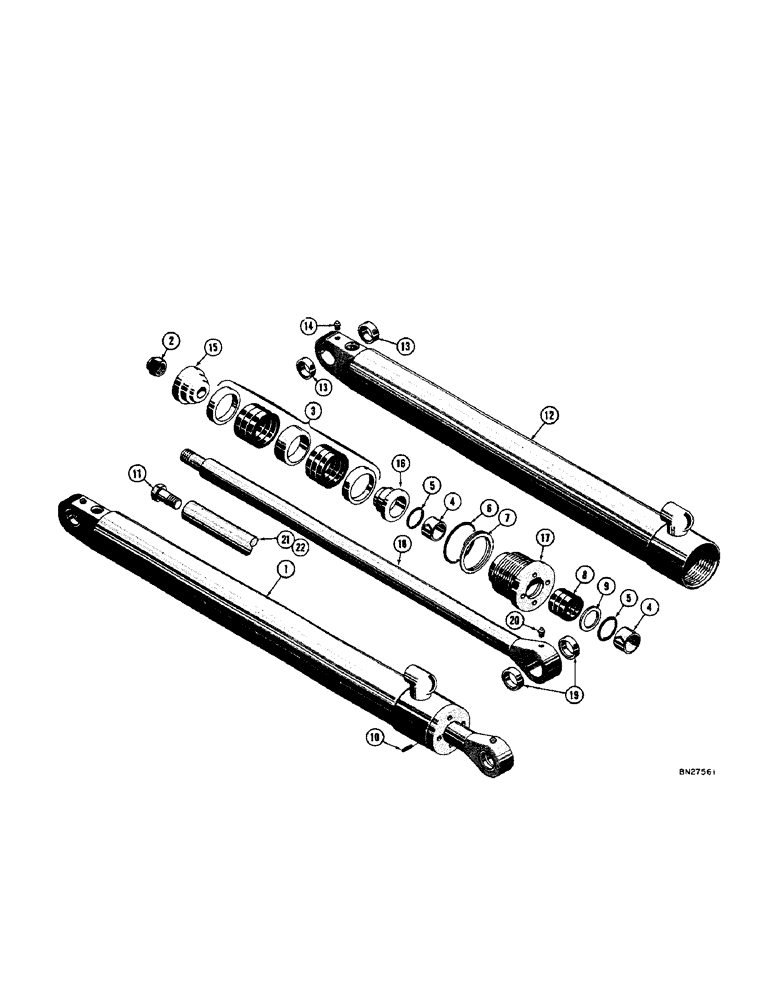

Запчасти Case 42 (42[A]) - D29668 HYDRAULIC BUCKET CYLINDERS

1

D29668

CYLINDER - bucket, hydraulic (2-1/2" I.D. x 23-7/16" stroke) Used on loader serial no. 4069620 and after, Inlcudes: Ref. 2 - 22

2шт.

D30128

KIT

- cylinder packing, Inlcudes: Ref. 2 - 11

1шт.

2

D23739

LOCK NUT

NUT - lock, piston rod (3/4" - 16 NF) If used

1шт.

3

D28373

PACKING

- piston (Includes chevrons and spacers)

1шт.

4

D27706

WIPER SEAL

WIPER - piston rod

2шт.

5

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O" ring, rod wiper

2шт.

6

O10984AB

X

SEAL - "O" ring, gland

1шт.

7

D27856

RING

- backup, gland seal

1шт.

8

D28494

SEAL

- piston rod

1шт.

9

D28498

RING

- backup, piston rod seal

1-3шт.

10

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, , if used 3/16" x 5/8", Slotted

1шт.

11

D29306

BOLT

SCREW - cap, special (3/4" - 16 NF x 2-1/2") If used

1шт.

12

D29350

TUBE - cylinder (D29668 cylinder only), Inlcudes: Ref. 13

1шт.

13

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder tube end

2шт.

14

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 67-1/2 degrees (1/8" NPT)

1шт.

15

D28364

PISTON

- half, rear

1шт.

16

D28363

PISTON

- half, front

1шт.

17

D27999

GLAND

- packing

1шт.

18

D28075

ROD ASSY.

ROD - piston (1-1/2" dia.) When stock is exhausted use 1 - D32148 rod and 1 - D29306 cap screw, Inlcudes: Ref. 19

1шт.

19

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

21

D32148

ROD ASSY.

ROD - piston (1-1/2" dia.), Inlcudes: Ref. 22

1шт.

22

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod end (Not shown)

2шт.
