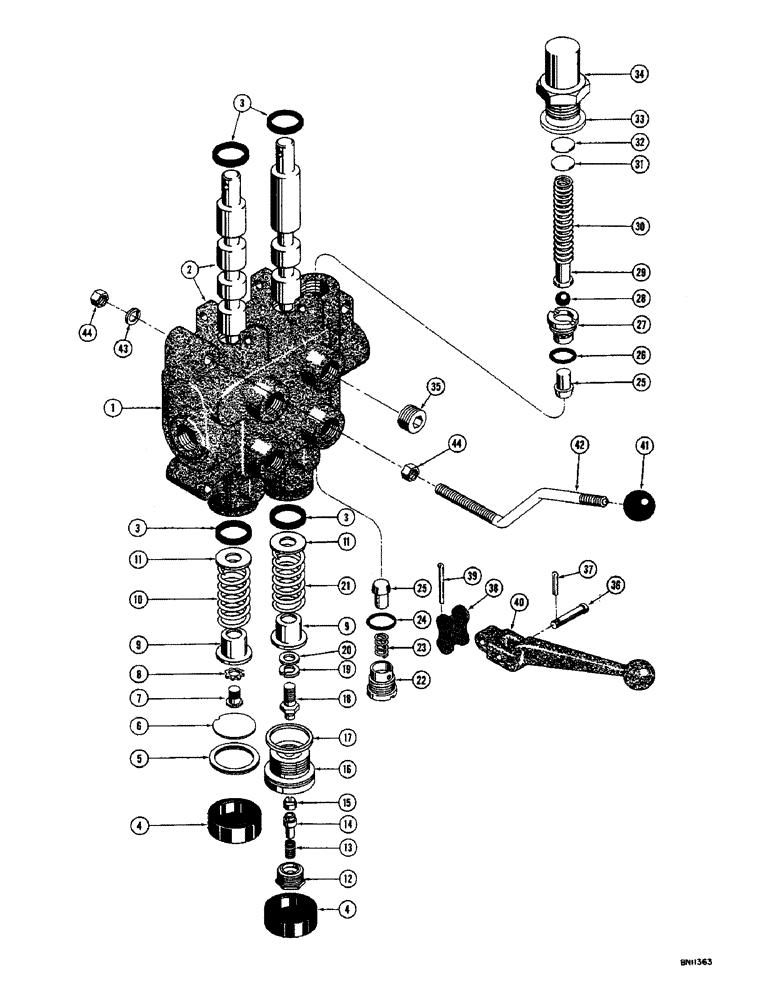

Запчасти Case 42 (40) - LANDSCAPERS CONTROL FOR EAGLE HITCH, TWO SPOOL

1

D28469

VALVE - hydraulic, landscaper's control (Complete), Inlcudes: Ref. 2 - 41

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOLS - matched set (Use D28469)

1шт.

3

36642

SEAL

RING - wedge, spool seal

4шт.

4

36645

CAP

- rubber, spool end

2шт.

5

36633

LID

SNAP RING - stop disc

1шт.

6

36631

HOUSING

- stop

1шт.

7

36626

HOSE CLIP

BOLT - centering spring

1шт.

8

36628

LOCK WASHER

- lock

1шт.

9

36630

DRAWBAR SUPPORT

- stop

2шт.

10

36632

SPRING

- centering (3 position spool)

1шт.

11

36650

WASHER

- spool stop

2шт.

12

36656

CLIP

CAP - float detent spring

1шт.

13

36658

ROD

SPRING - float detent

1шт.

14

36654

PLUG

HOLDER - finger float detent

1шт.

15

36655

- float detent

3шт.

16

36653

- float detent

1шт.

17

D23729

GASKET - float detent cap

1шт.

18

D23728

ADAPTER - float detent

1шт.

19

36662

GEAR

WASHER - lock, float spool

1шт.

20

D23727

WASHER - float

1шт.

21

D23726

SPRING - centering (4 position spool)

1шт.

22

D28574

PLUG

- bottom check poppet

1шт.

23

D28840

SPRING

- lower check poppet

1шт.

24

D48959

SEAL - "O" ring, poppet plug

1шт.

25

D28576

VALVE POPPET

POPPET - check

2шт.

26

D23928

O-RING

SEAL - "O" ring, valve seat

1шт.

27

D28575

SEAT

- relief valve

1шт.

28

211-12

BALL,7/16 Dia

- relief valve

1шт.

29

D26379

GUIDE - main relief valve spring

1шт.

30

D25842

SPRING

- main relief valve

1шт.

31

D28960

SHIN

SHIM - main relief valve (1006" thick)

1шт.

32

D25844

SHIM,.0097" Thk

main relief valve .0097" Thk

1шт.

33

34115

GASKET

- main relief valve

1шт.

34

D28961

CAP - main relief valve

1шт.

35

221-844

PLUG,Hex Soc, 1/2"-14

- pipe, hex. socket head (1/2")

3шт.

36

36627

SEAT

PIN - control valve lever

2шт.

37

36625

X

PIN - cotter (5/64" x 1/2")

2шт.

38

D36640

LINK - valve lever

2шт.

39

132-13

PIN

- cotter (1/16" x 1-1/2")

2шт.

40

D23722

HANDLE

LEVER - valve

2шт.

41

70213

KNOB

- hand rest

1шт.

42

D27085

SEAL ASSY.

REST - hand

1шт.

43

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

44

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.
