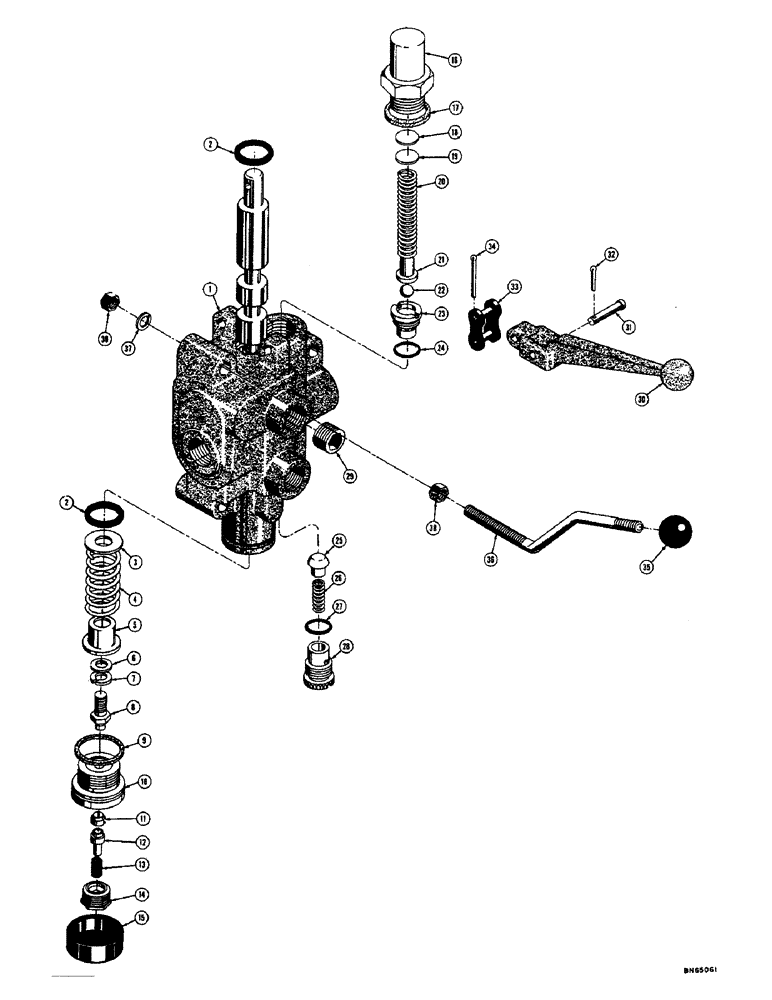

Запчасти Case 42 (38) - LANDSCAPERS CONTROL FOR EAGLE HITCH, ONE SPOOL

1

D28962

VALVE - landscaper's control (Complete), Inlcudes: Ref. 2 - 38

1шт.

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOLS - matched set (Use D28962)

1шт.

2

36642

SEAL

RING - wedge, spool seal

2шт.

3

36650

WASHER

- spool stop

1шт.

4

D23726

SPRING - centering

1шт.

5

CAS36630

COLLAR

- stop

1шт.

6

D23727

WASHER - float

1шт.

7

36662

GEAR

WASHER - lock, float

1шт.

8

D23728

ADAPTER - float detent

1шт.

9

D23729

GASKET - float detent cap

1шт.

10

NLS

NO LONGER SERVICED

- float detent

1шт.

11

NLS

NO LONGER SERVICED

- float detent

3шт.

12

NLS

NO LONGER SERVICED

HOLDER - finger, float detent

1шт.

13

36658

ROD

SPRING - float detent

1шт.

14

36656

CLIP

CAP - float detent spring

1шт.

15

36645

CAP

- rubber, spool end

1шт.

16

D28961

BODY - main relief valve

1шт.

17

34115

GASKET

- relief valve body

1шт.

18

D25844

SHIM,.0097" Thk

Relief valve spring .0097" Thk

1шт.

19

D28960

SHIN

SHIM - relief valve spring (.006" thick)

1шт.

20

D25842

SPRING

- relief valve

1шт.

21

D26379

GUIDE - relief valve spring

1шт.

22

A7450

X

BALL - main relief valve (7/16" dia.)

1шт.

23

D28575

SEAT

- main relief valve

1шт.

24

D23928

O-RING

SEAL - "O" ring, main relief valve seat

1шт.

25

D28576

VALVE POPPET

POPPET - check

1шт.

26

D28840

SPRING

- check poppet

1шт.

27

D48959

SEAL - "O" ring, check plug

1шт.

28

D28574

PLUG

- check poppet

1шт.

29

D23723

PLUG

- uppper valve port

1шт.

30

D23722

HANDLE

- control valve

1шт.

31

36627

SEAT

PIN - control valve lever

1шт.

32

36625

X

PIN - cotter (5/64" x 1/2")

1шт.

33

36640

DRAG LINK

LINK - valve lever

1шт.

34

132-13

PIN

- cotter (5/64" x 1-1/2")

1шт.

35

70213

KNOB

- hand rest

1шт.

36

D27085

SEAL ASSY.

REST - hand

1шт.

37

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

38

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.
