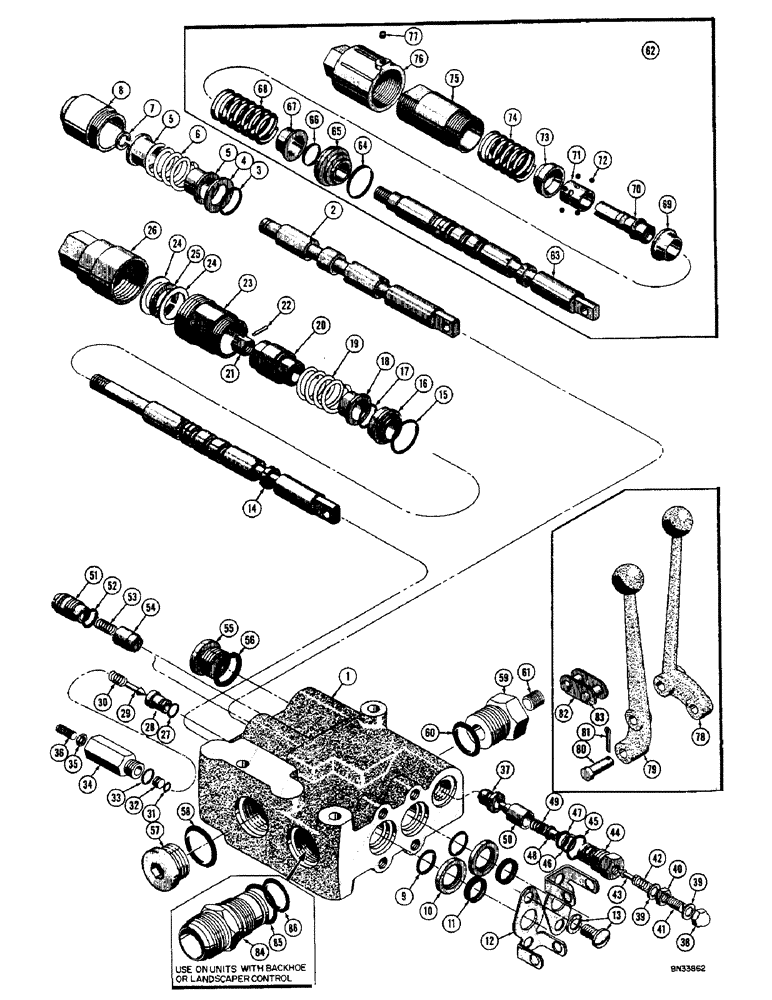

Запчасти Case 42 (26) - D25300 LOADER HYDRAULIC CONTROL VALVE

D25300

VALVE - hydraulic control (Parker #VDP12DF231) When stock is exhausted use D29614, Inlcudes: Ref. 1 - 86

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Use D25300)

1шт.

2

D26243

SPOOL ASSEMBLY - three position (Color code - black or letter code - W) .73700" to .73709", Inlcudes: Ref. 3 - 7

1шт.

D26244

SPOOL

ASSEMBLY - three position (Color code - blue or letter code - X) .73710" to .73719", Inlcudes: Ref. 3 - 7

1шт.

D26245

SPOOL ASSEMBLY - three position (Color code - yellow or letter code - Y) .73720" to .73729", Inlcudes: Ref. 3 - 7

1шт.

D26246

SPOOL ASSEMBLY - three position (Color code - green or letter code - Z) .73730" to .73740", Inlcudes: Ref. 3 - 7

1шт.

3

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

4

A14535

RETAINER

- "O" ring

1шт.

5

A14533

BRONZE BUSHING

SPACER - spring

2шт.

6

A14534

SPRING

- spool return

1шт.

7

A13190

X

SNAP RING - spool retainer

1шт.

8

A14529

CAP

- spool

1шт.

9

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring

2шт.

10

A14526

RETAINER

- "O" ring

2шт.

11

A14527

SCRAPER

SEAL - wiper

2шт.

12

D26283

BRACKET

RETAINER - handle bracket

2шт.

13

D20771

SCREW AND LOCKWASHER - retaining plate

4шт.

14

D26248

SPOOL ASSEMBLY - four position, snap ring type detent (Color code - black or letter code - W) .73700" to .73709" (Use D29847 spool with ball type detent - see ref. #62), Inlcudes: Ref. 15 - 22

1шт.

D26247

SPOOL ASSEMBLY - four position, snap ring type detent (Color code - blue or letter code - X) .73710" to .73719" (Use D11723 spool with ball type detent - see ref. #62), Inlcudes: Ref. 15 - 22

1шт.

D26249

SPOOL ASSEMBLY - four position, snap ring type detent (Color code - Y) .73720" to .73729" (Use D29848 spool with ball type detent - see ref. #62), Inlcudes: Ref. 15 - 22

1шт.

D26250

SPOOL ASSEMBLY - four position, snap ring type detent (Color code - green or letter code - Z) .73730" to .73740" (Use D29849 spool with ball type detent - see ref. #62), Inlcudes: Ref. 15 - 22

1шт.

15

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O" ring, retainer

1шт.

16

A14537

RETAINER - "O" ring (Use D31433)

1шт.

D31433

RETAINER

- "O" ring

1шт.

17

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring, spool

1шт.

18

A14538

SPACER - spring

1шт.

19

A14534

SPRING

- float detent

1шт.

20

A14539

BARREL - float detent

1шт.

21

A14544

NUT - castle, high

1шт.

22

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

23

D26271

CAP - float spool, inner

1шт.

24

D26273

WASHER - wear

2шт.

25

A14541

RING, SNAP

SNAP RING - float detent

1шт.

26

D26272

CAP - float spool, outer, Inlcudes: Ref. 27 - 36

1шт.

D26896

VALVE - secondary relief, adjustable

1шт.

27

D26277

SEAL - "O" ring, seat

1шт.

28

D26276

SEAT - relief valve (Use D29853)

1шт.

D29853

SEAT

- relief valve

1шт.

29

D26278

PLUNGER - relief valve

1шт.

30

D26898

SPRING - relief valve

1шт.

31

D26899

O-RING,0.145" ID

SEAL - "O" ring, follower

1шт.

32

D26897

FOLLOWER - spring

1шт.

34

D26900

CAP - relief valve

1шт.

35

25-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam (1/4"-28 NF)

1шт.

36

176-395

SCREW - set, headless (1/4" - 28 NF x 3/4")

1шт.

37

D26259

SEAT

- poppet

1шт.

38

D20756

X

NUT - acorn, pilot operated relief valve

1шт.

39

D26270

WASHER, SEALING

WASHER - special

2шт.

40

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex., jam (5/16" - 24 NF)

1шт.

41

82-514

SET SCREW

SCREW - adjusting, pilot operated relief valve

1шт.

42

D26268

SPRING

- pilot

1шт.

43

D26267

PLUNGER

- pilot

1шт.

44

D26262

CAP

- relief valve

1шт.

46

D26264

X

RING - backup, D26265 "O" ring

1шт.

47

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

SEAL - "O" ring, relief valve cap to side wall

1шт.

48

D26266

SEAT

- pilot operated relief valve

1шт.

49

D26261

VALVE SPRING

SPRING - relief valve

1шт.

50

D26260

VALVE POPPET

POPPET - relief valve (Use A16888)

1шт.

A16888

VALVE POPPET

POPPET - relief valve

1шт.

51

A14532

CAP

- check valve

2шт.

52

A14546

O-RING

SEAL - "O" ring, check valve

2шт.

53

A14520

VALVE SPRING

SPRING - check valve poppet

2шт.

54

A14528

POPPET - check valve

2шт.

55

A13192

X

PLUG - pipe, Allen head, Inlcudes: Ref. 56

1шт.

56

D26410

X

SEAL - "O" ring, plug

1шт.

57

D20774

X

PLUG - pipe, Allen head, Inlcudes: Ref. 58

1шт.

58

D26411

X

SEAL - "O" ring, plug

1шт.

59

D26467

X

PLUG - service, Inlcudes: Ref. 60

1шт.

60

D26410

X

SEAL - "O" ring, plug

1шт.

61

221-841

PLUG

- pipe, 1/4" NPT

1шт.

62

D29847

SPOOL ASSEMBLY - four position, ball type detent (Color code - black or letter code - W) .73700" to .73709", Inlcudes: Ref. 63 - 86

1шт.

D11723

SPOOL ASSEMBLY - four position, ball type detent (Color code - blue or letter code - X) .73710" to .73719", Inlcudes: Ref. 63 - 86

1шт.

D29848

SPOOL ASSEMBLY - four position, ball type detent (Color code - yellow or letter code - Y) .73720" to .73729", Inlcudes: Ref. 63 - 86

1шт.

D29849

SPOOL ASSEMBLY - four position, ball type detent (Color code - green or letter code - Z) .73730" to .73740", Inlcudes: Ref. 63 - 86

1шт.

63

NSS

NOT SOLD SEPARAT

SPOOL - float

1шт.

64

A16877

SEAL

- "O" ring, outer

1шт.

65

A14537

RETAINER - "O" ring (For service use D31433)

1шт.

D31433

RETAINER

- "O" ring

1шт.

66

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring, inner

1шт.

67

A16879

SPACER

- spool centering, rear

1шт.

68

A16882

SPRING

- centering

1шт.

69

A16881

SEAT

SPACER - spool centering, front

1шт.

70

D29840

BARREL - detent

1шт.

71

A16848

SLEEVE CYLINDER

SLEEVE - detent

1шт.

72

211-5

BALL,3/16" Dia

- steel (.) 3/16" Dia

6шт.

73

A16852

RETAINER

- ball

1шт.

74

A16853

VALVE SPRING

SPRING - detent (For service use D31434)

1шт.

D31434

X

SPRING - detent

1шт.

75

A16885

X

CAP - rear

1шт.

76

A16884

CYLINDER END CAP

CAP - front

1шт.

77

A16885

X

SCREW - set, headless slotted (Nylon) 1/4" - 20 NC x 7/16" (When stock is exhausted use 178-28)

1шт.

178-28

SET SCREW,Hex Soc, 1/4"-20 x 1/2"

SCREW - set, headless socket (1/4" - 20 NC x 1/2")

1шт.

78

D25227

HANDLE - control, outside

1шт.

79

D25228

HANDLE - control, inside

1шт.

80

O4413TF

X

PIN - handle

2шт.

81

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

6шт.

82

D36640

LINK - handle

4шт.

83

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Handle link 5/16" x .940"

4шт.

84

D26503

FITTING - special power beyond type

1шт.

85

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D26503 fitting (Large) Outer

1шт.

86

D26435

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

SEAL - "O" ring, D26503 fitting (Small) Inner

1шт.

33

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, seal, cap

1шт.

45

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, relief valve cap

1шт.
