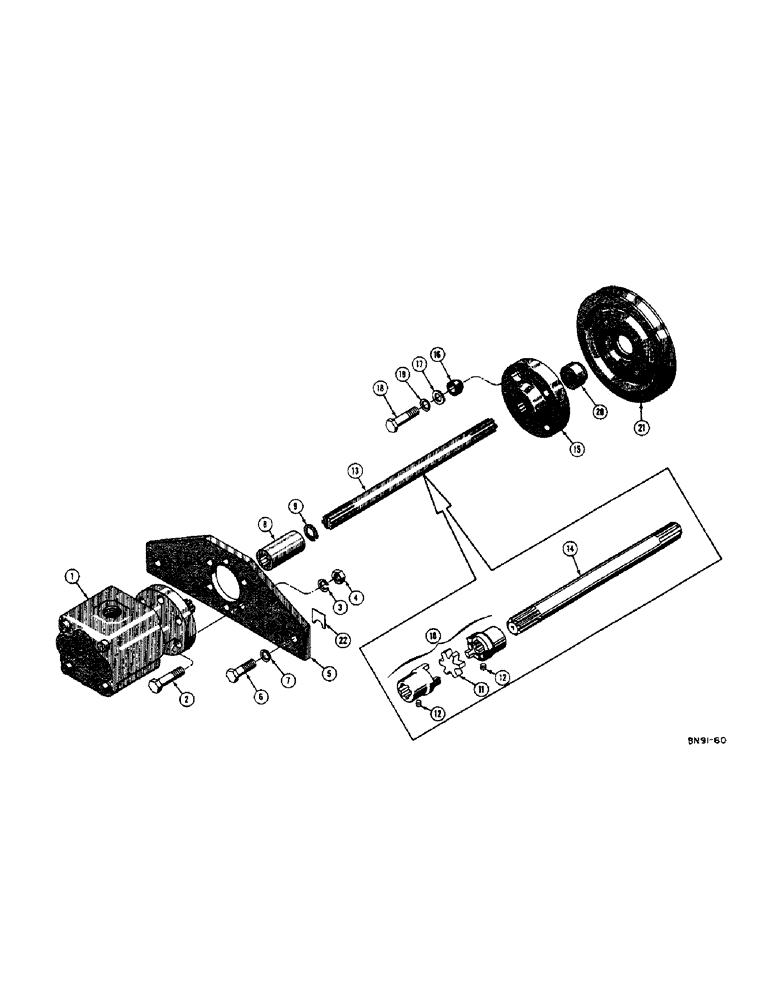

Запчасти Case 42 (24) - PUMP DRIVE

1

D25347

PUMP, HYDRAULIC

PUMP - hydraulic (See Figure 22 for breakdown)

1шт.

2

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

6шт.

3

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

6шт.

4

25-107

NUT,7/16"-14, G5

- hex. (7/16" - 14 NC)

6шт.

5

D25590

BRACKET - mounting, pump (Used prior to loader serial no. 4068156) For service use D29747

1шт.

D29747

BRACKET - mounting, pump (Used on loader and loader-backhoe serial no. 4068156 and after) See D25590

1шт.

6

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

2шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

8

36280

COUPLING

- shaft to pump, early production models (For service 1 - D29617 coupling and 1 - D27952 shaft may be used)

1шт.

9

D28157

SNAP RING,0.875", Int, #87

Ring, Snap, , used in 36280 coupling 0.875", Int, #87

1шт.

10

D29617

COUPLING

- shaft to pump, late production models (Flexible type) For use with D27952 shaft, Inlcudes: Ref. 11 and 12

1шт.

11

D30101

PLATE ASSY.

PLATE - wear, bronze

1шт.

12

83-56

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set (5/16" - 18 NC x 3/8")

2шт.

13

D26303

X

SHAFT - pump drive, used with 36280 coupling (For service 1 - D27952 shaft and 1 - D29617 coupling may be used)

1шт.

14

D27952

SHAFT

- pump drive, used with D29617 coupling

1шт.

15

G36217

HUB ASSY.

COUPLING - flexible, pump driveshaft to pulley, Inlcudes: Ref. 16

1шт.

16

G36905

BLOCK

AND BUSHING - flexible coupling

4шт.

17

VT3340

X

WASHER - coupling bolt (29/64" I.D. x 3/4" O.D. x 1/16" thick)

4шт.

18

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

19

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

4шт.

20

G11263

NUT

- fan drive pulley (When stock is exhausted use A35673)

1шт.

A35673

NUT

- fan drive pulley

1шт.

21

G11342

X

PULLEY - fan and generator drive

1шт.

22

D29123

SHIM - pump aligning

1шт.
