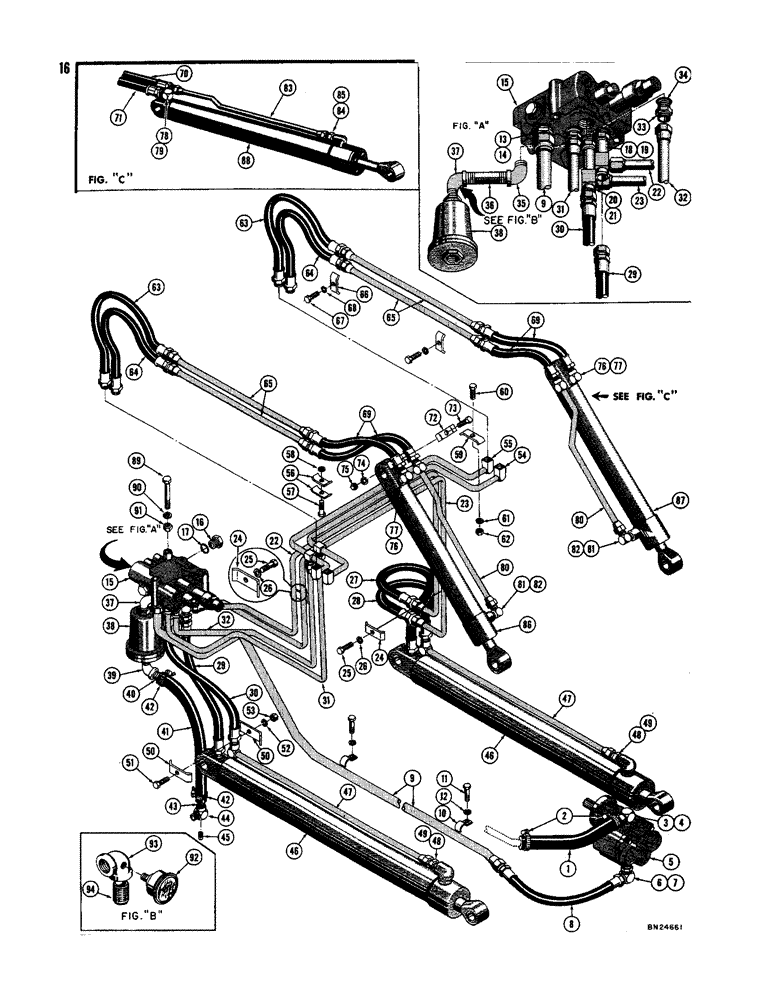

Запчасти Case 42 (16) - LOADER HYDRAULICS

1

D25446

LARGE HOSE

HOSE - suction, reservoir to pump (1" I.D. x 1-1/2" O.D. x 13" long)

1шт.

2

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - D25446 hose

2шт.

3

D24545

ELBOW - 90 degrees adjustable (1" JIC)

1шт.

4

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, D24545 elbow

1шт.

5

D25347

PUMP, HYDRAULIC

PUMP - hydraulic (See Figure 22 for breakdown)

1шт.

6

D25353

ELBOW - 90 degree adjustable, street (3/4" NPT x 7/8" JIC), Inlcudes: Ref. 7

1шт.

7

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring, D25353 elbow

1шт.

8

D26476

SUPPORT

HOSE - high pressure, pump to tube (3/4" I.D. x 1-5/32" O.D. x 12-1/2" long)

1шт.

9

D26385

TUBE

- high pressure, pump to valve (Used before loader serial no. 4068156) For service on models with front counterweight before loader serial no. 4068156, D29745 tube and D29747 bracket can be used (See Figure 24, ref. #5)

1шт.

D29745

TUBE

- high pressure, pump to valve (Used on loader serial no. 4068156 and after) See D26385

1шт.

10

49782

CLIP - tube mounting

3шт.

11

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

3шт.

12

92-5

LOCK WASHER,5/16"

med sect. 5/16"

3шт.

13

D28890

CONNECTOR, ELEC

CONNECTOR - special male (3/4" JIC), Inlcudes: Ref. 14

1шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D28890 connector

1шт.

15

D25300

VALVE - hydraulic control (Used before loader serial no. 4068511) See Figure 26 for breakdown (Use D29614)

1шт.

D29614

VALVE - hydraulic control (Used on loader serial no. 4068511 and after) See Figure 32 for breakdown

1шт.

16

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Pipe (3/4" JIC), Incl. Ref. 17 Hex Hd, 1 1/16"-12 ORB

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, 218-5158 plug

1шт.

18

D25137

TEE

- adjustable, 5/8" JIC, Inlcudes: Ref. 18

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D25137 tee

1шт.

20

D26168

TEE - adjustable, 5/8" JIC, Inlcudes: Ref. 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D26168 tee

1шт.

22

D26343

TUBE - rear cross-over to L.H. lift cylinder

1шт.

23

D26345

TUBE - front cross-over to L.H. lift cylinder

1шт.

24

38331

PLATE

CLAMP - plate, D26343 and D26345 tubes

2шт.

25

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

2шт.

26

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

27

D28081

HOSE

- rear port to L.H. lift cylinder (1/2" I.D. x 7/8" O.D. x 22" long)

1шт.

28

D29189

HOSE - front port of L.H. lift cylinder (1/2" I.D. x 7/8" O.D. x 23-3/8" long)

1шт.

29

D28083

HOSE - to rear port of R.H. lift cylinder (1/2" I.D. x 7/8" O.D. x 18-1/2" long)

1шт.

30

D28106

HOSE - to front port of R.H. lift cylinder (1/2" I.D. x 7/8" O.D. x 19-1/2" long)

1шт.

31

D26471

TUBE - valve to front cross-over manifold tube

1шт.

32

D26473

TUBE - valve to rear cross-over manifold tube

1шт.

33

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - D26471 and D26473 tubes to valve (5/8" JIC x 5/8" JIC), Inlcudes: Ref. 34

2шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5062 connector

1шт.

35

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street 90º, 3/4"-14, NPT

1шт.

36

221-702

NIPPLE - pipe (3/4" NPT x 2-3/4")

1шт.

37

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street 90º, 3/4"-14, NPT

1шт.

38

D21003

FILTER

- hydraulic oil (See Figure 24[1] for breakdown)

1шт.

39

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street 90º, 3/4"-14, NPT

1шт.

40

221-215

PIPE,Nipple, 3/4" NPT x 2"

NIPPLE - pipe (3/4" NPT x 2")

1шт.

41

D25739

LARGE HOSE

HOSE - filter to reservoir (1" I.D. x 1-1/2" O.D. x 16" long)

1шт.

42

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - D25739 hose

2шт.

43

221-215

PIPE,Nipple, 3/4" NPT x 2"

NIPPLE - pipe (3/4" NPT x 2")

1шт.

44

D28486

ELBOW - 90 dgree street (3/4" NPT)

1шт.

45

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe (1/2" NPT)

1шт.

46

D28041

CYLINDER ASSY.

CYLINDER - lift, hydraulic (See Figure 44 for breakdown)

2шт.

47

D28079

TUBE - hose to front port of lift cylinder

2шт.

48

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - tube to lift cylinder (5/8" JIC x 5/8" JIC), Inlcudes: Ref. 49

2шт.

49

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5062 connector

1шт.

50

D28020

CLAMP - plate, hoses at rear of lift cylinders

4шт.

51

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

52

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

53

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

54

D26352

TUBE - front cross-over manifold

1шт.

55

D26354

TUBE - rear cross-over manifold

1шт.

56

38331

PLATE

CLAMP - plate, cross-over manifold tubes

4шт.

57

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

58

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

59

32978

PLATE ASSY.

CLAMP - plate, cross-over manifold tubes at ends

2шт.

60

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2"

2шт.

61

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

62

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

63

D26483

HOSE - rear cross-over manifold tube to rear port of dump cylinders (1/2" I.D. x 7/8" O.D. x 21-1/2" long) For service use D31237

2шт.

D31237

HOSE - rear cross-over manifold tube to rear port of dump cylinders (1/2" I.D. x 29/32" O.D. x 21-1/2" long)

2шт.

64

D26481

HOSE - front cross-over manifold tube to front port of dump cylinders (1/2" I.D. x 7/8" O.D. x 20" long) For service use D31238

2шт.

D31238

HOSE - front cross-over manifold tube to front port of dump cylinders (1/2" I.D. x 29/32" O.D. x 20" long)

2шт.

65

D26485

TUBE - cross-over tubes to dump cylinders, on level rod

4шт.

66

38331

PLATE

CLAMP - plate, D26485 tubes to level rod

4шт.

67

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

4шт.

68

92-5

LOCK WASHER,5/16"

med sect. 5/16"

4шт.

69

D24613

HOSE - tubes on level rod to dump cylinder (1/2" I.D. x 7/8" O.D. x 14-3/4" long) Used before loader serial no. 4069620 (See D24611 and D27989) For service use D31239

4шт.

D31239

HOSE - used for service of D24613 hose (1/2" I.D. x 29/32" O.D. x 15" long)

4шт.

70

D24611

HOSE - to front port tube, dump cylinder (Used on loaders serial no. 4069620 and after) 1/2" I.D. x 7/8" O.D. x 15" long (See D24613)

2шт.

71

D27989

HOSE

- to rear port, dump cylinder (Used on loader serial no. 4069620 and after) 1/2" I.D. x 7/8" O.D. x 15" long (See D24613)

2шт.

72

32978

PLATE ASSY.

CLAMP - plate, hoses at dump cylinder

4шт.

73

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

74

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

75

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

76

D24070

ELBOW

- rear port of dump cylinder (5/8" JIC x 1/2" NPT) Used before loader serial no. 4069620 (See 218-5107), Inlcudes: Ref. 77

2шт.

77

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D24070 elbow

1шт.

78

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- rear port of dump cylinder (5/8" JIC x 5/8" JIC) Used on loader serial no. 4069620 and after (See D24070), Inlcudes: Ref. 79

2шт.

79

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5107 elbow

1шт.

80

D26341

TUBE - to front port of dump cylinder (Used before loader serial no. 4069620) See D29750

2шт.

81

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- front port of dump cylinder (5/8" JIC x 5/8" JIC) Used before loader serial no. 4069620 on D28070 and D28069 cylinders, Inlcudes: Ref. 82

2шт.

82

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5107 elbow

1шт.

83

D29750

TUBE - to front port of dump cylinder (Used on loader serial no. 4069620 and after)

2шт.

84

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - tube to dump cylinder (5/8" JIC x 5/8" JIC) Used on loader serial no. 4069620 and after, Inlcudes: Ref. 85

2шт.

85

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5062 connector

1шт.

86

D28070

CYLINDER - bucket dump, hydraulic (R.H.) See Figure 42 for breakdown (Used before loader serial no. 4069620) See D29668

1шт.

87

D28069

CYLINDER - bucket dump, hydraulic (L.H.) See Figure 42 for breakdown (Used before loader serial no. 4069620) See D29668

1шт.

88

D29668

CYLINDER - bucket dump, hydraulic (R.H. and L.H.) Used D28069 and D28070) See Figure 42[1] for breakdown

2шт.

89

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3шт.

90

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

3шт.

91

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

92

D29650

ELECTRICAL GAUGE

GAUGE - pressure, oil filter (If used)

1шт.

93

D29651

ELBOW - special, oil pressure gauge (If used)

1шт.

94

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - 3/4" NPT x 1-1/8" (Used with D29651 elbow)

1шт.
