Запчасти Case 42 (14[A]) - BULL DOZER BLADE ATTACHMENT

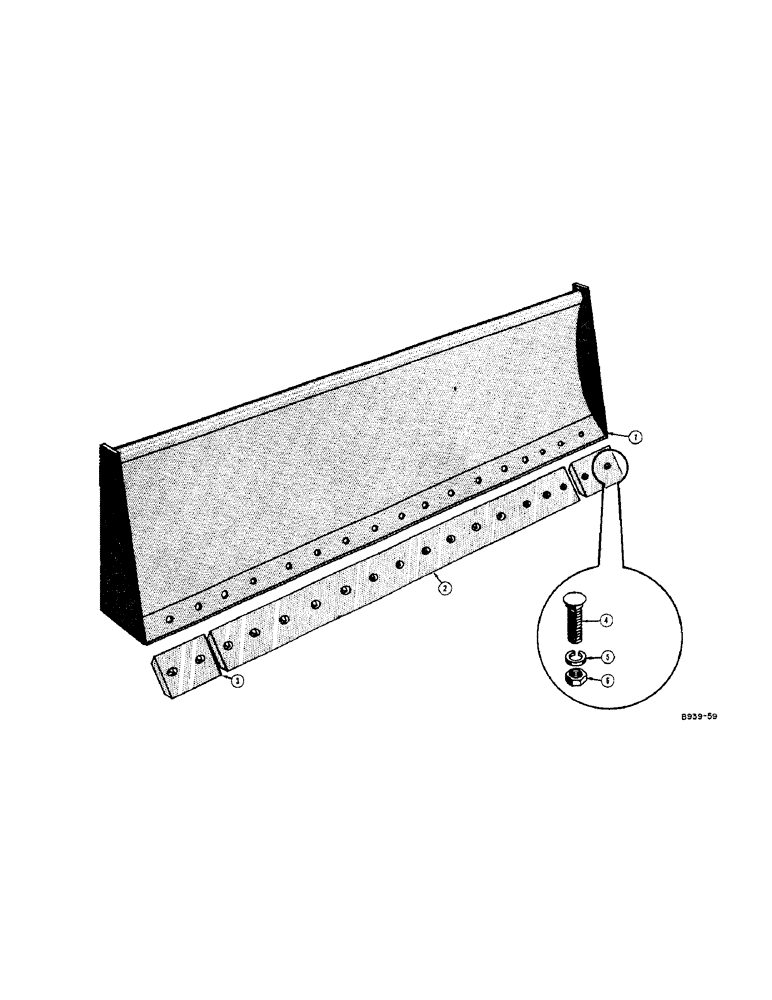

Схема запчастей Case 42 - (14[A]) - BULL DOZER BLADE ATTACHMENT

Артикул

Название

Примечание

Количество

1

D10907

BLADE - bulldozer (Machinery item) Includes moldboard and blade, Inlcudes: Ref. 2 - 6

1шт.

2

NLS

NO LONGER SERVICED

BLADE - cutting, center

1шт.

3

38150

EDGE

BLADE - cutting, end

2шт.

4

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow, #3 head (1/2" - 13 NC x 1-3/4")

18шт.

5

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

18шт.

6

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

18шт.

Выбрано товаров: 6
