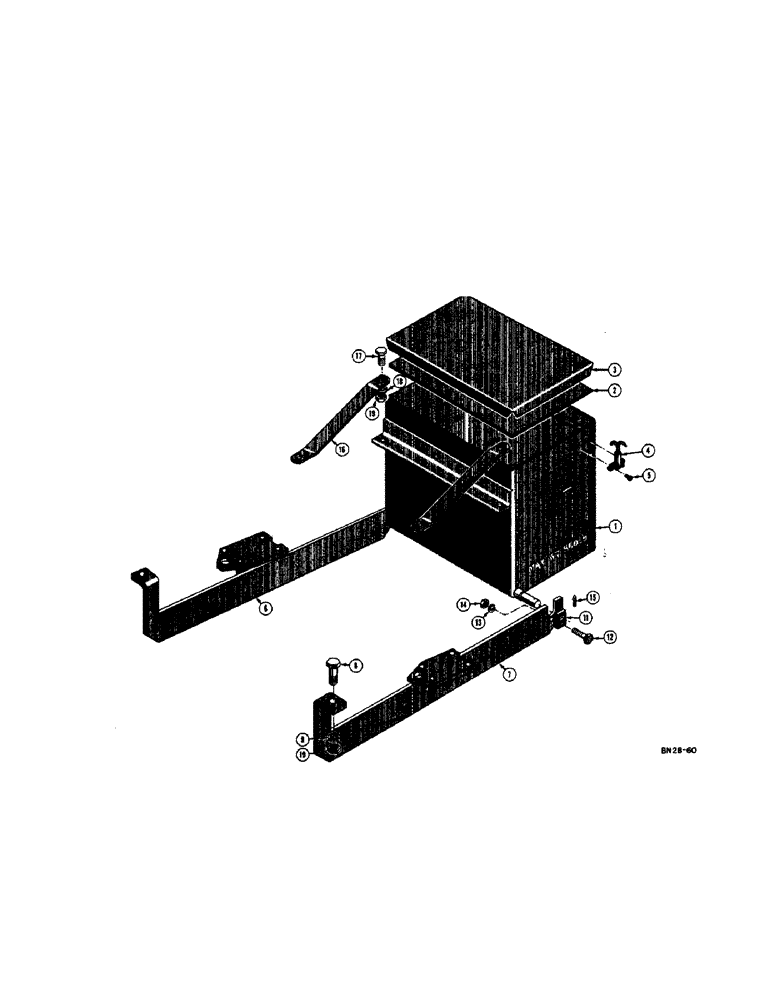

Запчасти Case 42 (12) - 900 POUND REAR WEIGHT BOX

1

D10270

BOX - weight, 900 lb., Inlcudes: Ref. 2 - 5

1шт.

2

D21183

SHELF - tool box

1шт.

3

D21182

LID - weight box

1шт.

4

O3771AB

X

CATCH - lid

2шт.

5

45-35

RIVET - button head (3/16" x 5/16")

4шт.

6

D26129

ARM - support, R.H.

1шт.

7

D26130

ARM - support, L.H.

1шт.

8

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

9

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

10

25-1012

NUT,3/4"-10, G5

2шт.

11

DR10733

STRAP - weight box

2шт.

12

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

13

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

14

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

15

132-148

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

16

D26123

STRAP - support, weight box

2шт.

17

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.

18

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

19

25-1012

NUT,3/4"-10, G5

2шт.
