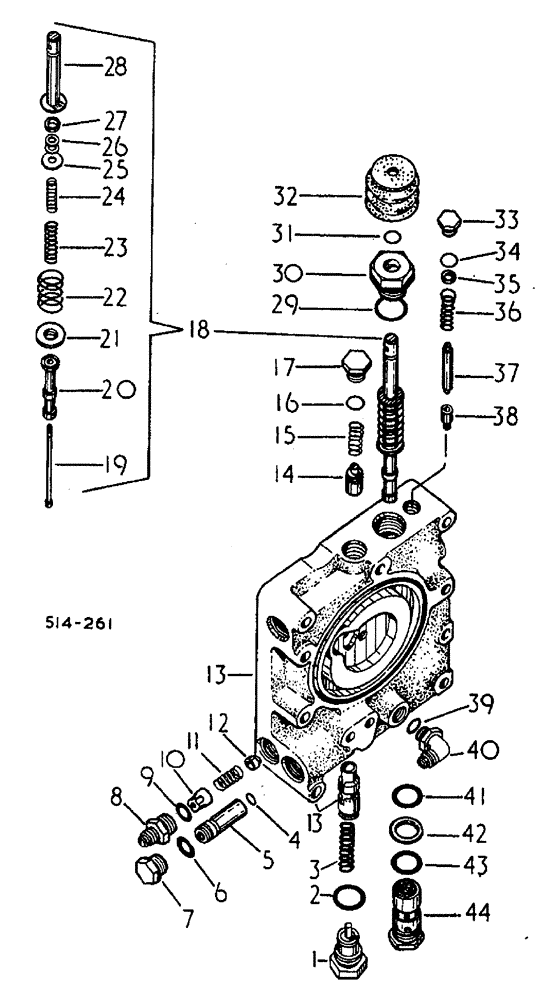

Запчасти Case 3400 (069) - MULTIPLE CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

405446R1

PLUG

ASSEMBLY, flow divider

1шт.

2

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

TUBE, 5/8 OD

1шт.

3

405448R1

SPRING

flow divider valve

1шт.

4

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 x 9/16 x 3/32

1шт.

5

546971R91

VALVE

SPARE PART ASSEMBLY, safety, 2500 PSI

1шт.

6

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

TUBE, 1/2 OD

1шт.

7

536855R1

PLUG

O RING boss STR THD

1шт.

8

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR, flared tube short reducer, ZND 37 DEC, 9/16-18

1шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

TUBE, 1/2 OD

1шт.

10

399870R1

RETAINER

retainer check valve spring

1шт.

11

399869R1

SPRING

VALVE check

1шт.

12

382304R1

CHECK VALVE

1шт.

13

405445R1

BODY ASSEMBLY, multiple control valve not serviced separately, furnish multiple control valve ASSEMBLY

1шт.

14

527482R1

VALVE,By-Pass

1шт.

15

382299R1

SPRING

VALVE by pass

1шт.

16

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

TUBE, 1/2 OD

1шт.

17

529492R1

PLUG

PLUG, cooler by pass

1шт.

18

530775R93

VALVE

ASSEMBLY, control consists of items 19-28 inclusive

1шт.

19

405454R2

PIN

control valve guide

1шт.

20

405452R1

CONTROL VALVE

VALVE control

1шт.

21

405453R1

RETAINER

IPTO VALVE

1шт.

22

530776R1

SPRING

VALVE, control

1шт.

23

381760R1

SPRING

VALVE, control light

1шт.

24

399878R1

SPRING

SPRING, control valve HV

1шт.

25

556980R1

WASHER

SPRING retainer

1шт.

26

369107R1

SNAP RING,#21, Ext

SHIM, control valve, 3 off or as required

1шт.

27

530778R1

RETAINER

PIN

1шт.

28

530777R2

STEM

STEM, control valve

1шт.

405456R1

PIN

HN, control valve dowel

1шт.

29

279459R1

O RING, tube, 7/8 OD

1шт.

30

530781R2

GUIDE

VALVE, control stem

1шт.

31

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32

1шт.

32

530780R1

BOOT

IPTO CONTROL DUST

1шт.

33

573983R1

PLUG

VALVE regulator

1шт.

34

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3/8 OD tube

1шт.

35

363454R1

WASHER,8.33mm ID x 12.3mm OD x 0.81mm Thk

spring retainer

1шт.

36

549850R1

SPRING

VALVE pressure reglo 00557/up

1шт.

36

399880R1

SPRING

VALVE pressure reglo up to/00556

1шт.

37

399881R1

PIN

VALVE pressure regulator

1шт.

38

399882R1

POPPET

POPPET pressure regulator

1шт.

39

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3/8 OD tube

1шт.

40

530052R1

NO LONGER SERVICED

VALVE CHECK ASSEMBLY

1шт.

41

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32

1шт.

42

378985R2

BACK-UP RING

back up

1шт.

43

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32

1шт.

44

378899R1

PLUG

SPARE PART relief valve chamber

1шт.
