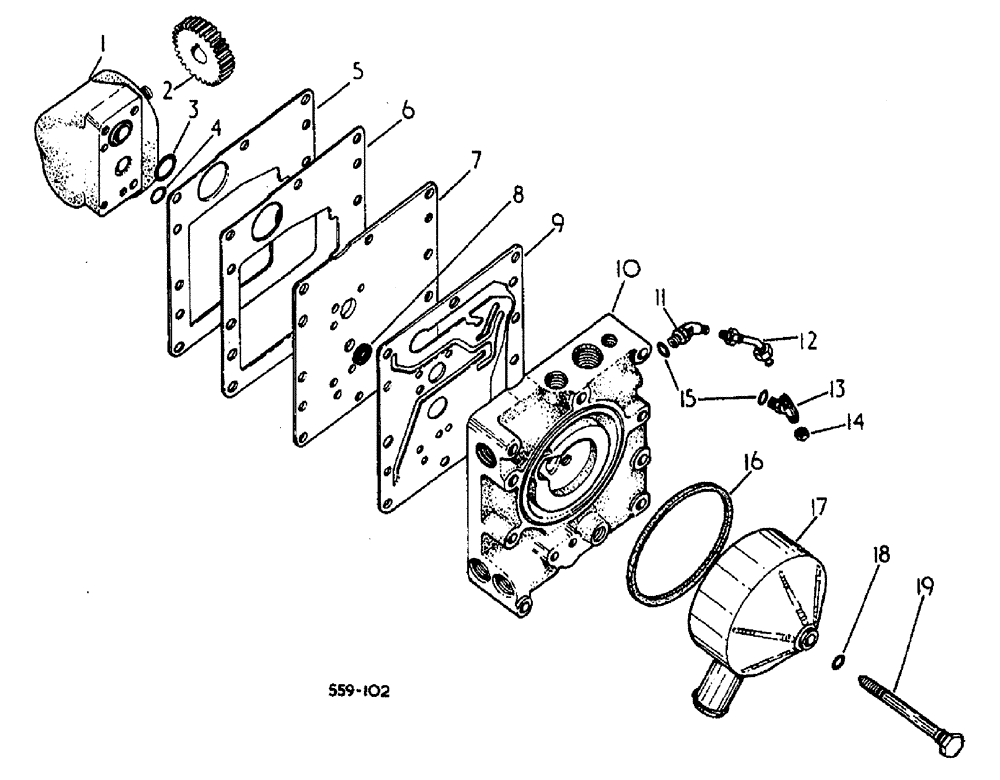

Запчасти Case 3400 (068) - MULTIPLE CONTROL VALVE AND CONNECTIONS (35) - HYDRAULIC SYSTEMS

1

406827R91

PUMP

ASSEMBLY, HYD gear for components, see list of parts under details of HYD gear pump

1шт.

1

84573150R

REMAN-HYD PUMP

3400 SERIES A INTERNATIONAL LOADER TRACTOR, ASSEMBLY, HYD gear, Reman for New PN 406827R91

1шт.

1

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

2шт.

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

2шт.

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

pump mounting bolt

4шт.

2

406764R1

PINION

gear HYD pump driven, 27T

1шт.

19258R1

LOCK NUT,1/2"-20, GB

1/2-20 ESSNA STOP

1шт.

3

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

pump suction port, 1-1/16 x 1-1/4 x 3/32

1шт.

4

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

pump suction port, 11/16 x 7/8 x 3/32

1шт.

5

401737R2

GASKET

VALVE multiple control, light

1шт.

6

401736R2

GASKET

GASKET, multiple control valve, HV

1шт.

7

546907R1

PLATE

VALVE, multiple control

1шт.

8

387926R2

RING

rectangular

1шт.

9

65000C1

GASKET

GASKET, multiple control valve

1шт.

10

546992R94

LOCK VALVE

ASSEMBLY, multiple control for components, see list of parts under details of multiple control

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

7шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

hex HD CAP, 3/8-16 x 3-1/2

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

hex HD CAP, 3/8-16 x 3-1/4

2шт.

103321

LOCK WASHER,3/8"

10шт.

11

9411102

ELBOW,45 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

UNION, flared tube short swivel tractor w/IPTO, 7/16-20 37 DEG HYD

1шт.

12

401738R1

TUBE

ASSEMBLY, IPTO pressure tractors w/IPTO

1шт.

13

9411115

TEE,7/16"-20, 37 Degree x 7/8"-14, O-Ring Br

TUBE flared, 7/16-20 C Z 37 DEG HYD

1шт.

14

9403369

CAP,37 Degree, 7/16"-20

TUBE, 7/16-20

1шт.

15

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 OD tube, Tractors with IPTO

2шт.

16

405462R1

GASKET,147.4mm ID x 154.51mm OD x 2.36mm Thk

Oil case

1шт.

17

68206C1

SHELL

CASE ASSEMBLY, hydraulic oil

1шт.

18

375271R1

O-RING,0.426" ID x 0.07" Width

1шт.

19

68205C1

SPARE PART FILTER ASSEMBLY mounting

1шт.
