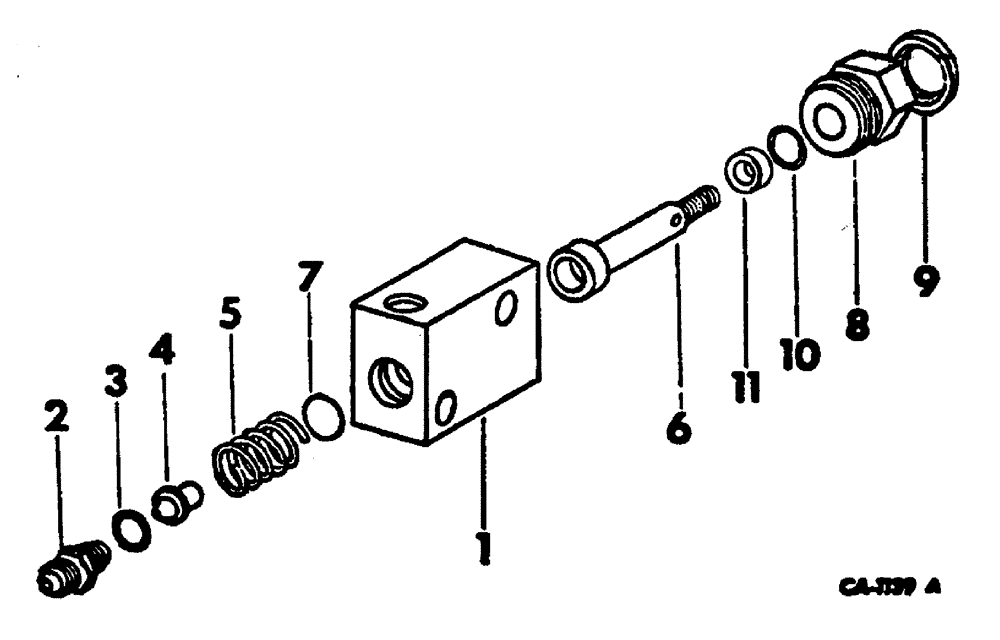

Запчасти Case 3400 (042) - FOOT-N- INCH AND DECELERATOR VALVE (35) - HYDRAULIC SYSTEMS

404211R91

VALVE

ASSEMBLY, decelerator

1шт.

1

BODY, valve not service separately, furnish valve ASSEMBLY

1шт.

2

398709R1

SEAT

VALVE, poppet

1шт.

3

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 OD tube

1шт.

4

398710R1

VALVE POPPET

1шт.

5

539751R1

SPRING

VALVE used with foot n inch valve

1шт.

5

398731R1

SPRING

VALVE used w/decelerator valve

1шт.

6

398708R1

STOP

VALVE

1шт.

8

398707R1

GUIDE

VALVE spring stop

1шт.

9

398701R91

OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk

oil OPT

1шт.

9

530101R91

OIL SEAL

oil

1шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

TUBE, 5/8 OD

1шт.

11

404212R1

SLEEVE

valve stop

1шт.
