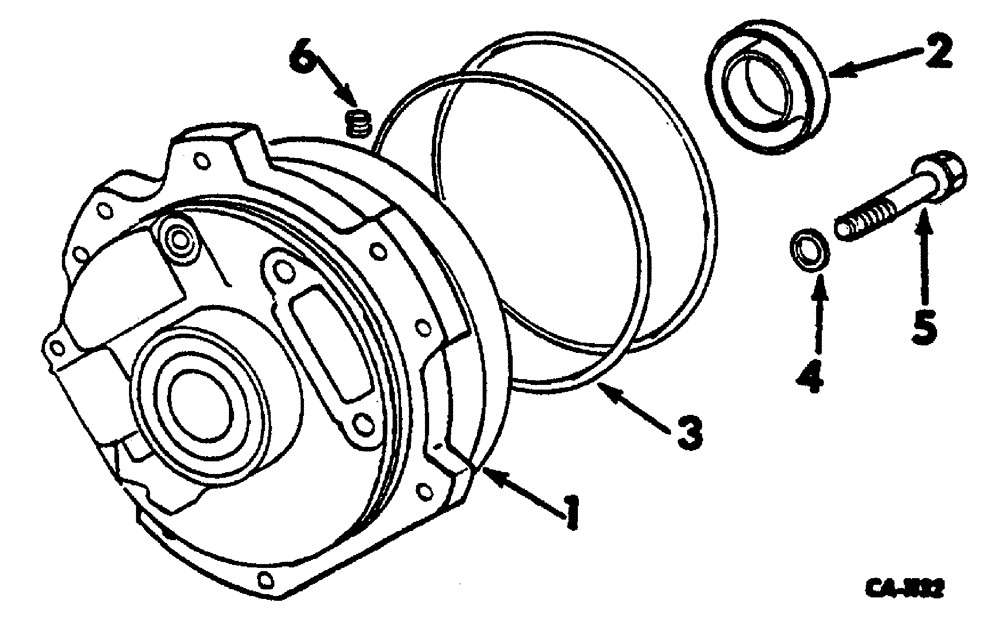

Запчасти Case 3400 (019) - HYDROSTATIC CHARGE PUMP (35) - HYDRAULIC SYSTEMS

1

401020R91

PUMP

PUMP ASSY, charge optional w/66454C91

1шт.

1

66454C91

PUMP, HYDRAULIC

ASSEMBLY, charge optional w/401020R91, consists of Ref. NOS 2 TO 6 and slipper pin kit

1шт.

2

405743R91

OIL SEAL

oil

1шт.

3

405172R1

RING

rectangular seal

2шт.

4

397439R1

WASHER

optional w/565832Rl

2шт.

4

565832R1

WASHER

optional w/397439Rl

2шт.

5

397440R1

12 PT SCREW,Flg, 3/8" - 16 x 1.88", Gr 5

WASHER hex HD

2шт.

6

397433R1

SPRING

SLIPPER

8шт.

537786R1

KIT

slipper pin consists of 8 STD PINS

1шт.
