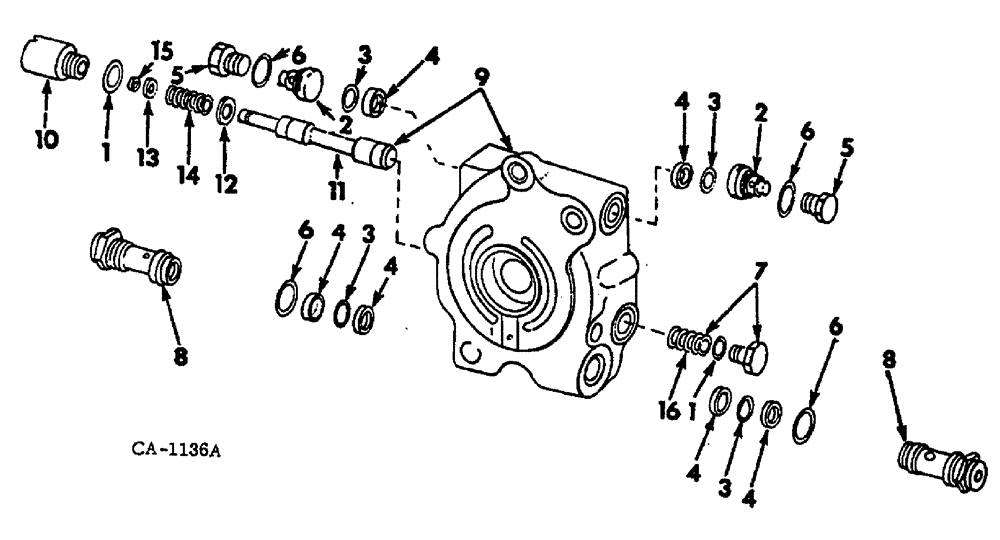

Запчасти Case 3400 (016) - CENTRE SECTION VALVE (35) - HYDRAULIC SYSTEMS

1

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

TUBE, 5/8 OD

2шт.

2

528778R1

CHECK VALVE

VALVE ASSEMBLY, check optional w/528345RI

2шт.

2

528345R1

CHECK VALVE

ASSEMBLY, check optional w/528778RI

2шт.

3

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

3/16 x 1 x 3/32

4шт.

4

393887R1

BACK-UP RING

6шт.

5

400988R1

PLUG

O RING boss, 1-3/16 - 12 STR THD

2шт.

6

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

TUBE, 7/8 OD

4шт.

7

533356R11

PLUG

ASSEMBLY, shuttle valve spring

1шт.

8

531770R1

VALVE

VALVE ASSEMBLY, relief

2шт.

9

400987R92

BODY

ASSEMBLY, centre section consists of: 1 body £ 2 o ring 364885Rl 2 plug £ 1 plug £ 1 plug 533

1шт.

10

396067R1

PLUG

shuttle valve spring retainer

1шт.

11

406379R1

VALVE

center section shuttle, code A

1шт.

11

406380R1

VALVE

center section shuttle, code B

1шт.

11

406381R1

VALVE

center section shuttle, code C

1шт.

11

406382R1

VALVE

center section shuttle, code D

1шт.

11

406383R1

VALVE

SPARE PART center section shuttle, code E

1шт.

11

406384R1

VALVE

center section shuttle, code F

1шт.

12

396063R1

WASHER

WASHER, shuttle valve inner

1шт.

13

396064R1

WASHER

WASHER, shuttle valve outer

1шт.

14

531079R1

SPRING

shuttle valve centering

1шт.

15

396066R1

SNAP RING,#46, .433", Ext

RING, shuttle valve snap

1шт.

16

533357R1

SPRING

shuttle valve centering

1шт.

393885R91

GASKET KIT

PACKAGE, relief valve seal consists of Ref. NOS 3.4 add 6

1шт.
