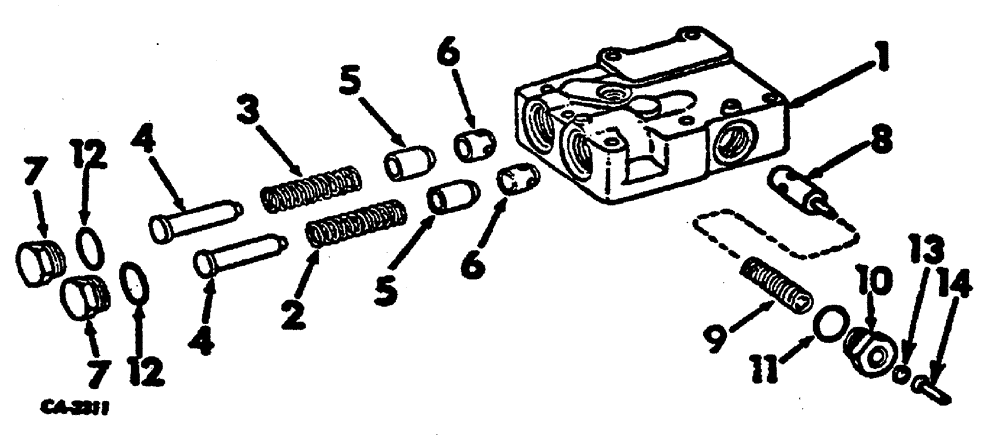

Запчасти Case 3400 (015) - MULTI VALVE (35) - HYDRAULIC SYSTEMS

1

401094R2

BODY

1шт.

2

396128R1

SPRING

VALVE poppet, HP

1шт.

3

396129R1

SPRING

VALVE poppet, LT

1шт.

4

396130R2

PIN

VALVE poppet, piston

2шт.

5

396131R2

VALVE

poppet

2шт.

6

396132R1

BUSHING

VALVE poppet

2шт.

1

396133R1

PLUG

valve retaining

2шт.

8

529318R1

VALVE

cooler by pass

1шт.

9

529319R1

SPRING

cooler by pass

1шт.

10

535151R1

PLUG

SPARE PART cooler by pass valve

1шт.

11

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

TUBE, cooler by pass valve plug, 3/4 OD

1шт.

12

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

TUBE, valve retaining plug, 7/8 OD

2шт.

13

535152R91

WIPER SEAL

1шт.

14

535153R1

PIN

pressure check

1шт.
