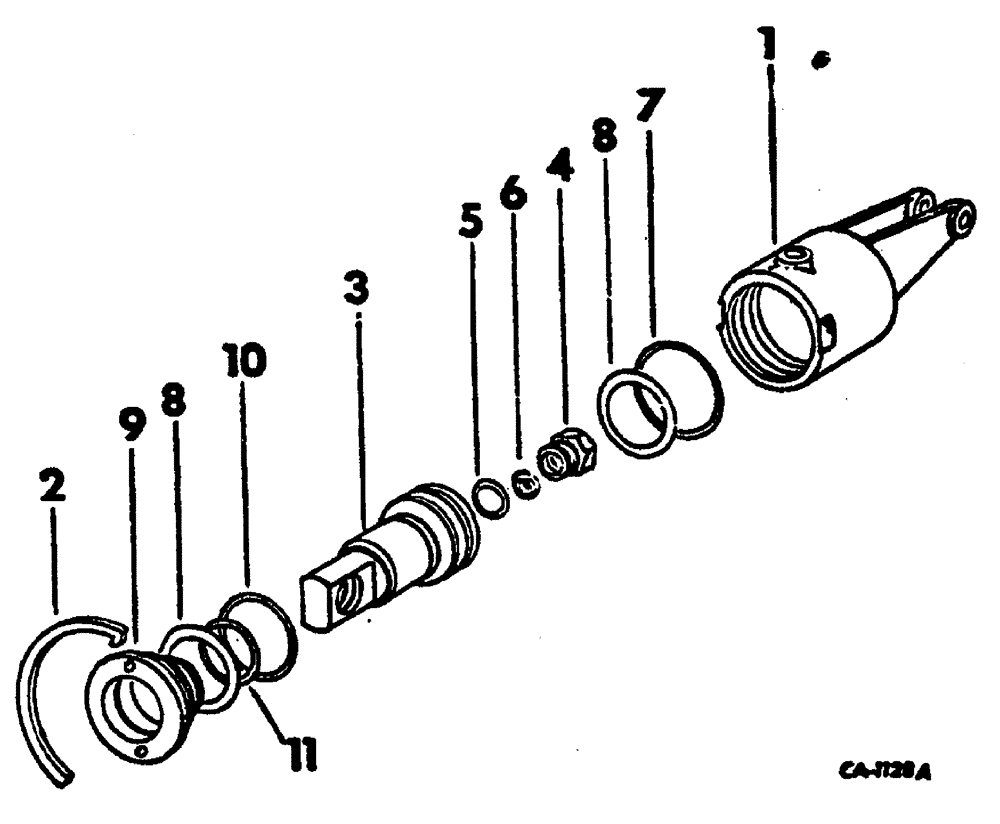

Запчасти Case 3400 (013) - MOTOR SERVO CYLINDER (35) - HYDRAULIC SYSTEMS

1

401089R1

BODY

CYLINDER

1шт.

2

396106R1

ELECTRICAL WIRE

WIRE retaining

1шт.

3

401090R1

PISTON

1шт.

4

531285R91

PLUG

ASSEMBLY, fixed orifice

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

TUBE, fixed orifice, 5/8 OD

1шт.

6

529376R1

STRAINER ELEMENT

1шт.

7

396103R1

OLIVE

RING, piston sealing

1шт.

8

382781R1

O-RING,1.737" ID x 0.103" Width

piston sealing, 1-3/4 x 1-15/16 x 3/32

2шт.

9

401091R1

GUIDE

SPARE PART piston

1шт.

10

384498R1

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

piston guide, 1-15/16 x 2-1/8 x 3/32

1шт.

11

401092R1

RING

guide sealing inner

1шт.

401093R91

PACKAGE

motor servo cylinder o ring and seal service consists of £ 2. ring 396103Rl £ 2 o ring 382781R1 £ 1 o ring 364885R1 £ 1 ring 401092R1 £ 2 sleeve 134630H1 £ 1 o ring 384498R1 £ 1 o ring 364885R1 £ 1 ring 396109R1

1шт.
