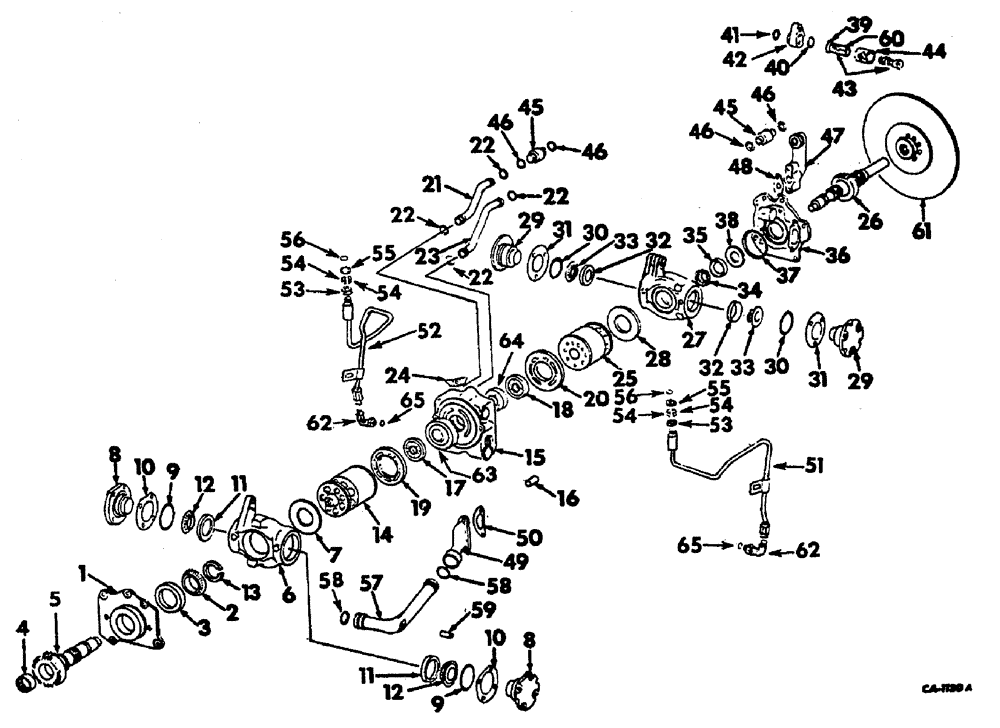

Запчасти Case 3400 (011) - HYDROSTATIC DRIVE SHAFTS, MONTOR ASSYS, CENTRE SECTION AND RELATED PARTS (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
400958R1
BEARING HOUSING,2.65" ID x 4.374" OD
rearbearing
1шт.
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
5шт.
2
400960R91
ROLLER BEARING,1.7505" ID x 3.4375" OD x 1.1875, 0.9375"
ASSEMBLY output shaft rear cone
1шт.
3
PO14039
BEARING
output shaft cup
1шт.
4
613639C91
NEEDLE BEARING,38.09mm ID x 47.65mm OD x 25.4mm W
main shaft needle 000562/up
1шт.
4
572181R91
NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W
main shaft needle up to/000561
1шт.
5
65259C1
SHAFT
SPARE PART output, 000562/up
1шт.
66014C1
SNAP RING
front needle shaft INT
1шт.
5
400962R1
SHAFT, output up to/OQ0561
1шт.
6
400963R1
HOUSING
SPARE PART PLATE, motor swash
1шт.
7
400965R1
THRUST PLATE
PLATE, thrust
1шт.
8
400966R1
TRUNNION
MOTOR
2шт.
297330R1
BOLT
SCREW, hex HD, w/nylon insert
8шт.
9
295204R1
O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro
2-13/16 x 3 x 3/32
2шт.
10
400967R91
SHIM KIT
PACKAGE, motor trunnion ship service consists of $1 shim .005400968R1 $2 shim .007400969R1 $1 SH
1шт.
11
62923R91
ROLLER BEARING
ASSEMBLY, motor trunnion cone
2шт.
12
130503H
BEARING CUP
CUP, motor trunnion
2шт.
13
400971R1
RING, SNAP
RING SNAP bearing retaining .136
1шт.
13
400972R1
RING, SNAP
RING SNAP bearing retaining .141
1шт.
13
400973R1
RING, SNAP
RING SNAP bearing retaining .146
1шт.
13
400974R1
RING, SNAP
RING SNAP bearing retaining .151
1шт.
13
400975R1
RING, SNAP
RING SNAP bearing retaining .156
1шт.
13
400976R1
RING, SNAP
RING SNAP bearing retaining .163
1шт.
13
400977R1
RING, SNAP
RING SNAP bearing retaining .166
1шт.
13
400978R1
RING, SNAP
RING SNAP bearing retaining .171
1шт.
13
400979R1
RING, SNAP
RING SNAP bearing retaining .176
1шт.
13
400980R1
RING, SNAP
RING SNAP bearing retaining .181
1шт.
13
400981R1
RING, SNAP
RING SNAP bearing retaining .186
1шт.
14
KIT, motor cylinder block for components, see list of parts under details of motor cylinder block
1шт.
15
BODY ASSEMBLY, center section for components, see use of parts under details of center section body
1шт.
400986R1
BOLT,Hex, 1/2" - 13 x 1.62"
hex HD CA, 1/2-13 x 1-5/16
2шт.
16
394825R1
DOWEL
PIN, center section
2шт.
17
400983R91
ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"
ASSEMBLY, output shaft, front cone
1шт.
18
400990R91
ROLLER BEARING,0.75" ID x 2.125" OD x 0.775"
ASSEMBLY, input shaft rear cone
1шт.
19
530773R1
PLATE
VALVE motor
1шт.
20
530766R1
PLATE
VALVE pump R. H.
1шт.
21
400994R1
TUBE ASSY.
center section charge
1шт.
22
384943R1
O-RING,0.739" ID x 0.07" Width
4шт.
23
400998R1
TUBE ASSY.
center section exhaust
1шт.
24
401000R1
STRIP
RETAINER pipe center section
1шт.
13-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd
1шт.
25
KIT, pump cylinder block, for components. see list of parts under details of pump cylinder block
1шт.
26
401009R1
SHAFT
input
1шт.
27
401011R1
HOUSING
PLATE pump swash
1шт.
28
596335R1
THRUST PLATE
PLATE, thrust
1шт.
29
401012R1
TRUNNION
PUMP
2шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
6шт.
30
384377R1
O-RING,0.103" Thk x 2.55" ID, -141, Cl 6, 90 Duro
O 2-5/16 x 2-1/2 x 3/32
2шт.
31
401018R91
SHIM KIT
PACKAGE, pump trunnion shim service consists of £ 1 shim .005401013Rl £ 2 shim .007
1шт.
32
50212VA
ROLLER BEARING,33.35mm ID x 24.01mm W
ASSEMBLY, pump trunnion cone
2шт.
33
527486R1
BEARING, CUP
CUP, pump trunnion
2шт.
34
459454R91
ROLLER BEARING,1.563" ID x 1.01"
ASSEMBLY, input shaft front cone
1шт.
35
567849R1
BEARING CUP,1.5625" ID x 3" OD x 1.01"
CUP, input shaft front
1шт.
36
401020R91
PUMP
PUMP, transmission charge, for components, see list of parts under details of transmission charge
1шт.
297330R1
BOLT
SCREW, hex HD nylon, 3/8-16 x 1
5шт.
37
343943R1
O-RING,6.234" ID x 0.139" Width
6-1/4 x 6-1/2 x 1/8
1шт.
38
401021R91
SHIM KIT
PACKAGE, input shaft front bearing shim consists of £1 shim .005401022Rl £ 2 shim .007401023Rl £ 1 shim .020401024RI
1шт.
39
297459R1
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
TUBE, 7/8 OD
1шт.
40
128359
O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro
5/8 x 3/4 x 1/16
1шт.
41
388591R1
RING
valve housing sealing
1шт.
42
405194R1
HOUSING
servo regulator valve
1шт.
43
529486R91
VALVE
ASSEMBLY, pressure regulator
1шт.
44
396100R1
STRAINER ELEMENT
SCREEN, regulator valve
1шт.
45
401026R1
TUBE
JUMPER charge
1шт.
46
384943R1
O-RING,0.739" ID x 0.07" Width
Charge Jumper Tube
2шт.
47
401027R1
MANIFOLD
PUMP, charge
1шт.
48
401028R1
GASKET
PUMP charge, manifold
1шт.
186284
BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5
SCREW, hex HD CAP, 3/8-16 x 3-3/4
2шт.
565832R1
WASHER
copper, 13/32 x 5/8 x .049
4шт.
280161
BOLT,Hex, 3/8" - 16 x 3", Gr 5
2шт.
49
401032R1
ELBOW
suction pipe
1шт.
50
401033R1
GASKET
ELBOW, suction pipe
1шт.
51
401005R1
TUBE
TUBE ASSEMBLY, reserve pressure
1шт.
13-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd
1шт.
95-11034
WASHER,1/4"
flat, 11/32 x 11/16 x .065
1шт.
52
401001R1
TUBE
TUBE ASSEMBLY, forward pressure
1шт.
13-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd
1шт.
95-11034
WASHER,1/4"
11/32 x 11/16 x .065 FLAT
1шт.
53
402864R1
RETAINER
TUBE LOCK
2шт.
54
402865R1
LOCK
TUBE
2шт.
55
401017R1
RING
back up
2шт.
56
384937R1
O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro
1/4 x 3/8 x 1/16
2шт.
57
401074R1
TUBE ASSY.
SPARE PART suction
1шт.
277677R1
LOCK SCREW
w/nylon pellet insert, hex HD CAP, 3/8-16 x 1-5/8
1шт.
58
360610R1
O-RING,1.609" ID x 0.139" Width
1-5/8 x 1-7/8 x 1/8
2шт.
59
401077R1
BUSHING
suction pipe support
1шт.
60
529487R1
STRAINER ELEMENT
REGULATOR VALVE
1шт.
61
404078R91
PLATE ASSY.
drive
1шт.
324711R1
BOLT
SCREW, w/nylon pellet insert, hex HD CAP, 5/16-18 x 3/4
6шт.
62
9410974
ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring
TUBE flared, DEG HYD, 7/16-20 37, 90 DEG
2шт.
63
530741R1
BEARING CUP
output shaft front cup
1шт.
64
537188R1
ROLLER BEARING,0.75" ID x 2.125" OD x 0.875"
input shaft rear cup
1шт.
65126C91
FILTER, ELEMENT
ELEMENT, FILTER PACKAGE, service
1шт.
65
369751R1
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1/4 OD tube
2шт.
Выбрано товаров: 97
