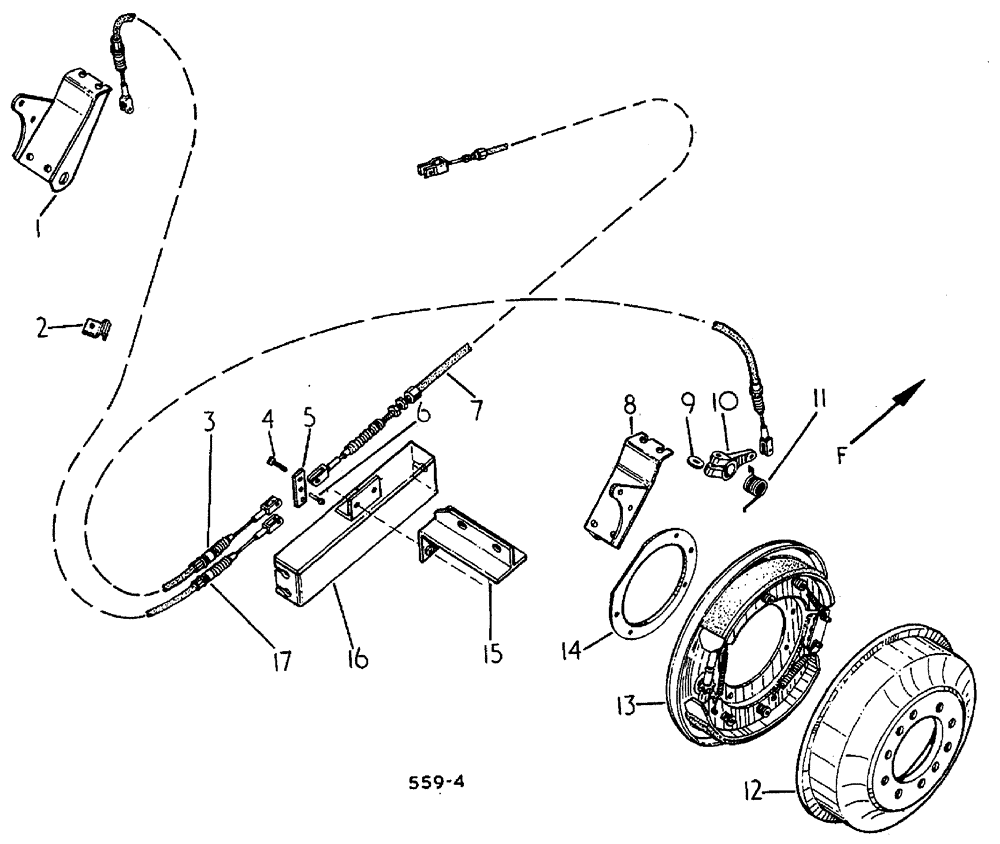

Запчасти Case 3400 (004) - HAND OPERATED DRUM BRAKE ATTACHMENT (33) - BRAKES & CONTROLS

1

528457R1

SPARE PART ASSEMBLY, cam and cable anchor L. H.

1шт.

2

528477R1

CLAMP

CABLE brake

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

3

3113419R91

CABLE

ASSEMBLY, brake actuating R. H.

1шт.

4

3068512R1

PIN

LINK

4шт.

107762

WASHER,3/32" x 5/8"

4шт.

5

3068522R1

SPARE PART compenstator

1шт.

6

3068523R1

PIN

LINK

1шт.

107762

WASHER,3/32" x 5/8"

1шт.

7

3113420R91

CABLE

ASSEMBLY, brake

1шт.

117966

GROMMET,5/8" ID x 1 11/64" x .188"

rubber

1шт.

8

528458R1

SPARE PART ASSEMBLY, cam and cable anchor R. H.

1шт.

9

3068530R1

KEY

brake lever

2шт.

10

3068513R1

LEVER

CAMSHAFT

2шт.

102635

NUT,3/8"-16, G5

2шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

11

3068514R1

SPRING

actuating cable return L. H.

1шт.

11

3068515R1

SPRING

actuating cable return R. H.

1шт.

12

528487R1

DRUM

BRAKE

2шт.

13

3068536R91

DRUM BRAKE ASSY

ASSEMBLY, 14 x 2 DAFC brake, for components see list of parts under details of brake drum

2шт.

271501

SOCKET

hex, 7/16-14 C Z

10шт.

180148

SCREW,Hex, 7/16" - 14 x 1 3/8"

hex, 7/16-14 x 1-3/8 ZN PLTD HD

6шт.

180150

BOLT,Hex, 7/16" - 14 x 1 5/8"

SCREW, hex HD cap, 7/16-14 x 1-5/8 ZN PLTD

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

10шт.

14

3069199R1

SHIM

SPARE PART PLATE brake back

2шт.

15

3113415R1

SUPPORT ASSEMBLY, reaction bracket

1шт.

16

3113411R1

BRACKET ASSEMBLY, reaction

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

17

528447R91

CABLE

ASSEMBLY, BRAKE actuating R. H. (acting L. H.)

1шт.
