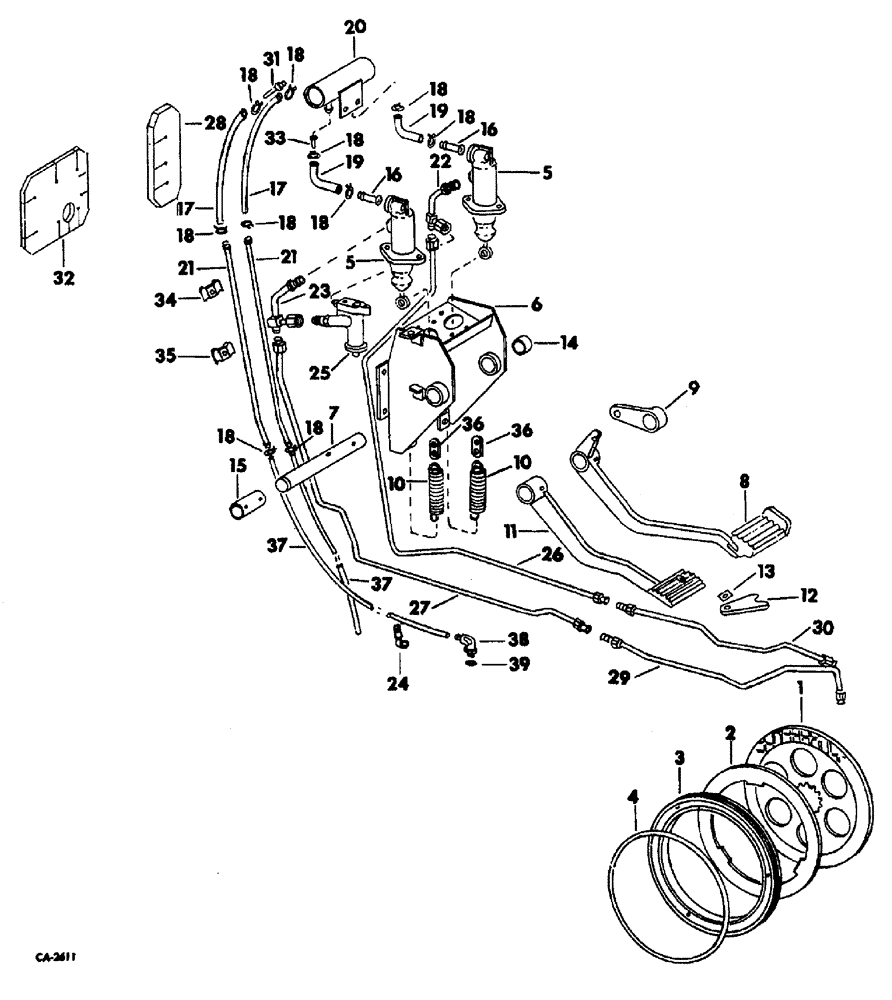

Запчасти Case 3400 (001) - BRAKES (33) - BRAKES & CONTROLS

1

399734R1

NO LONGER SERVICED

DISC, brake center

2шт.

2

399736R1

RING

RING, brake

2шт.

3

399737R1

NO LONGER SERVICED

PISTON, brake

2шт.

4

343932R1

O-RING,0.139" Thk x 9.984" ID, -274, Cl 6, 90 Duro

10 x 10-1/4 x 1/8

2шт.

5

527542R91

CYLINDER

CYLINDER ASSEMBLY, brake master

2шт.

6

539135R93

SPARE PART MOUNT ASSEMBLY, brake

1шт.

535183R2

SELF-TAP SCREW

WASHER, 5/16-18 x 3/4 HD CAP

4шт.

7

536254R2

SHAFT

PEDAL support

1шт.

8

399741R2

PEDAL

PEDAL R. H. brake

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1 3/4", Coiled

1шт.

9

529858R1

ARM

SPARE PART R. H. brake pedal

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

5/16" x 1 1/2", Coiled

1шт.

10

539150R1

SPRING

SPARE PART pedal return

2шт.

399744R1

BOLT

BOLT, brake pedal adjusting

2шт.

11

536251R21

PEDAL

ASSEMBLY, L.H. BRAKE, consists of Ref NOS. 12 and 13

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

PTF

1шт.

12

43751DB

LATCH, PEDALS

PLATE, brake lock

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

small, B HD SOLID, 1/4 x 1-1/4

1шт.

13

51293D

SPRING

brake pedal lock tension

1шт.

14

539245R1

BUSHING

brake mount

1шт.

15

537099R1

NO LONGER SERVICED

BUSHING

1шт.

16

539145R1

SPARE PART INLET master CYL

2шт.

537849R2

SCREEN

brake

2шт.

17

539149R1

HOSE

RESERVOIR, inlet & outlet

2шт.

18

215761R1

HOSE CLAMP,#9, 9/16", Spring

No. 9 HOSE

8шт.

19

539147R2

HYDRAULIC HOSE,0.31" ID x 3.00"

Reservoir to Master Cylinder

2шт.

20

539130R2

SPARE PART

RESERVOIR ASSEMBLY

1шт.

535183R2

SELF-TAP SCREW

WASHER, HD CAP, 5/16-18 x 3/4

2шт.

21

536270R1

TUBE

supply

2шт.

22

539142R1

SPARE PART

TUBE ASSEMBLY, R. H. master cyl outlet

1шт.

23

539141R1

SPARE PART

TUBE ASSEMBLY, L. H. master cyl outlet

1шт.

24

370820R1

CLIP

CABLE, twisted

1шт.

25

536143R91

VALVE

ASSEMBLY, equalizer

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

hex, HD CAP, 1/4-20 x 3/4

2шт.

103319

LOCK WASHER,1/4"

2шт.

26

537156R1

SPARE PART ASSEMBLY, brake inlet R. H. front

1шт.

27

537158R1

SPARE PART ASSEMBLY, brake inlet L. H. front

1шт.

28

537631R1

SPARE PART loader controls

1шт.

29

537160R1

TUBE ASSEMBLY, L. H. brake rear

1шт.

30

537161R1

TUBE

ASSEMBLY, R. H. brake rear

1шт.

31

537518R1

SCREEN

ORIFICE & ASSEMBLY, brake

1шт.

32

537632R3

GASKET

TUBES brake

1шт.

33

not used

1шт.

34

327709R1

CLAMP

manifold

1шт.

18655R1

BOLT,Hex, 1/4"-20 x 1", G2

SCREW hex, HD CAP, 1/4-20 x 1

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

35

327709R1

CLAMP

CABLE, clip, connector

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

36

539151R1

CLIP

brake spring mounting

2шт.

120369

NUT,3/8"-24, G5

2шт.

120394

WASHER,3/8", SAE

13/32 x 13/16 x .051 C Z

2шт.

181608

BOLT,Hex, 5/16" - 24 x 1", Gr 5

SCREW hex, HD CAP, 5/16-24 x 1 ZND

4шт.

80681

LOCK WASHER,5/16"

4шт.

120368

NUT,5/16"-24, G5

4шт.

37

537153R1

HOSE

brake returns

2шт.

TRACTORS 1 used hydrostatic drive

1шт.

37

537154R1

HOSE

TRACTORS hydrostatic drive, brake return

1шт.

38

9410975

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, O-Ring

TRACTORS hydrostatic drive, flared, 1/2-20 37 DEG, 90 DEG ADJ

1шт.

68343C1

PACKAGE, equalizer valve o ring and seal service

1шт.

39

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

Tractors hydrostatic drive, 5/16 OD tube

1шт.
