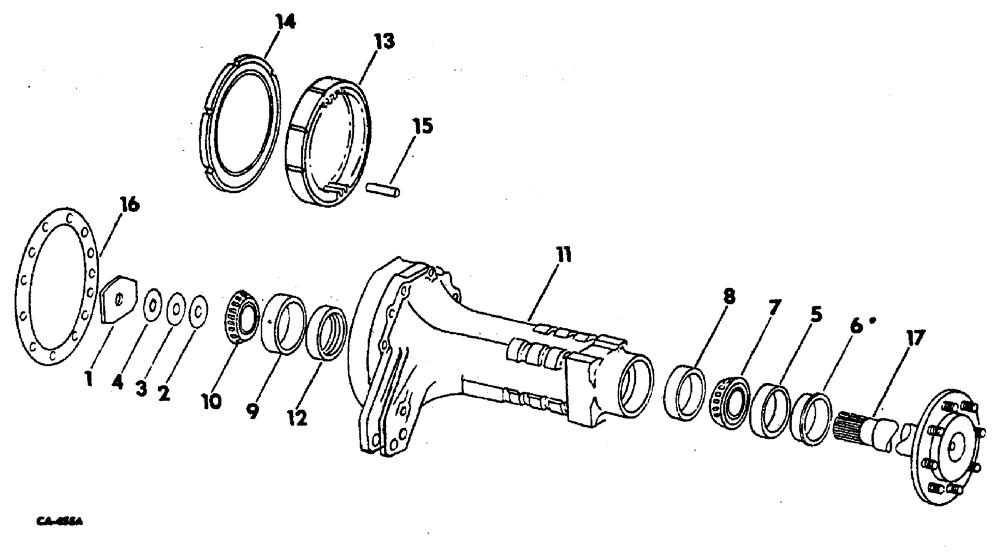

Запчасти Case 3400 (030) - REAR AXLE, CARRIER AND CONNECTIONS (27) - REAR AXLE SYSTEM

1

399748R1

SPACER

planet carrier retainer

2шт.

20668R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

hex HD CAP, 5/8-18 x 1-1/2

2шт.

2

SHIM, rear axle .007, order package 65422Cl

1шт.

3

SHIM, rear axle .012, order package 65422Cl

1шт.

4

SHIM, rear axle .0299, order package 65422Cl

1шт.

5

399752R91

NO LONGER SERVICED

SEAL, rear axle outer oil, OPT

2шт.

5

530106R93

SEAL

rear axle outer oil

2шт.

6

399754R1

SLEEVE

SLEEVE, wear

2шт.

7

ST2001A

BEARING ASSY,2.688" ID x 4.3317" OD x 0.88"

ASSEMBLY, rear axle outer

2шт.

1

102161H

BEARING ASSY,68.262mm ID x 21.996mm

rear axle outer OPT

2шт.

1

399757R91

BEARING

rear axle outer cone

2шт.

8

13390D

ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"

rear axle outer cup

2шт.

8

29214H

BEARING CUP,110mm OD x 18.82mm W

rear axle outer cup OPT

2шт.

8

94366R1

BEARING CUP

BEARING, rear axle outer cup

2шт.

9

29214H

BEARING CUP,110mm OD x 18.82mm W

rear axle inner optional w/94366RI

2шт.

9

94366R1

BEARING CUP

BEARING, rear axle inner cup optional w/29214 H

2шт.

10

298197R91

BEARING ASSY,63.5 mm ID x 21.996 mm

ASSEMBLY, rear axle cone OPT

2шт.

10

298198R91

BEARING

ASSEMBLY, rear axle inner cone

2шт.

11

399758R1

AXLE CARRIER

CARRIER, rear axle L. H.

2шт.

11

528442R1

SPARE PART

CARRIER, rear axle L. H. for tractors w/hand operated drum brake

1шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, hex HD CAP 5/8-11 x 4, Course Threads

11шт.

11

399761R1

AXLE CARRIER

CARRIER, rear axle R. H.

1шт.

11

528443R1

AXLE CARRIER

CARRIER, rear axle R. H. for tractors w/hand operated drum brake

1шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, hex HD CAP 5/8-11 x 4, Course Threads

11шт.

12

380200R92

OIL SEAL

rear axle inner oil OPT

2шт.

12

530094R91

SEAL

SEAL, rear axle inner oil

2шт.

13

535316R1

GEAR, RING

RING, GEAR 66T

2шт.

14

399760R1

RING

RING, brake outer disc

2шт.

15

529685R1

DOWEL

dowel, 3/8 x 2-1/4

6шт.

16

399762R1

GASKET

GASKET, rear axle carrier

2шт.

17

404340R13

SPARE PART

AXLE ASSEMBLY, rear

2шт.

17

528439R11

SPARE PART

AXLE ASSEMBLY, rear for tractors w/hand operated drum brake

2шт.

404341R3

BOLT,5/8" - 18 x 1.93", Full Thd

BOLT, rear wheel

16шт.

3047575R2

NUT,Wheel, 5/8"-18

rear wheel

16шт.

528440R1

BOLT

BOLT, rear wheel

16шт.

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

5/16-18 x 1 ST F HD MACH for tractors w/hand operated drum brake

4шт.

65422C1

SHIM KIT

PACKAGE, rear axle retaining service

1шт.
