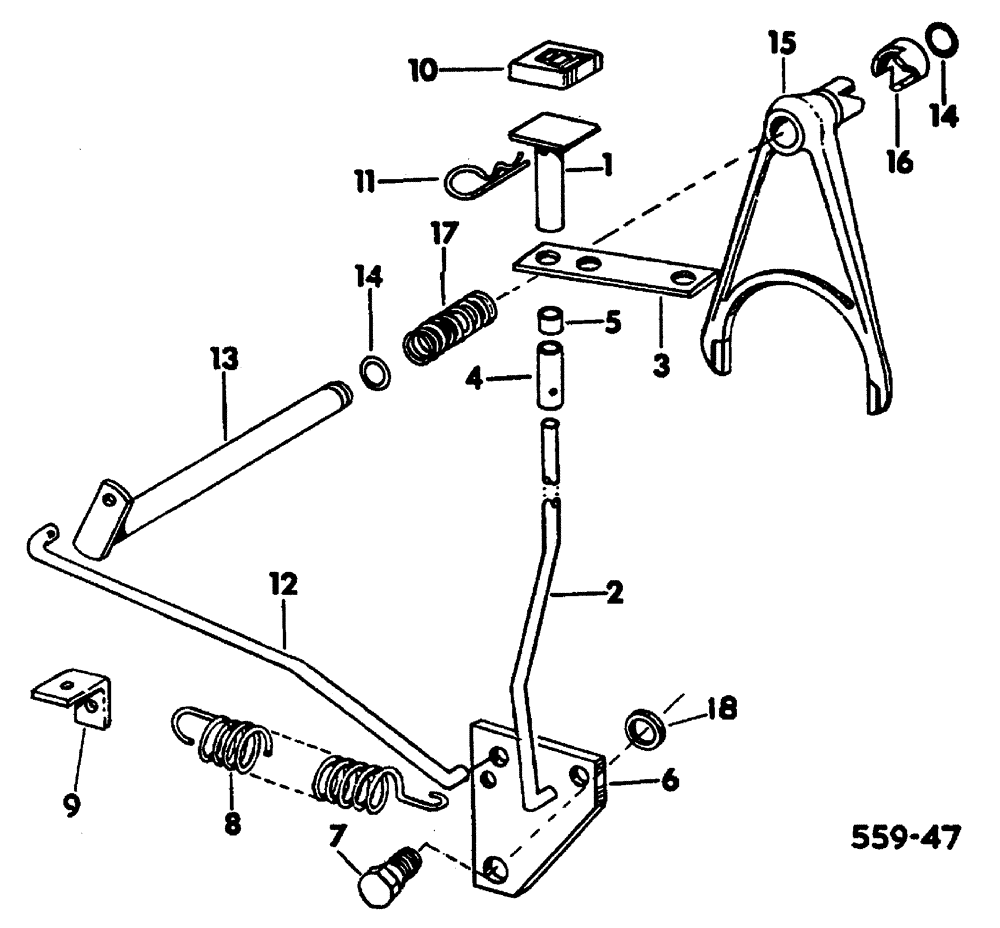

Запчасти Case 3400 (029) - DIFFERENTIAL LOCK (27) - REAR AXLE SYSTEM

1

536913R1

SPARE PART ASSEMBLY, differential lock

1шт.

2

536915R1

ROD

differential lock pedal

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

120394

WASHER,3/8", SAE

13/32 x 13/16 x .051

1шт.

3

536916R1

GUIDE, differential lock pedal

1шт.

4

536917R1

STOP

differential lock pedal

1шт.

5

536918R1

SPACER

differential lock

1шт.

6

536919R1

PLATE

differential lock pivot

1шт.

7

536920R1

SPARE PART

BOLT, differential lock pivol

1шт.

8

52635R1

SPRING

pedal return

1шт.

9

668082R1

ANCHOR

trip spring

1шт.

10

237672R1

PAD

differential lock pedal

1шт.

11

473443R1

COTTER PIN

quick attachable COT

1шт.

12

536925R1

ROD

differential lock

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

120394

WASHER,3/8", SAE

13/32 x 13/16 x . 051

2шт.

13

527871R1

SHAFT ASSY.

ASSEMBLY, differential lock

1шт.

14

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32

2шт.

15

527874R3

FORK

ASSEMBLY, differential lock shaft

1шт.

16

527877R1

CAM

differential lock shaft

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

17

527878R1

SPRING

differential lock fork actuating

1шт.

18

551174R1

WASHER

19/32 x 1-1/4 x 11 GA

1шт.
