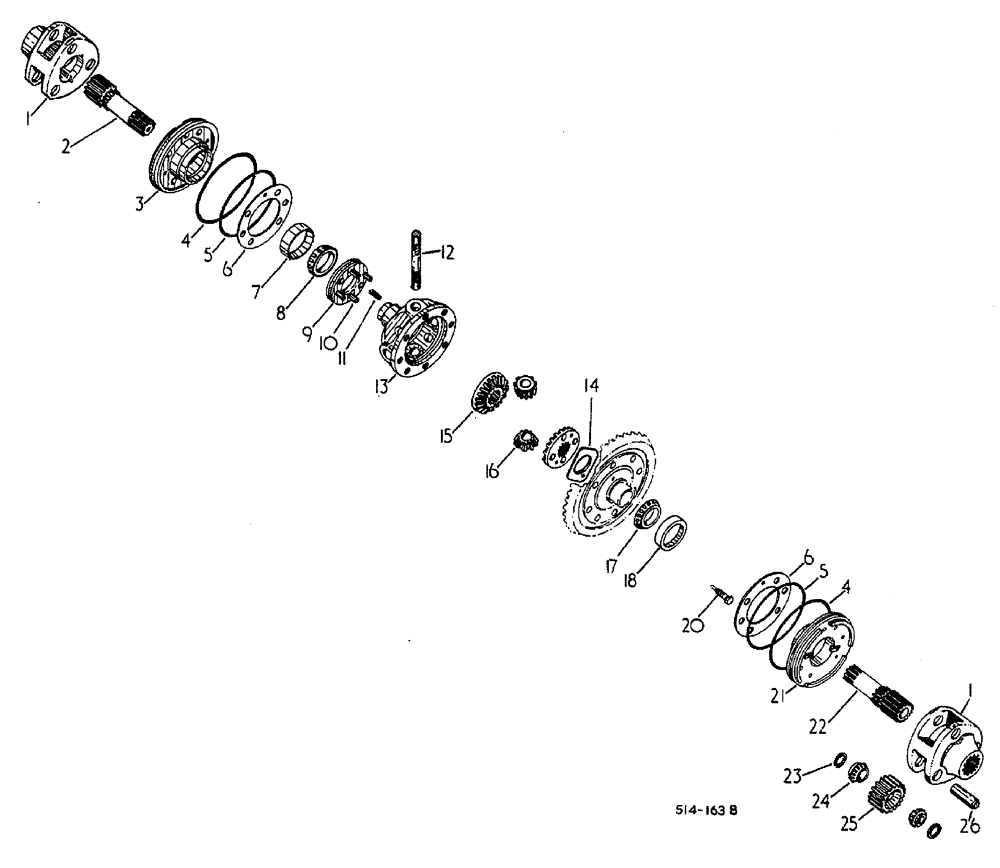

Запчасти Case 3400 (028) - DIFFERENTIAL AND CONNECTIONS (27) - REAR AXLE SYSTEM

1

404339R2

NO LONGER SERVICED

CARRIER, planet gear

2шт.

2

404338R1

SHAFT

planetary drive R. H.

1шт.

3

399770R1

BEARING CARRIER

CARRIER, differential BRG RH

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

4

271472R1

O RING, 8-1/4 x 8-1/2 x 1/8 differential BRG carrier

2шт.

5

289506R1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

7-1/2 x 7-7/8 x 3/16 differential BRG carrier seal

1шт.

6

SHIM, differential BRG carrier .003

2шт.

6

SHIM, differential BRG carrier .007

2шт.

6

SHIM, differential BRG carrier .012

2шт.

6

SHIM, differential BRG carrier .0229 order package 65419C1

2шт.

7

105497H

BEARING CUP,96.85mm OD x 15.77mm W

differential cup R. H.

1шт.

8

52843V

BEARING ASSY,57.15mm ID x 22.05mm W

ASSEMBLY, differential cone R. H.

1шт.

9

399764R11

LOCKING RING

ASSEMBLY, differential lock

1шт.

10

399765R1

PIN

coupling

4шт.

11

400867R1

SPRING

differential lock

2шт.

12

399775R1

SHAFT

differential pinion

1шт.

13

399763R1

PINION CARRIER

GEAR CARRIER differential

1шт.

14

399778R1

THRUST WASHER

differential bevel gear thrust

1шт.

15

404336R1

PINION

GEAR differential bevel, 20T

2шт.

16

399776R1

PINION

GEAR differential, 10T

2шт.

17

105503H

ROLLER BEARING,57.15mm ID x 24.61mm W

ASSEMBLY, differential cone L. H.

1шт.

18

105496H

BEARING CUP,97.63mm OD x 19.45mm W

ASSEMBLY, differential cup L. H.

1шт.

19

not used

1шт.

20

399779R1

BOLT

Dowel, 1/2-13 x 2-1/8

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1-1/2 x 1/2 grade 8

7шт.

21

399769R1

BEARING CARRIER

CARRIER, differential BRG L. H.

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1-1/2 x 1/2 grade 8

4шт.

22

404337R1

SHAFT

planetary drive L. H.

1шт.

23

SHIM planet gear, .042

1шт.

23

SHIM planet gear, .049

1шт.

23

SHIM planet gear, .056 order package 65420Cl

1шт.

24

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

ASSEMBLY, planet gear cone

12шт.

25

535909R91

GEAR WHEEL

PACKAGE, planet service consists of 3

2шт.

26

399788R1

PIN

planet shaft

6шт.

19723R1

PIN,5/16" x 1 1/8", Coiled

6шт.

65419C1

BEARING CARRIER

PACKAGE, differential BRG carrier shim service

1шт.

65420C1

SHIM KIT

PACKAGE, planet gear service

1шт.

65255C1

GEAR SET

gears bevel matched 14/51T, 000562 up, consists of : 1 gear £ 1 shaft £

1шт.

529650R1

GEAR-SET

gears bevel matched 14/51T, up to/000561 consists of : 1 gear £ 1 shaft £

1шт.
