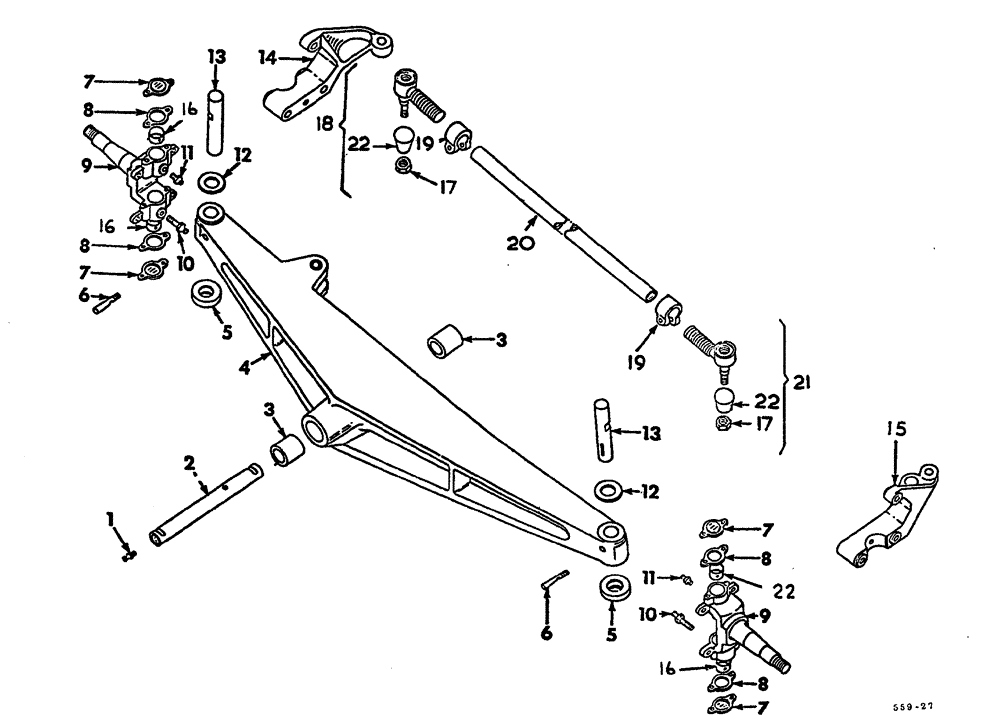

Запчасти Case 3400 (150) - FRONT AXLE AND CONNECTIONS (25) - FRONT AXLE SYSTEM

1

109461

LUBE NIPPLE,1/8"-27 x .66 lg

PTF

2шт.

2

535114R1

PIN

PIVOT front axle

1шт.

3

378813R1

BUSHING

axle

2шт.

4

531398R11

SPARE PART ASSEMBLY, front

1шт.

530975R2

SPACER

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

2шт.

180193

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

SCREW, hex HD CAP, 1/2-13 x 3-3/4

2шт.

111571H

KEY

PIN draw king

2шт.

5

21076D

BEARING ASSY,31.9mm ID x 55.56mm OD x 16.13mm W

steering knuckle thrust

2шт.

6

111571H

KEY

PIN draw king

2шт.

7

70590R1

CAP

steering knuckle

4шт.

51124V

SCREW

CAP steering knuckle

8шт.

116120

LOCK WASHER,5/16"

8шт.

8

70591R1

GASKET

CAP steering knuckle

4шт.

9

112775R11

STEERING KNUCKLE

ASSEMBLY, steering

2шт.

107317

GROOVED PIN,3/16" x 1/2", Type A

PDS

2шт.

10

NLS

NO LONGER SERVICED

LUBRICATOR fitting, 1/8-27 PTF STR LUB

2шт.

11

109461

LUBE NIPPLE,1/8"-27 x .66 lg

PTF

2шт.

12

61554R1

WASHER

SHIM, steering knuckle spacer .005 as required

1шт.

12

70586R1

SHIM

SPACER, steering knuckle .010 as required

1шт.

13

70592R1

PIVOT PIN,31.75mm OD x 171.45mm L

king

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

14

531402R1

ARM

steering knuckle, R. H.

1шт.

271749

PLATE,Hex, 5/8" - 18 x 2 1/4", Gr 5

SCREW, hex HD i5/8-18 x 2-1/4

2шт.

414-1060

BOLT,Hex, 5/8" - 18 x 3-3/4", Gr 5

hex HD CAP, .5/8-18 x 3-3/4

4шт.

425-1110

NUT,5/8"-18, G5

hex, 5/8-18

6шт.

15

531401R1

ARM

SPARE PART steering knuckle L. H.

1шт.

16

70589R1

BRONZE BUSHING,31.37mm ID x 34.66mm OD x 40.21mm L

steering knuckle

4шт.

17

933066R1

NUT,M16 x 1.5

tie rod end

2шт.

18

3116244R91

END

tie rod R. H.

1шт.

3116266R1

SPARE PART

PIN

1шт.

19

3116246R91

CLAMP

CPTE

2шт.

20

3116245R1

TUBE

CONNECTOR

1шт.

21

3116243R91

END

ASSEMBLY, TIE ROD L. H.

1шт.

932848R1

PIN, SPLIT (COTTER)

PIN, COTTER

1шт.

535742R91

TIE-ROD

ROD ASSEMBLY, tie lemforder

1шт.
