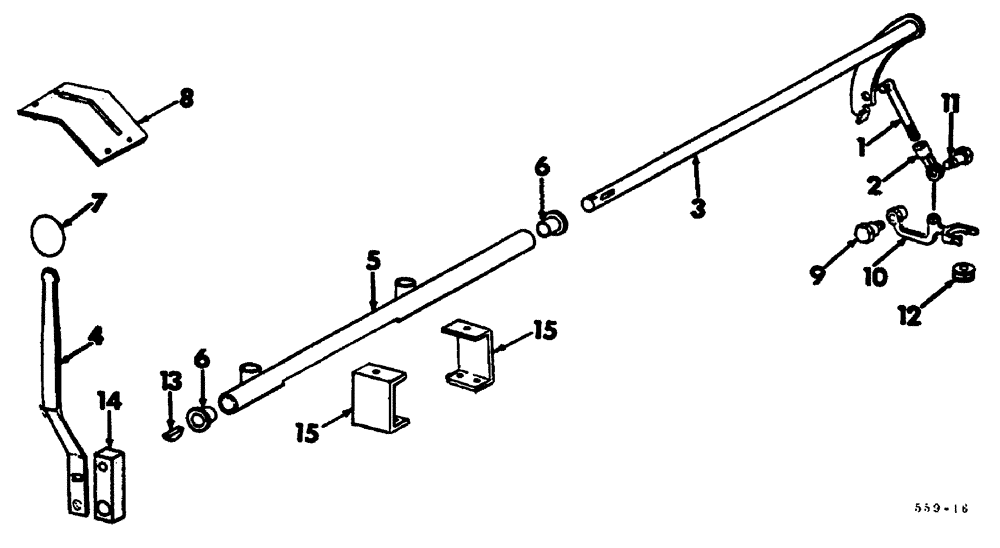

Запчасти Case 3400 (041) - POWER TAKE-OFF LEVER AND CONNECTIONS (21) - TRANSMISSION

1

535450R1

ROD ASSY.

IPTO control

1шт.

103315

SPARE PART PIN, cotter

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

535453R1

PIN

IPTO rod

1шт.

2

528837R1

CLEVIS,5/16" - 24

IPTO control

1шт.

3

537311R1

SHAFT

ASSEMBLY, IPTO control

1шт.

103385

COTTER PIN,1/8" x 1"

1шт.

21903R1

WASHER

17/32 x 3/4 x .060 C Z

1шт.

4

537314R1

SPARE PART ASSEMBLY, hand

1шт.

15031R1

BOLT, 5/16-18 x 1-3/8 SQ NK CRG

1шт.

103320

LOCK WASHER,5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

5

537315R21

SPARE PART

SUPPORT ASSEMBLY, control shaft also includes Ref. no 6

1шт.

6

528839R1

BUSHING

control shaft support

2шт.

1

530090R1

KNOB

IPTO hand lever

1шт.

8

3113349R1

GUARD

PANEL, IPTO control tractors w/0 draft control

1шт.

535183R1

LOCK SCREW

washer HD CAP

4шт.

9

401754R1

BOLT,3/8" - 16 x 2.20"

Control arm pivot shaft

1шт.

10

401749R2

LEVER ASSY.

BELLCRANK, control

1шт.

11

530809R1

BOLT,Shoulder, Hex, 1/4" - 28 x 1.06"

shoulder

1шт.

12

530813R2

GUIDE BUSHING

COLLAR, IPTO control

1шт.

25215R1

PIN,3/16" x 7/8", Coiled

1шт.

13

124543

WOODRUFF KEY,#3, 1/8" x 1/2", HT

1шт.

14

538414R2

PIVOT, lever

1шт.

15

538415R1

SPARE PART BRACKET, support L. H. tractors w/o draft control

1шт.

15

538416R1

SPARE PART BRACKET, support R. H. tractors w/o draft control

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

2шт.

1092720R1

PRODUCT GRAPHIC, IPTO control

1шт.
