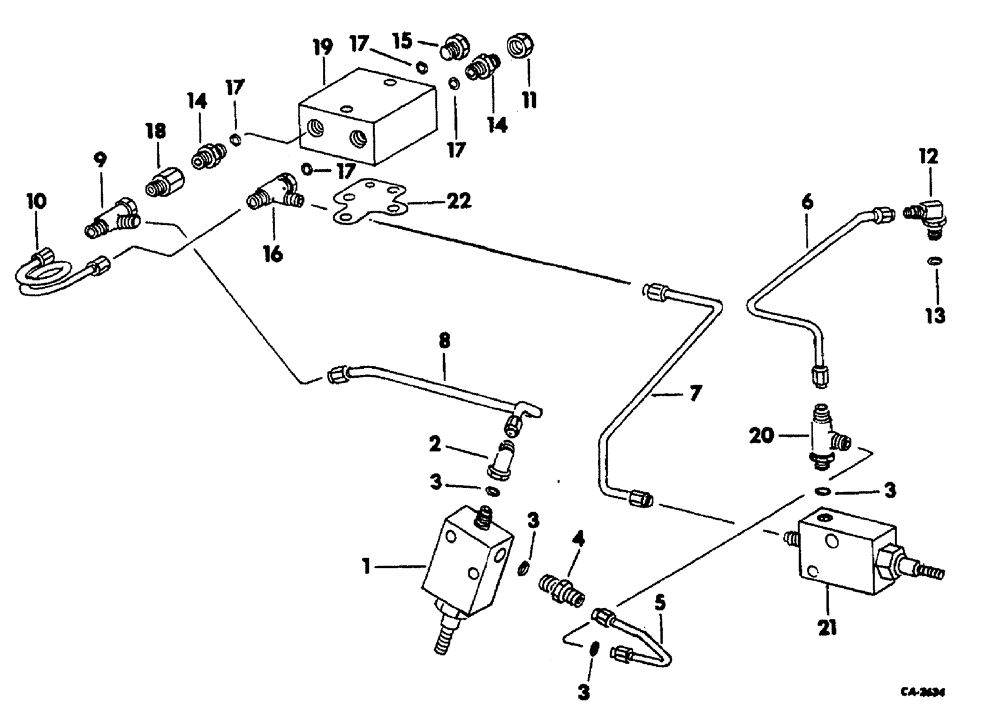

Запчасти Case 3400 (038) - FOOT-N- INCH AND DECELERATOR VALVE TUBING (21) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
1
539750R91
SPARE PART
VALVE ASSEMBLY, foot n inch for components, see list of parts under details of foot n inch valve
1шт.
179847
BOLT,Hex, 3/8" - 16 x 2", Gr 5
2шт.
103321
LOCK WASHER,3/8"
2шт.
102635
NUT,3/8"-16, G5
2шт.
2
9410278
ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw
TUBE flared, 90 DEC swivel, 7/16-20 37 DEC HYD
1шт.
3
369384R1
O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro
5/16 OD tube
3шт.
4
9410201
HYD CONNECTOR,1/2"-20, 37 Degree x 1/2"-20, O-Ring
TUBE flared short swivel, 1/2-20 37 DEC HYD
1шт.
5
537116R3
TUBE
ASSEMBLY, dump valve vent
1шт.
6
536754R3
TUBE
ASSEMBLY, pilot valve vent
1шт.
7
537113R2
TUBE
ASSEMBLY, decelerator pressure
1шт.
8
538482R3
TUBE
ASSEMBLY, dump pressure
1шт.
9
9410330
TEE,37 Degree, 7/16"-20 x 7/16"-20, Fem Sw Run
7/16-20 37 DEC HYD flared tube ADJ STR THD 90 DEC
1шт.
10
538483R1
TUBE
ASSEMBLY JUMPER
1шт.
11
9403369
CAP,37 Degree, 7/16"-20
TUBE flared, 7/16-20 37 DEG HYD
1шт.
12
537117R1
FITTING,90 Degree, 1/2"-20, 37 Degree x 3/4"-16, O-Ring
1шт.
14
9410200
HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB
CONNECTOR, flared tube, 1/4 37 DEG
2шт.
15
9410356
PLUG
O RING boss, 7/16-20 STR THD
1шт.
16
24151R1
SPARE PART
TEE, flared tube, 1/4 37 DEG ADJ
1шт.
17
369751R1
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1/4 OD tube
4шт.
18
404254R2
VALVE
ASSEMBLY, check
2шт.
19
536555R1
SPARE PART
MANIFOLD, pilot relief
1шт.
179847
BOLT,Hex, 3/8" - 16 x 2", Gr 5
2шт.
102635
NUT,3/8"-16, G5
2шт.
103321
LOCK WASHER,3/8"
2шт.
20
9411129
TEE,1/2"-20, 37 Degree x 1/2"-20, O-Ring Run
1/2-20 37 DEG HYD flared tube ADJ STR THD 90 DEG
1шт.
21
404211R91
VALVE
ASSEMBLY, decelerator for components, see list of parts under details of decelerator valve
1шт.
22
405032R1
GASKET
drive control valve
1шт.
179847
BOLT,Hex, 3/8" - 16 x 2", Gr 5
2шт.
Выбрано товаров: 29
