(037) - TRANSMISSION FOOT CONTROLS - HYDROSTATIC DRIVE TRACTORS

Запчасти Case 3400 (037) - TRANSMISSION FOOT CONTROLS - HYDROSTATIC DRIVE TRACTORS (21) - TRANSMISSION

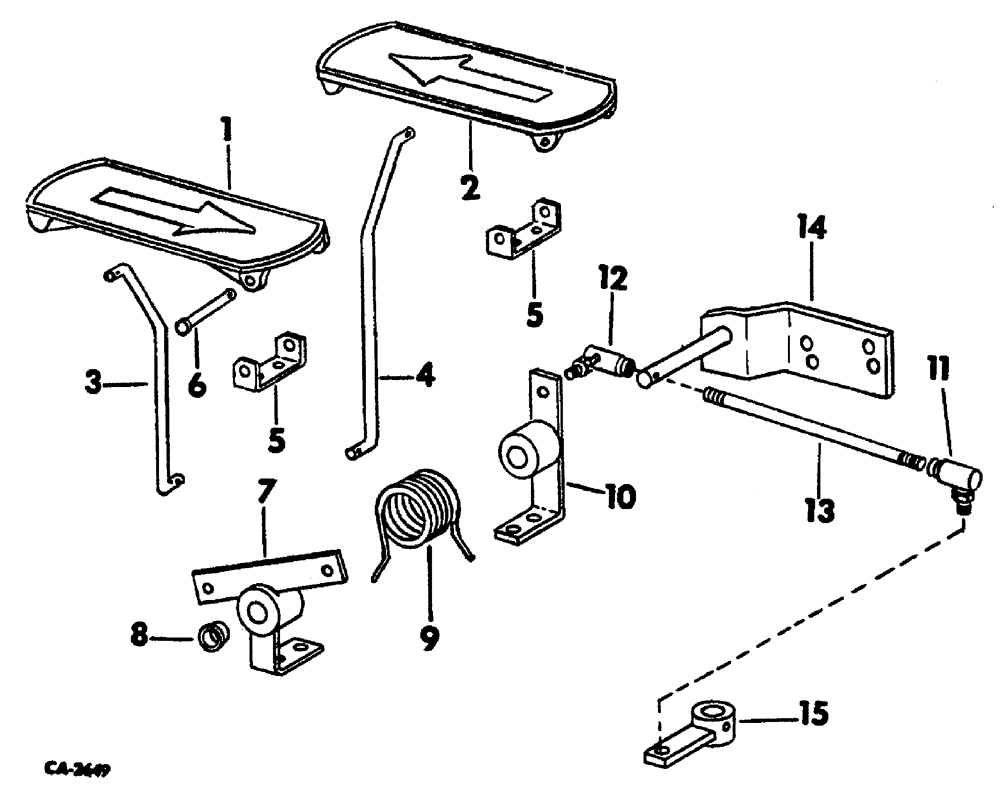

Схема запчастей Case 3400 - (037) - TRANSMISSION FOOT CONTROLS - HYDROSTATIC DRIVE TRACTORS (21) - TRANSMISSION
15
5
9
4
1
14
10
13
6
12
5
11
8
7
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

536551R1

PEDAL

reverse hydrostatic

1шт.

2

536521R1

PEDAL

forward and accelerator

1шт.

3

536943R1

ROD

REV, control

1шт.

585614R1

PIN

hair cot

2шт.

120394

WASHER,3/8", SAE

13/32 x 13/16 x .051

2шт.

648002

KNIFE

1/8" x 3/4"

1шт.

4

536943R1

ROD

FWD control

1шт.

585614R1

PIN

hair cot

2шт.

120394

WASHER,3/8", SAE

13/32 x 13/16 x .051

2шт.

648002

KNIFE

1/8" x 3/4"

1шт.

5

536387R1

BRACKET

pedal pivot

2шт.

179795

TILLAGE BLADE

hex HD CAP, 1/4-20 x 3/4

4шт.

6

536522R1

PIN

headed

2шт.

16559R1

WASHER,1/4"

17/64 x 5/8 x 18 GA

2шт.

103383

COTTER PIN,1/8" x 1/2"

2шт.

7

539781R1

CAM

ASSEMBLY, pivot

1шт.

8

536952R1

BUSHING

4шт.

9

536900R1

SPRING

control cushion

1шт.

20869R1

WASHER

17/32 x 7/8 x 16 GA C Z

1шт.

18481R1

COTTER PIN,3/16" x 1"

1шт.

10

536901R2

PEDAL

ASSEMBLY, pivot

1шт.

11

531469R1

SPARE PART JOINT, 3/8-24 ball optional w/392594Rl

1шт.

392594R1

END ASSY.

JOINT, 3/8-24 ball optional w/537469Rl

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

12

534930R1

BALL JOINT

3/8-24 x 1-11/32 L. H. THD ball

1шт.

23460R1

NUT,Jam, 3/8"-24, G5, LH

1шт.

13

536951R2

ROD

cam actuating

1шт.

14

539630R1

BRACKET

ASSEMBLY, pedal control

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, hex HD CAP, 3/8-16 x 7/8 ZND

2шт.

15

536940R1

ARM

ARM ASSEMBLY, cam actuating

1шт.
