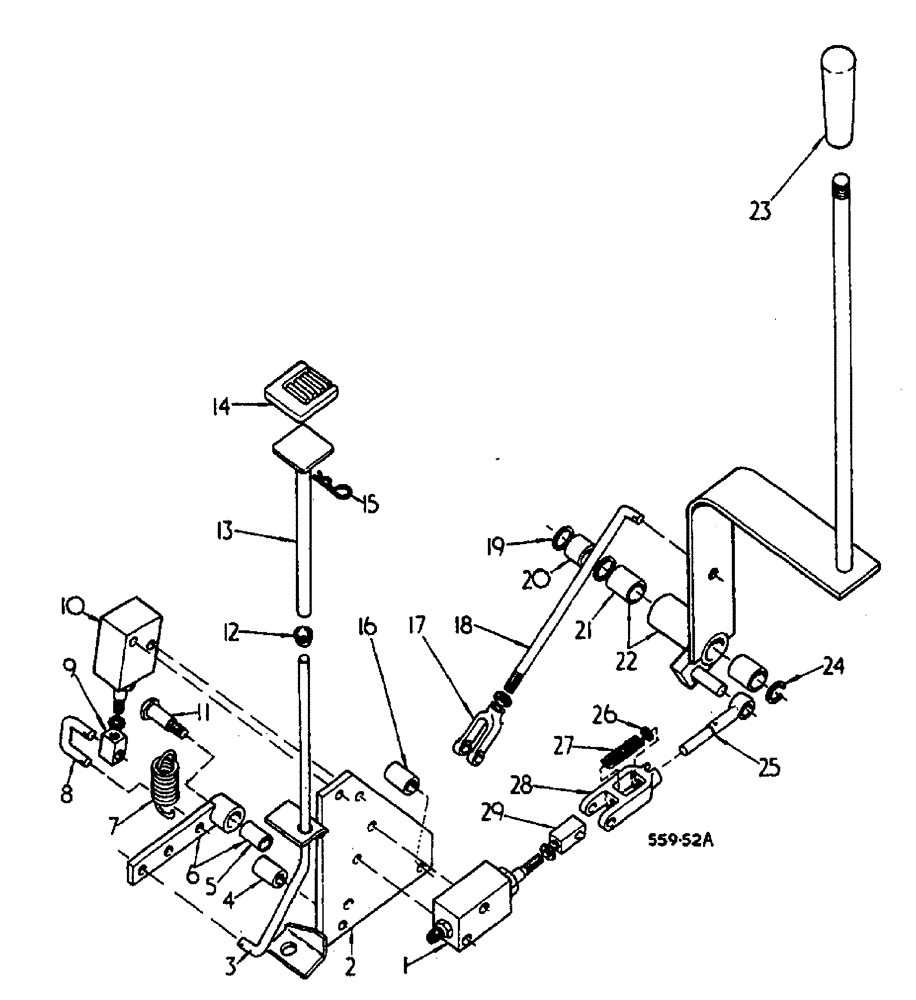

Запчасти Case 3400 (036) - TRANSMISSION CONTROLS - HYDROSTATIC DRIVE TRACTORS (21) - TRANSMISSION

1

404211R91

VALVE

VALVE ASSEMBLY, decelerator for components, see list of parts under details of decelerator valve

1шт.

2

539632R2

BRACKET

ASSEMBLY, valve mounting

1шт.

3

539640R2

ROD

ROD, valve control

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

120394

WASHER,3/8", SAE

.406 x .812 x .051 ZND

1шт.

4

65002C2

SPACER

bracket

1шт.

186285

BOLT,Hex, 3/8" - 16 x 4", Gr 5

1шт.

9

537936R1

BUSHING

SPARE PART foot n inch pedal

1шт.

6

539636R1

ARM

ASSEMBLY, control

1шт.

7

537938R1

SPRING

foot n inch return

1шт.

8

634463R2

LINK ASSEMBLY

1шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

9

398766R1

UNION

BAR adjustment

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

10

539750R91

SPARE PART

VALVE ASSEMBLY, foot n inch return for components, see list of parts under details of foot n inch valve

1шт.

11

532965R3

BOLT,3/8" - 16 x 1.7"

FOOT ACC PIVOT

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

12

539641R1

BEARING

flange

1шт.

13

536913R1

SPARE PART ASSEMBLY DUMP

1шт.

14

237672R1

PAD

PEDAL dump

1шт.

15

473443R1

COTTER PIN

quick attachable cot

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

16

65002C2

SPACER

bracket

1шт.

186286

SCREW, hex HD CAP, 3/8-16 x 4

1шт.

17

213-316

ADJUSTABLE CLEVIS,3/8" - 24

short ADJ ROD END, 3/8-24 x 2-3/16

1шт.

17

161003C1

NO LONGER SERVICED

CLEVIS CLEVIS, 3/8-24 x 2-1/4 rod end, optional

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

128084

SPARE PART

PIN PIN, rod end, 3/8 x 1-3/32.

1шт.

220557

PIN, cot 3/32 x 3/4

1шт.

18

535849R1

ROD

connecting

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

120394

WASHER,3/8", SAE

13/32 x 13/16 x .051

1шт.

19

535802R1

WASHER

thrust

2шт.

20

535830R1

SPACER

1шт.

21

535809R1

BUSHING

2шт.

22

536548R1

SPARE PART ASSEMBLY, range shift

1шт.

23

537784R1

KNOB

shift

1шт.

24

104209R1

RING

retaining

1шт.

22815R1

WASHER

29/32 x 1-1/4 x 16 GA

1шт.

25

537940R1

ROD

SPARE PART decelerator valve clevis

1шт.

19938R1

PIN,1/8" x 7/8", Coiled

1/8" x 7/8", Coiled

1шт.

26

319565C1

WASHER

3/8 x 5/8 x 1/16

1шт.

27

404290R1

SPRING

ROD, valve

1шт.

28

537939R1

CLEVIS

VALVE, decelerator

1шт.

22751R1

HEADED PIN,5/16" x 1 5/8"

1шт.

120393

BEARING WASHER,5/16", SAE

11/32 x 11/16 x .051 C Z

1шт.

103384

COTTER PIN,1/8" x 3/4"

1шт.

29

398766R1

UNION

BAR, adjusting

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

1шт.
