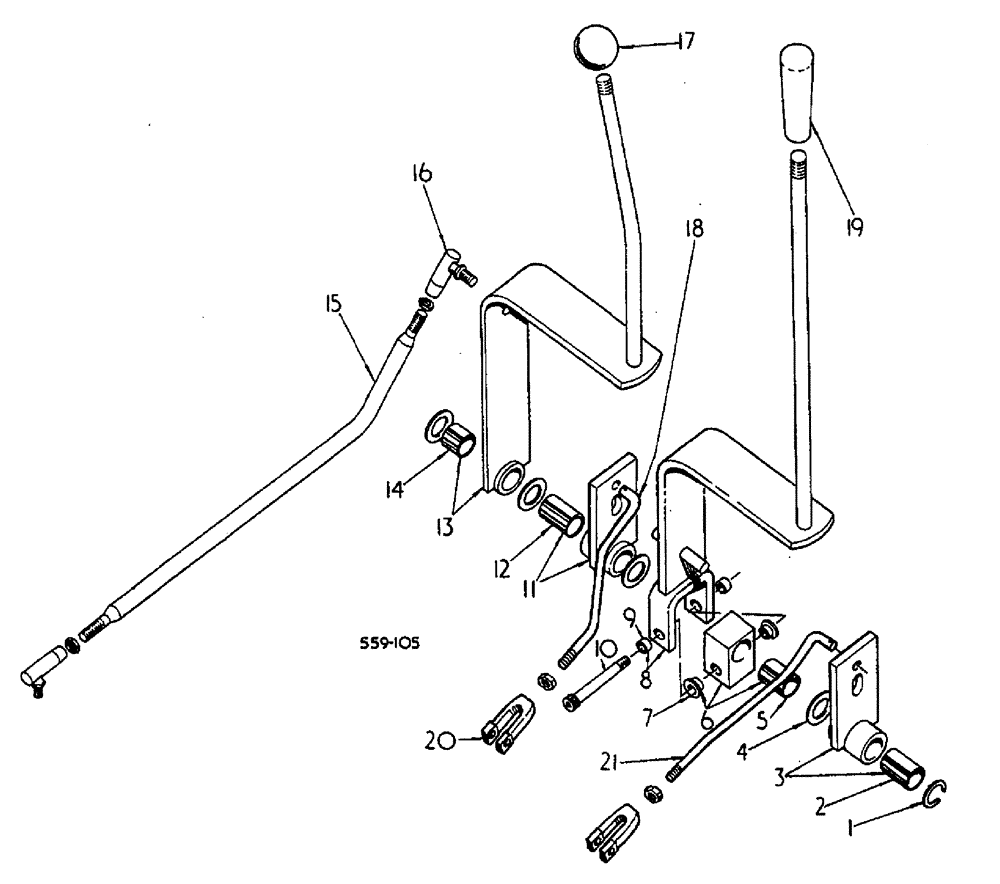

Запчасти Case 3400 (035) - TRANSMISSION CONTROLS - SYNCHROMESH TRANSMISSION TRACTORS (21) - TRANSMISSION

1

104209R1

RING

retaining

1шт.

22815R1

WASHER

29/32 x 1-3/4 x 16 GA

1шт.

2

535838R1

BUSHING

1шт.

3

537234R91

SPARE PART ASSEMBLY, control

1шт.

4

535802R1

WASHER

thrust

4шт.

5

535838R1

BUSHING

1шт.

6

535835R91

SPARE PART

PIVOT AND SPACER ASSEMBLY fork

1шт.

7

535837R1

BUSHING

2шт.

8

537238R91

SPARE PART

LEVER ASSEMBLY, range

1шт.

9

537240R1

BUSHING

2шт.

10

537242R1

SPARE PART SHOULDER

1шт.

23036R1

WASHER

13/32 x 3/4 x 24

4шт.

9413994

LOCK NUT,5/16"-18, GC

hex lock, 5/16-18

1шт.

11

537234R91

SPARE PART ASSEMBLY, control

1шт.

12

535838R1

BUSHING

1шт.

13

535820R2

SPARE PART speed shift

1шт.

14

535809R1

BUSHING

1шт.

15

535824R1

ROD

speed shift lever

1шт.

16

392594R1

END ASSY.

JOINT, 3/8-24 x 1-11/32 ball

2шт.

537469R1

SWING JOINT

JOINT, 3/8-24 x 1-11/32 ball optional

2шт.

103026

NUT,3/8"-24, G5

4шт.

17

535803R1

KNOB

speed shift lever

1шт.

18

537241R1

ROD, HI-N range

1шт.

19

537784R1

KNOB

shift

1шт.

20

161003C1

NO LONGER SERVICED

CLEVIS YOKE

2шт.

114494

NUT,Jam, 3/8"-24, G5

2шт.

138084

SPLIT PIN/SAFETY PIN

rod end, 3/8 x 1-3/32

2шт.

220257

PIN, SPLIT (COTTER)

PIN, COTTER 3/32 x 3/4

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

120394

WASHER,3/8", SAE

13/32 x 13/16 x .051

2шт.

21

537246R1

SPARE PART LO-N-R range

1шт.

1092878R1

PRODUCT GRAPHIC

gearbox warning

1шт.
