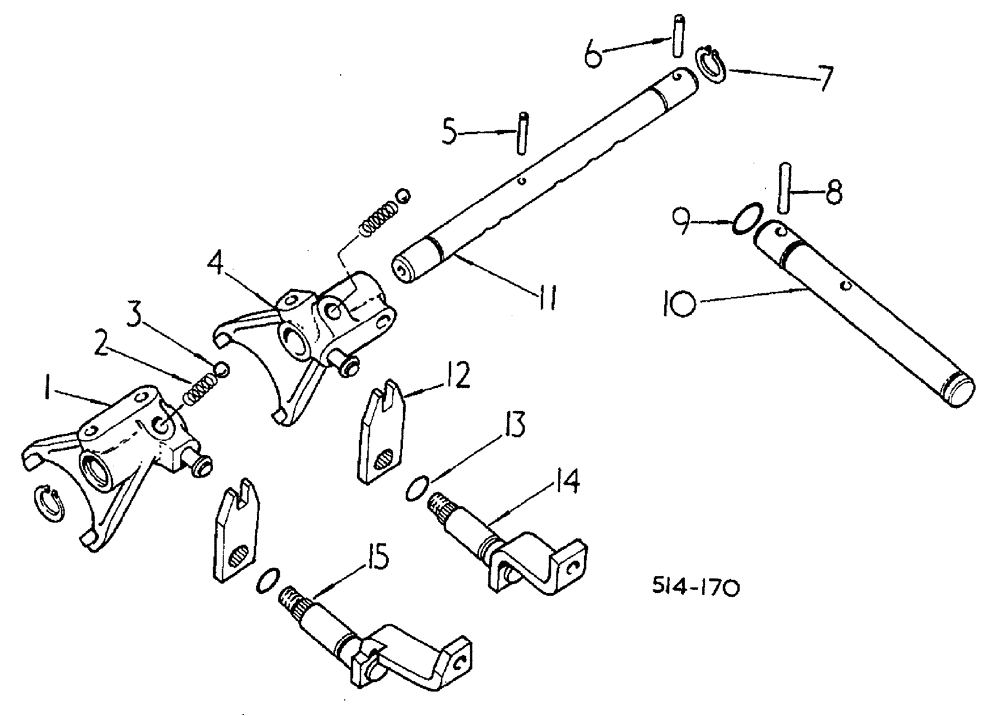

Запчасти Case 3400 (034) - GEAR SHIFT MECHANISM - RANGE TRANSMISSION (21) - TRANSMISSION

1

538911R2

NO LONGER SERVICED

FORK, front

1шт.

1

537470R1

NO LONGER SERVICED

FORK, front synchromesh drive tractors

1шт.

On orders for 537470R1 furnish 538911R2 together w/ arm 405164R2 and two washer Q3501

1шт.

2

534053R1

SPRING

poppet ball 1 used for hydrostratic drive tractors

2шт.

3

17013R1

BALL,13/32" Dia

Optional w/16013Rl

2шт.

3

16013R1

BALL

CR, STL optional w/17013 Rl, 1 used for hydrostatic drive tractors, 13/32

2шт.

4

538912R2

FORK

FORK, rear

1шт.

4

537472R1

NO LONGER SERVICED

FORK, rear synchromesh drive tractors

1шт.

On orders for 537472R1 furnish 538911R2 together w/ arm 405164R2 and two washer Q3501

1шт.

4

538913R2

NO LONGER SERVICED

FORK

1шт.

4

402148R1

EXCITER

TRACTORS fork hydrostatic drive, use on synchromesh w/forward and reverse

1шт.

On orders for 402148R1 furnish 538913R2 together w/ arm 405167R2 and two washer Q3501

1шт.

5

20122R1

PIN,1/4" x 1 1/2", Coiled

1шт.

6

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

7

661652R1

SNAP RING,#75, Ext

Shift fork rail, 1 used for hydrostatic drive tractors

2шт.

8

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1 3/4", Coiled

1шт.

9

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 x 7/8 x 3/32

1шт.

10

402152R1

SHAFT

range trans shift lever idler synchromesh drive tractors

1шт.

10

527853R1

SHAFT

hydrostatic range shift lever hydrostatic drive tractors, use on synchromesh w/forward and reverse

1шт.

11

537473R1

RAIL ASSY.

RANGE shift fork synchromesh drive tractors

1шт.

11

402150R1

RAIL

RANGE shift fork hydrostatic drive tractors, use on synchromesh w/forward and reverse

1шт.

12

405169R2

ARM

range shift inner 1 used for hydrostatic drive tractors

2шт.

19605R1

LOCK NUT,1/2"-13, GB

nylon insert 1 used for hydrostatic drive tractors 1/2-13

2шт.

13

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1 used for hydrostatic drive tractors 9/16 x 3/4 x 3/32

2шт.

14

405167R2

ARM

ASSEMBLY, range shift outer rear

1шт.

3501

SCREW

WASHER, 25/32 x 1-1/4 x .060

2шт.

15

405164R2

ARM

ARM ASSEMBLY, range shift outer front synchromesh drive tractors

1шт.

Q3501

WASHER

25/32 x 1-1/4 x .060

2шт.
