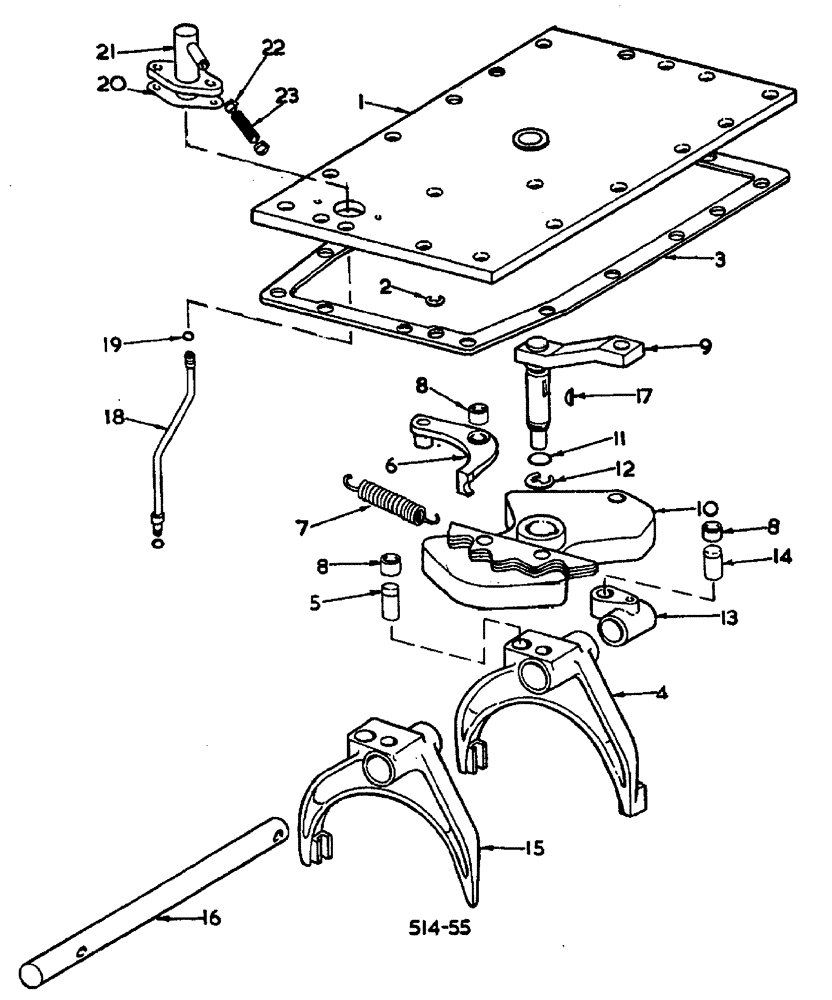

Запчасти Case 3400 (033) - GEAR SHIFT MECHANISM - SPEED TRANSMISSION (21) - TRANSMISSION

1

402597R2

COVER

COVER ASSEMBLY, clutch housing top

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

16шт.

11002VA

WASHER

17/32 x 7/8 x .065

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

OD TUBE, 1/2

1шт.

9410359

PLUG

3/4-16 STD HD o ring boss

1шт.

1

401618R12

COVER

COVER ASSEMBLY, clutch housing top tractors w/forward and reverse attachment

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

14шт.

2

370290R1

SNAP RING,#50, .392" Dia, E-Type

shifter control arm pivot pin #50, .392" Dia, E-Type

1шт.

3

401019R2

GASKET

clutch housing top cover

1шт.

3

401621R2

GASKET

clutch housing top cover tractors w/forward and reverse attachment

1шт.

4

401697R91

YOKE

FORK ASSEMBLY, 3RD and 4TH speed shift

1шт.

5

383438R1

DOWEL

HN, dowel, 1/2 x 1

1шт.

6

382565R21

ARM ASSY.

ARM ASSEMBLY, shifter control

1шт.

7

383997R1

SPRING

SPRING, shifter control arm

1шт.

8

380115R2

ROLLER

ROLLER, cam

3шт.

9

404734R1

ARM ASSY.

cam actuating

1шт.

10

399455R92

CAM

CAM ASSEMBLY, clutch housing shift

1шт.

104186

RIVET

SPARE PART solid, 5/16 x 1-3/8 CSK HD

2шт.

11

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32 cam pivot shaft

1шт.

12

603570R1

SNAP RING,#75, .574" Dia, E-Type

cam pivot shaft #75, .574" Dia, E-Type

1шт.

13

401694R11

HUB ASSY.

SPARE PART 1ST and 2ND speed shift

1шт.

14

383438R1

DOWEL

dowel, 1/2 x 1

1шт.

25155R1

PIN,1/4" x 1 1/4", Coiled

2шт.

15

401695R2

FORK

1ST and 2ND speed shift

1шт.

16

401696R1

ROD

1ST and 2ND speed shift

1шт.

17

106751

KEY

woodruff, cam pivot shaft, 3/16 x 3/4

1шт.

18

534412R1

TUBE

ASSEMBLY, transmission lub

1шт.

18

65736C1

TUBE,0.25" OD, 7.26, 0.62" Length

ASSEMBLY, transmission lub forward and reverse/615 up

1шт.

19

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 x 3/8 x 1/16

2шт.

20

534420R1

GASKET

pressure lub, body cover

1шт.

21

539536R1

COVER

lub pressure, 3400/571 up

1шт.

21

534415R91

SPARE PART CPTE, pressure lub up to, 3400/570

1шт.

21

65733C1

BODY

ASSEMBLY, pressure lub used w/forward and reverse/615 up

1шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

hex HD CAP, 1/4-28 x 5/8

2шт.

103319

LOCK WASHER,1/4"

2шт.

22

534421R1

HOSE CLAMP

up to 3400/570, used w/forward and reverse

2шт.

23

537612R1

HOSE

, Serial Range: up-3400/570

1шт.

23

65735C1

SPARE PART HOSE used w/forward and reverse 615 up

1шт.
