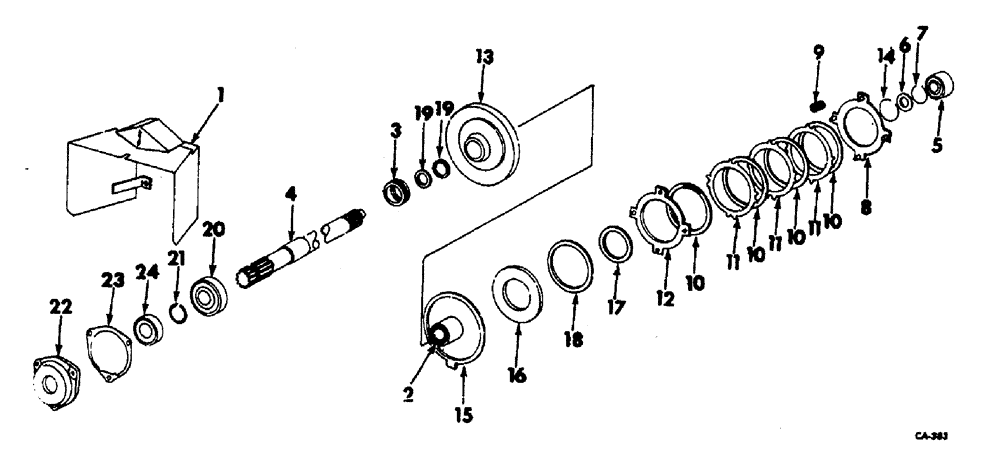

Запчасти Case 3400 (031) - INDEPENDENT POWER TAKE-OFF - SINGLE SPEED - 1000 RPM (21) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
1
not used
1шт.
2
565232R91
BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W
shaft
1шт.
3
401705R1
BUSHING
BUSHING shaft
1шт.
4
3113021R1
SHAFT
ASSEMBLY output
1шт.
5
401710R1
HUB
ASSEMBLY clutch
1шт.
6
401713R1
THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk
1шт.
7
401756R1
SNAP RING,#206, 1.936", Ext
1шт.
8
539262R91
BACKING PLATE
PLATE ASSEMBLY, clutch backing
1шт.
539264R1
SPARE PART
PIN clutch disc wear limiter
4шт.
9
401715R1
SPRING
SPRING piston return
4шт.
10
DISC ASSEMBLY front clutch for 1000 RPM, order package 534934RSI
4шт.
11
PLATE, driven for 1000 RPM, order package 534934R91
6шт.
12
401718R1
PLATE
piston return
1шт.
13
406599R1
GEAR
CUP, clutch
1шт.
617940R1
PIN,5/16" x 1 3/4", Coiled
5/16" x 1 3/4", Coiled
1шт.
14
401720R1
CIRCLIP
backing plate
1шт.
15
404490R1
RING,140.25mm ID x 4.5mm Thk
IPTO BRAKE
1шт.
16
401722R1
PISTON
clutch
1шт.
17
401723R1
O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk
piston seal, inner
1шт.
18
401724R1
SEAL,0.551" ID x 0.07" Width
piston seal, outer
1шт.
19
166972R1
RING
shaft sealing
2шт.
20
171082R91
BALL BEARING,40 mm ID x 90 mm OD x 23 mm
shaft
1шт.
20
ST236
BEARING, BALL,40mm ID x 90mm OD x 23mm W
shaft OPT
1шт.
20
533615R91
BALL BEARING
BEARING shaft ball
1шт.
20
538962R91
BALL BEARING
BEARING shaft ball
1шт.
21
607186R1
SNAP RING,#156, Ext
Brg
1шт.
22
401725R1
NO LONGER SERVICED
FLANGE/Retired FLANGE, IPTO shaft bearing
1шт.
179838
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
Loctite fitting
3шт.
23
399843R2
GASKET
shaft bearing retainer
1шт.
24
385766R91
OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk
shaft
1шт.
301555R1
SPARE PART PLUG, cup, 2-1/2
1шт.
406805R1
TUBE
ASSEMBLY, IPTO shaft protection
1шт.
534934R92
PLATE
package, 1000 RPM/HTO clutch plate consists of 4 disc $ 6 plate $ 1 o ring 401723Rl 1 o ring 401724 4 spring 401715R1
1шт.
Выбрано товаров: 33
