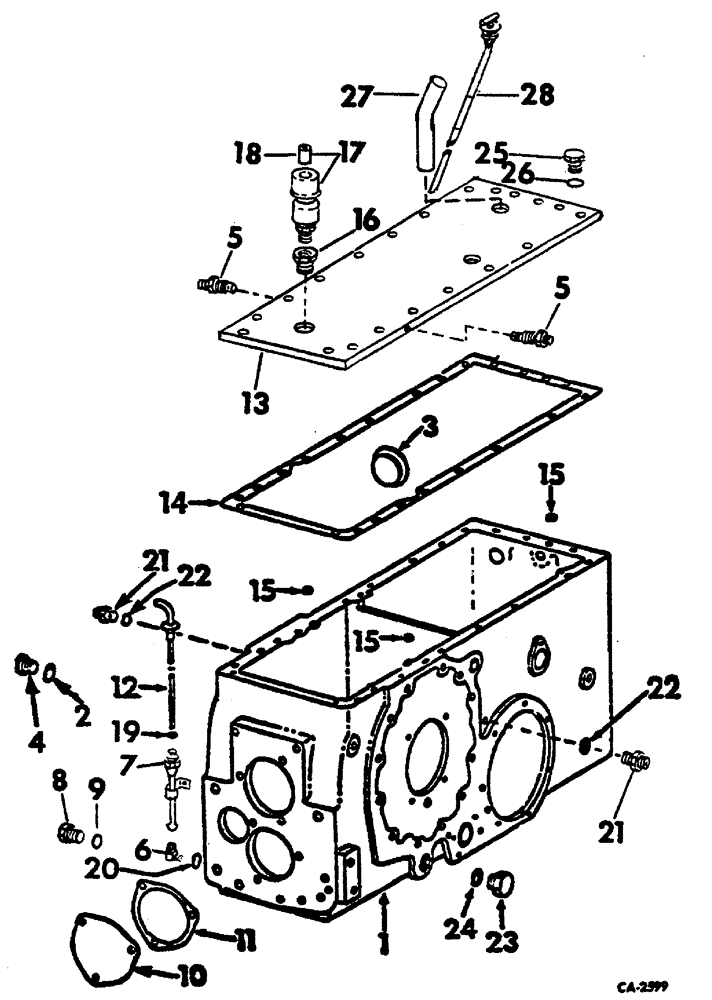

Запчасти Case 3400 (027) - REAR FRAME COVER AND CONNECTIONS (21) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
19904R1
DOWEL,1/2" x 1"
2шт.
1
399848R21
FRAME
FRAME ASSEMBLY, rear synchromesh drive tractors
1шт.
19875R1
DOWEL,5/8" x 1 1/2"
PIN, 5/8 x 1-1/2
4шт.
19846R1
DOWEL,1/2" x 1 1/4"
PIN, 1/2 x 1-1/4
1шт.
327412R1
PLUG,Cup, 13/16"
CUP, 13/16
1шт.
386194R1
PLUG,Cup, 3/4"
CUP, 3/4
2шт.
512870R1
PLUG,Cup, 2 1/4"
CUP, 2-1/4
1шт.
349373R1
PLUG
CUP, 1-1/4
1шт.
70129R1
PLUG,Cup, 2"
auc, 2 CUP
1шт.
327413R1
PLUG
auc, 1-1/2 CUP
1шт.
3113103R1
PLUG
hex HD pipe, 3/4-14 AUTO
1шт.
1
399849R92
FRAME
FRAME ASSEMBLY, rear hydrostatic drive tractors
1шт.
19904R1
DOWEL,1/2" x 1"
2шт.
19875R1
DOWEL,5/8" x 1 1/2"
dowel, 5/8 x 1-1/2
4шт.
19846R1
DOWEL,1/2" x 1 1/4"
dowel, 1/2 x 1-1/4
1шт.
386194R1
PLUG,Cup, 3/4"
CUP, 3/4
3шт.
70129R1
PLUG,Cup, 2"
CUP, 2
1шт.
23828R1
PLUG,Cup, 2 1/2"
CUP, 2-1/2
1шт.
330222R1
PLUG,Cup, 1 7/8"
CUP, 1-7/8
1шт.
151162R1
PLUG,Cup, 1 3/8"
CUP, 1-3/8
1шт.
327413R1
PLUG
CUP, 1-1/2
1шт.
3113103R1
PLUG
hex HD pipe, 3/4-14 AUTO
1шт.
2
369751R1
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1/4 OD tube
1шт.
3
538057R1
PLUG
SPARE PART oil reservoir hydrostatic drive tractors
1шт.
4
9410356
PLUG
O RING boss, 7/16-20 STR THD
1шт.
5
82301R1
BLEEDER,3/8" - 24 x 117mm
brake bleed
2шт.
6
9410976
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring
9/16-18 37 DEG HYD flared tube up to 3400/614, used for HYD draft control
1шт.
7
535898R1
SPARE PART ASSEMBLY, dipstick
1шт.
9403488
NUT,37 Degree, 9/16"-18, Type A
3/8 37 DEG HYD flared tube up to 3400/614, used for HYD draft control
1шт.
8
9410358
PLUG
9/16-18 STR THD O RING 3400/615 up
1шт.
10
399842R1
COVER
rear frame IPTO
2шт.
11
399843R2
GASKET
COVER, rear frame IPTO
2шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
6шт.
12
535896R1
ELECTRICAL GAUGE
DIPSTICK ASSEMBLY, rear frame up to 3400/614, used for HYD draft control
1шт.
13
537628R2
COVER
ASSEMBLY, rear frame
1шт.
179841
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
12шт.
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
2шт.
179883
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
6шт.
14
399994R2
GASKET
GASKET, rear frame cover
1шт.
15
406734R1
SEAL
teflon
3шт.
16
not used
1шт.
17
404510R1
BREATHER
FILTER ASSEMBLY, breather optional w/530147Rl
1шт.
17
530147R1
BREATHER
FILTER ASSEMBLY, breather optional w/404510Rl, 000615/up
1шт.
17
366591R91
CLEANER
FILTER ASSEMBLY, breather optional w/538330Rl
1шт.
17
538330R1
NO LONGER SERVICED
FILTER ASSEMBLY, breather optional w/366591R91 up to/000614
1шт.
127875
ADAPTER,3/8" NPT Male x 1/8" NPT Fem
pipe reducing optional w/119923
1шт.
119923
ADAPTOR, pipe reducing optional w/127875 up to/000614
1шт.
18
324104R1
ELEMENT
ELEMENT, breather used w/filter 404510RI
1шт.
19
352219R1
O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro
1/4 x 3/8 x 1/16 up to 3400/614 used for HYD draft control
1шт.
21
9410200
HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB
TUBE flared short swivel, 7/16-20 C Z, 37 DEG HYD
1шт.
21
9410974
ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring
TUBE flared, 7/16-20, 37 DEG HYD ADJ STR THD 90 DEG
1шт.
22
369751R1
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1/4 OD tube
2шт.
23
9410363
PLUG
O RING boss, 1-5/16-12 STR THD
1шт.
24
296247R1
O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk
TUBE, 1 OD
1шт.
25
not used
1шт.
26
not used
1шт.
27
65134C1
SPARE PART,1.315" OD, 11.9, 1.5" Length
TUBE, dipstick 3400/615 up
1шт.
28
65135C1
ELECTRICAL GAUGE
DIPSTICK ASSEMBLY, oil level, 3400/615 up
1шт.
9410977
ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring
TUBE flared, transfer pump outlet tube, synchromesh drive tractors, 3/4-16 C Z 37 DEG HYD ADJ STR THD 90 DEG
1шт.
528448R1
PLATE
parking brake pivot hole blank
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
3шт.
103321
LOCK WASHER,3/8"
For tractors w/hand operated drum brake
3шт.
528449
FINGER
GASKET, pivot hole blanking plate for tractors w/hand operated drum brake
1шт.
9410359
PLUG
1/2-14 auto hex HD pipe FWD & REV/615 up
1шт.
Выбрано товаров: 66
