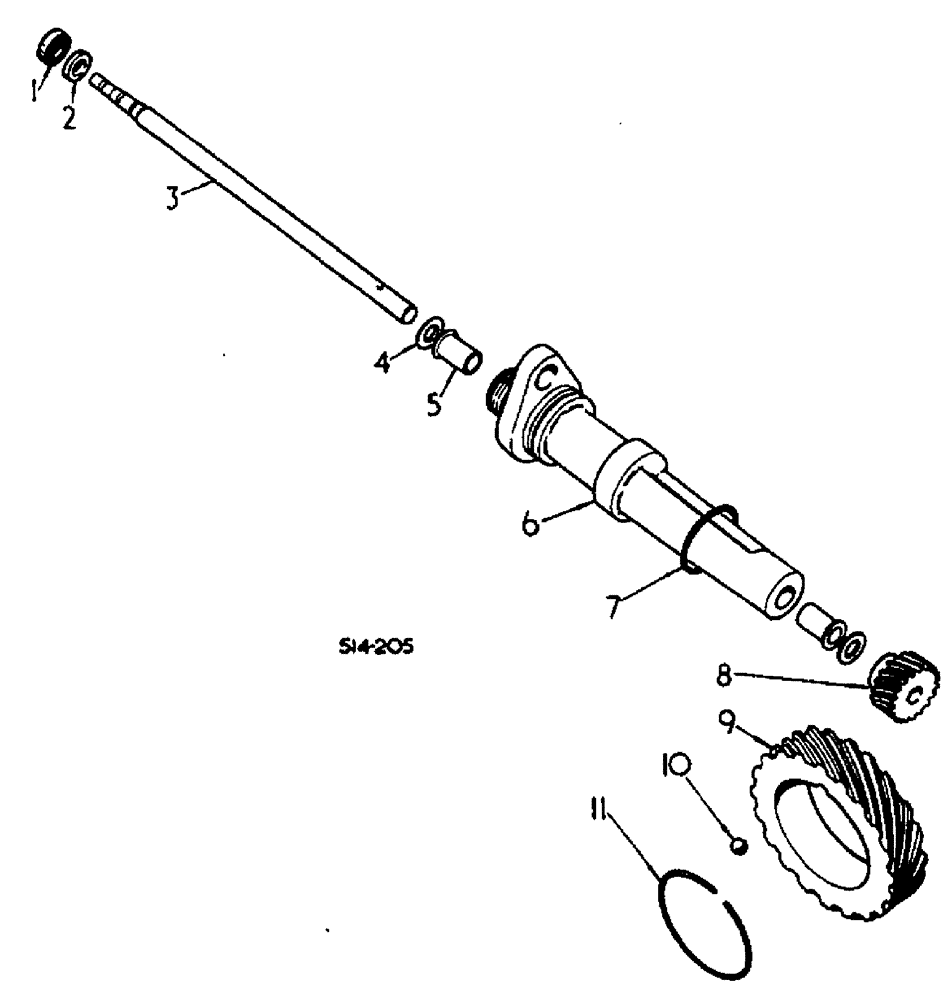

Запчасти Case 3400 (024) - SPEEDOMETER DRIVE - HYDROSTATIC DRIVE (21) - TRANSMISSION

1

529762R91

SEAL,6.17mm ID x 14.43mm OD x 5.18mm Thk

drive shaft oil

1шт.

2

529758R1

COLLAR

speedometer drive shaft

1шт.

3

529757R1

SHAFT ASSEMBLY, speedometer drive

1шт.

4

529760R1

WASHER, THRUST

SPARE PART drive shaft

2шт.

5

529761R1

BUSHING

drive shaft

2шт.

8

529763R1

HOUSING

SPARE PART speedometer

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

7

370943R1

O-RING,1.114" ID x 0.07" Width

1-1/8 x 1-1/4 x 1/16

1шт.

8

529759R1

GEAR

speedometer driven, 20T

1шт.

20948R1

PIN,1/8" x 5/8", Coiled

1/8" x 5/8", Coiled

1шт.

9

529756R1

GEAR

speedometer drive, 20T

1шт.

10

16008R1

BALL,1/4" Dia, Steel

1/4 CR STL

1шт.

11

381486R1

SNAP RING,#187, 1.759", Ext

drive gear retainer

1шт.
