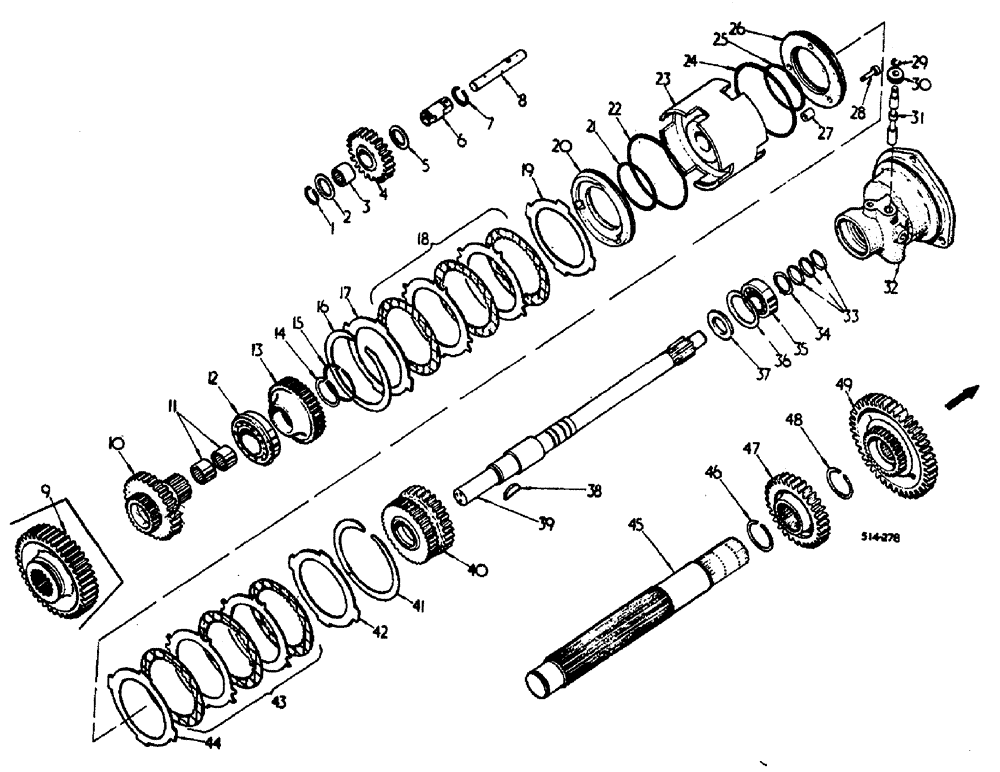

Запчасти Case 3400 (022) - FORWARD AND REVERSE SYNCHROMESH TRANSMISSION (21) - TRANSMISSION

1

362260R1

RING, SNAP

RING SNAP IDLER gear retainer

1шт.

2

527772R1

WASHER

forward reverse idler gear

1шт.

3

551139R91

BEARING, NEEDLE

IDLER shaft

1шт.

3

529930R91

BEARING

idler shaft needle optional

1шт.

4

527776R1

PINION

GEAR, forward reverse idler 23T

1шт.

5

527772R1

WASHER

FWD/REV idler gear

1шт.

6

527775R2

SLEEVE

IDLER gear

1шт.

18543R1

LOCK PIN,7/32" x 1", Slotted

1шт.

7

362260R1

RING, SNAP

RING SNAP idler gear retainer

1шт.

591184R1

PIN,3/16" x 1 1/4", Coiled

3/16" x 1 1/4", Coiled

1шт.

8

527774R1

SHAFT

forward reverse, idler

1шт.

9

527773R2

GEAR

HI LO SLIDING, 42T, located in range transmission

1шт.

10

404200R1

GEAR

GEAR, direct drive hub, 28T

1шт.

11

531436R91

NEEDLE BEARING

BEARING, clutch shaft needle

2шт.

11

550839R91

BEARING, NEEDLE

clutch shaft, optional

2шт.

12

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

direct drive gear

1шт.

12

42347D

BALL BEARING

BEARING, direct drive gear ball

1шт.

12

528088R91

BALL BEARING

BEARING, direct drive gear ball

1шт.

12

3066862R91

BALL BEARING

BEARING, direct drive gear ball

1шт.

12

398323R91

BALL BEARING

BEARING, direct drive gear ball

1шт.

12

3066861R91

JOURNAL

BEARING, direct drive gear ball, optional

1шт.

13

404199R2

CARRIER

CARRIER, direct clutch disc

1шт.

14

583976R1

SNAP RING,#125, 1.179", Ext

RING, clutch cup retainer snap

1шт.

15

336000R1

SNAP RING,#175, 1.640", Ext

disc carrier retainer

1шт.

16

401720R1

CIRCLIP

backing plate retainer

1шт.

17

402569R1

PLATE

CLUTCH backing

1шт.

18

534937R91

SERVICE KIT

PACKAGE, FWD/REV clutch plate service, consists of: 6 plate £ 4 plate £ 2 o ring 401723Rl 2 o ring

1шт.

19

402572R1

PLATE

PISTON BACKING

1шт.

20

527766R1

PISTON

direct drive clutch

1шт.

21

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

CLUTCH PISTON, inner

1шт.

22

401724R1

SEAL,0.551" ID x 0.07" Width

CLUTCH PISTON, outer

1шт.

23

527765R1

NO LONGER SERVICED

CUP, direct drive clutch

1шт.

24

401724R1

SEAL,0.551" ID x 0.07" Width

CLUTCH PISTON, outer

1шт.

25

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

CLUTCH PISTON, inner

1шт.

26

527766R1

PISTON

CLUTCH, direct drive

1шт.

27

527769R1

SPACER

SPACER, piston

3шт.

NLS

NO LONGER SERVICED

NUT, 1/4-28 SQ MACH SCREW

3шт.

28

527768R1

BOLT (SPREADER),Skt Hd, 1/4" - 28 x 1"

FWD/REV PISTON RETURN

3шт.

29

896045R1

SNAP RING,#37, Ext

1шт.

30

531539R1

COLLAR

STEM control

1шт.

31

536974R1

STEM

FWD/REV control valve

1шт.

NLS

NO LONGER SERVICED

hex lock, 3/8 -24

1шт.

32

527761R1

NO LONGER SERVICED

CAGE ASSEMBLY IPTO and clutch CUP RET

1шт.

33

406275R1

RING

PISTON clutch shaft

3шт.

34

3112664R1

SNAP RING

clutch shaft BRG outer RET

1шт.

35

703981R91

BEARING, BALL

clutch shaft

1шт.

35

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

clutch shaft ball

1шт.

35

86276H

BALL BEARING

clutch shaft ball

1шт.

35

704771R92

BEARING, BALL,30 mm ID x 62 mm OD x 16"

clutch shaft, optional

1шт.

36

139743R1

RING

clutch shaft BRG inner RET

1шт.

37

527767R1

THRUST WASHER

clutch shaft

1шт.

38

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

woodruff, 5/16 x 1, B

1шт.

39

527760R11

SHAFT HOUSING

ASSEMBLY CLUTCH

1шт.

222386

CAPSCREW,Set, Hdls, 1/4" - 20 x 1/4", Flat Pt

hex, 1/4-20 x 1/4 SOC HD F FT SET

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

hex, 1/4-20 x 1/4 SOC HD CUP PT SET optional

1шт.

40

527763R1

GEAR

GEAR, ASSEMBLY DRIVE

1шт.

41

401720R1

CIRCLIP

backing plate retainer

1шт.

42

402569R1

PLATE

clutch backing

1шт.

43

see service package 534937R91 D2

1шт.

44

402572R1

PLATE

PISTON BACKING

1шт.

45

404104R1

SHAFT

SHAFT

1шт.

46

381486R1

SNAP RING,#187, 1.759", Ext

gear retaining

1шт.

47

527771R1

PINION

gear FWD/REV driven, 31T

1шт.

48

381486R1

SNAP RING,#187, 1.759", Ext

gear retaining

1шт.

49

527770R1

GEAR

FWD/REV IPTO driven 46T and pump drive 33T

1шт.
