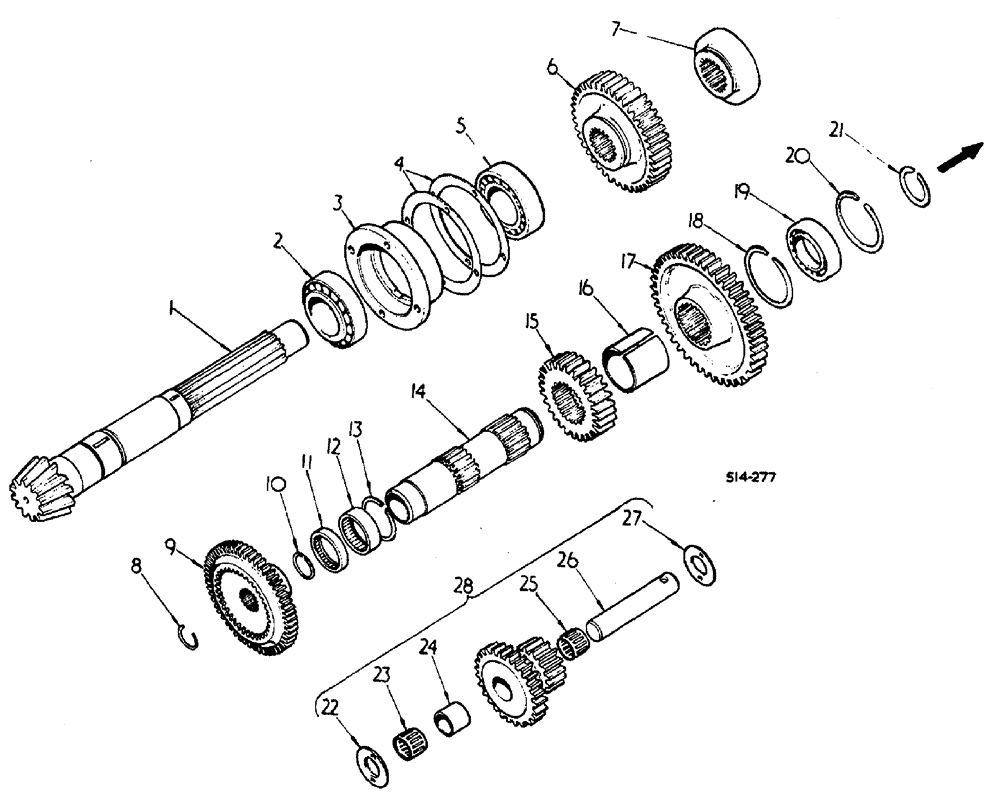

Запчасти Case 3400 (021) - RANGE TRANSMISSION - IN REAR FRAME (21) - TRANSMISSION

1

65254C1

SHAFT

SET, bevel gears matched 12/53T, 000562/up, consists of: 1 shaft 65257C1 £ 1 gear 3994642R1

1шт.

1

529650R1

GEAR-SET

bevel gears matched 14/51T up to /000561, consists of: 1 shaft 399460Rl £ 1 gear 399453R

1шт.

2

399823R91

BEARING ASSY,2.187" ID x 3.8437" OD x 0.9745, 0.7656"

ASSEMBLY, main shaft rear

1шт.

2

399824R91

ROLLER BEARING

BEARING ASSEMBLY, main shaft rear optional

1шт.

3

399825R1

BEARING CUP

CAGE, main shaft BRG

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

4

65423C1

SHIM KIT

PACKAGE, shim main shaft BRG cage service consists of: 2 shim 399826Rl £ 5 shim 399827Rl

1шт.

5

399821R91

BEARING ASSY,2.125" ID x 3.8125" OD x 0.8328"

ASSEMBLY main shaft front

1шт.

5

399822R91

ROLLER BEARING

BEARING ASSEMBLY main shaft front optional

1шт.

6

399462R1

GEAR

forward reverse sliding, 42T synchromesh drive tractors

1шт.

6

536911R2

GEAR WHEEL

HI LO sliding 44T, hydrostatic drive tractors

1шт.

7

399830R2

COLLAR

HI speed shaft synchromesh drive tractors

1шт.

8

533266R1

RING, SNAP

RING SNAP IPTO front driven shaft rear

1шт.

9

404218R1

GEAR

pump drive, 55T

1шт.

10

399837R1

SNAP RING,#118, 1.121", Ext

pump drive gear retainer

1шт.

11

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

pump drive gear

1шт.

12

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

countershaft

1шт.

12

527746R91

BEARING, NEEDLE

countershaft needle optional

1шт.

13

398264R1

SNAP RING,#215, 2.026", Ext

lo range driving gear retainer

1шт.

14

404096R1

SHAFT

range transmission

1шт.

15

404099R1

GEAR

GEAR, lo range driving, 25T, synchromesh drive tractors

1шт.

15

536910R1

PINION

GEAR, lo range driving, 24T, hydrostatic drive tractors

1шт.

16

399835R1

BUSHING

countershaft gears

1шт.

17

404097R1

GEAR

constant mesh, 46T, synchromesh drive tractors

1шт.

17

404098R1

GEAR

SPARE PART constant mesh, 40T, hydrostatic drive tractors

1шт.

18

399832R1

RING, SNAP

RING SNAP countershaft BRG INT

1шт.

19

ST572

BEARING, BALL,50 mm ID x 80 mm OD x 16 mm

countershaft front

1шт.

19

360635R91

BEARING, BALL

countershaft front

1шт.

19

528101R91

BEARING, BALL

countershaft front

1шт.

19

528102R91

BEARING, BALL

countershaft front

1шт.

19

3047867R91

BEARING, BALL

countershaft front

1шт.

19

3069304R91

BALL BEARING

countershaft front, optional

1шт.

20

399832R1

RING, SNAP

RING SNAP countershaft BRG INT

1шт.

21

327068R1

RING, SNAP

RING SNAP countershaft BRG EXT

1шт.

22

3112846R1

THRUST WASHER

idler

1шт.

23

3112844R91

BEARING, NEEDLE

reverse idler gear needle synchromesh drive tractors

1шт.

23

3113041R91

ROLLER CAGE BEARING

reverse idler gear needle synchromesh drive tractors, optional

1шт.

24

3112845R1

SPACER

BEARING idler

1шт.

25

3112844R91

BEARING, NEEDLE

reverse idler gear needle synchromesh drive tractors

1шт.

25

3113041R91

ROLLER CAGE BEARING

reverse idler gear needle synchromesh drive tractors, optional

1шт.

26

399838R2

SHAFT

SHAFT, reverse idler synchromesh drive tractors

1шт.

617944R1

PIN,3/8" x 1 3/4", Coiled

3/8" x 1 3/4", Coiled

1шт.

27

3112846R1

THRUST WASHER

idler

1шт.

28

3112848R91

10 NEEDLE BRG KIT

PACKAGE, reverse idler gear needle synchromesh drive tractors consists of: 1 GEAR

1шт.
