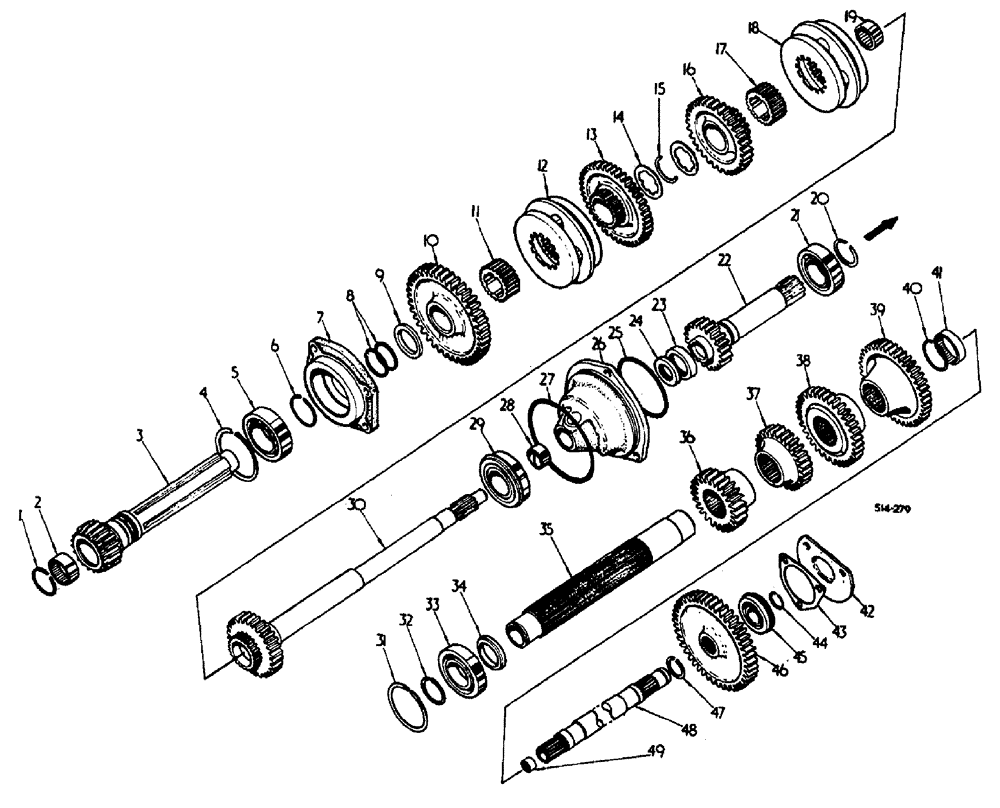

Запчасти Case 3400 (020) - SPEED TRANSMISSION - IN CLUTCH HOUSING (21) - TRANSMISSION

1

66014C1

SNAP RING

FRONT NEEDLE BRG INT SNAP

1шт.

2

613639C91

NEEDLE BEARING,38.09mm ID x 47.65mm OD x 25.4mm W

mainshaft needle 000562/UP

1шт.

2

572181R91

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

mainshaft needle up to/00561

1шт.

3

65258C1

SHAFT

main 000562/up

1шт.

3

398324R2

SHAFT

main up to/000561

1шт.

4

398334R1

SNAP RING

main shaft BRG retainer inner

1шт.

5

20161D

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

main shaft

1шт.

5

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

main shaft

1шт.

5

3048701R91

BALL BEARING

BEARING, main shaft ball

1шт.

5

704234R91

BALL BEARING

BEARING main shaft ball optional

1шт.

6

327068R1

RING, SNAP

RING SNAP main shaft BRG retainer outer

1шт.

7

534411R1

BEARING ASSY

CAGE ASSEMBLY, main shaft BRG

1шт.

NLS

NO LONGER SERVICED

4шт.

8

404281R1

RING,Locking, 46.08mm ID x 50.8mm OD x 2.37mm Thk

main shaft LUB line seal

2шт.

9

398332R1

WASHER

RING

1шт.

10

398331R1

GEAR

GEAR, 1ST speed driven, 41T

1шт.

11

398325R1

HUB

1ST and 2ND speed shift

1шт.

12

536945R1

SYNCHRONIZER

ASSEMBLY

1шт.

536946R1

CUP ASSY.

SYNCHRONIZER

2шт.

13

398330R1

GEAR

GEAR, 2ND speed driven, 33T

1шт.

14

398328R1

THRUST WASHER

main shaft

2шт.

15

398329R1

CIRCLIP

SYNCHRONIZER locating

1шт.

16

398327R1

GEAR

GEAR, 4TH speed driven, 33T

1шт.

17

398325R1

HUB

3RD and 4TH speed shift

1шт.

18

536945R1

SYNCHRONIZER

ASSEMBLY

1шт.

536946R1

CUP ASSY.

SYNCHRONIZER

2шт.

19

531168R91

BEARING, NEEDLE,Needle, 34.91mm ID x 44.44mm OD x 15.88mm W

SHAFT clutch

1шт.

20

379511R1

SNAP RING,#177, 1.657", Ext

countershaft bearing

1шт.

21

ST342

BEARING, BALL,45mm ID x 85mm OD x 19mm W

IPTO DRIVE SHAFT

1шт.

21

65354C91

BALL BEARING

BEARING, IPTO drive shaft ball optional

1шт.

22

66347C2

CARRIER

SHAFT, clutch

1шт.

23

398321R91

OIL SEAL

IPTO drive shaft oil up to/000614

1шт.

23

376930R91

OIL SEAL,39.24mm ID x 57.35mm OD x 8mm Thk

IPTO drive shaft 000615/up

1шт.

24

382230R91

OIL SEAL

clutch shaft oil

1шт.

24

65418C1

SEAL

SEAL, clutch shaft oil optional

1шт.

25

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3-3/4 x 4 x 1/8

1шт.

26

398318R11

NO LONGER SERVICED

CAGE ASSEMBLY, IPTO and clutch shaft ERG complete w/bushing

1шт.

27

343942R1

O-RING,5.359" ID x 0.139" Width

5-3/8 x 5-5/8 x 1/8 ERG CAGE

1шт.

28

398319R1

BUSHING,30.05mm ID x 33.48mm OD x 15.88mm L

SHAFT clutch

1шт.

29

398323R1

BALL BEARING

BEARING, clutch shaft ball

1шт.

29

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

clutch shaft

1шт.

29

42347D

BALL BEARING

BEARING, clutch shaft ball

1шт.

29

3066862R91

BALL BEARING

BEARING, clutch shaft ball

1шт.

29

528088R91

BALL BEARING

BEARING, clutch shaft ball

1шт.

29

3066861R91

JOURNAL

BEARING, clutch shaft ball optional

1шт.

30

398320R1

SHAFT

SHAFT, clutch

1шт.

31

574964R1

RING, SNAP

RING SNAP countershaft BRG

1шт.

32

379511R1

SNAP RING,#177, 1.657", Ext

countershaft BRG

1шт.

33

452883R91

BALL BEARING

BEARING, countershaft ball

1шт.

33

13176D

BALL BEARING,2.257" ID x 3.3465" OD x 0.748"

BEARING, countershaft ball

1шт.

33

ST201

BEARING, BALL,45mm ID x 85mm OD x 19mm W

countershaft

1шт.

33

704704R91

BALL BEARING

BEARING, countershaft ball

1шт.

33

705238R91

BALL BEARING

BEARING, countershaft ball

1шт.

33

528100R91

BALL BEARING

BEARING, countershaft ball optional

1шт.

34

398268R1

BUSHING

RING spacer

1шт.

35

404089R1

SHAFT

SHAFT, speed transmission

1шт.

36

404093R1

GEAR

GEAR, 1ST speed drive, 26T 15 mph transmission, low speed first

1шт.

37

404092R1

PINION

GEAR, 2ND speed drive, 34T

1шт.

38

404091R1

PINION

GEAR, 4TH speed drive, 43T

1шт.

39

404090R1

PINION

GEAR, constant mesh driven, 39T

1шт.

40

398264R1

SNAP RING,#215, 2.026", Ext

constant mesh driven gear ret

1шт.

41

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

countershaft front

1шт.

41

527746R91

BEARING, NEEDLE

countershaft front, optional

1шт.

42

398259R1

LARGE PLATE

PLATE, LARGE RETAINER, IPTO driven shaft front BRG CAP

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

43

398260R2

GASKET

IPTO driven shaft FRT BRG retainer

1шт.

44

555601R1

RING, SNAP

RING SNAP IPTO driven shaft front bearing retainer

1шт.

45

65353C91

BALL BEARING

BEARING, IPTO driven shaft front ball

1шт.

45

ST367

BEARING, BALL,25 mm ID x 62 mm OD x 17 mm

IPTO driven shaft front ball optional

1шт.

46

404214R1

GEAR

IPTO driven, 46T, tractors w/dual speed IPTO

1шт.

47

399837R1

SNAP RING,#118, 1.121", Ext

IPTO driven gear retainer

1шт.

48

536748R1

SHAFT ASSY.

IPTO driven

1шт.

49

533325R91

BEARING, NEEDLE

IPTO driven shaft needle

1шт.

49

538467R91

BEARING, NEEDLE

IPTO driven shaft needle optional

1шт.
