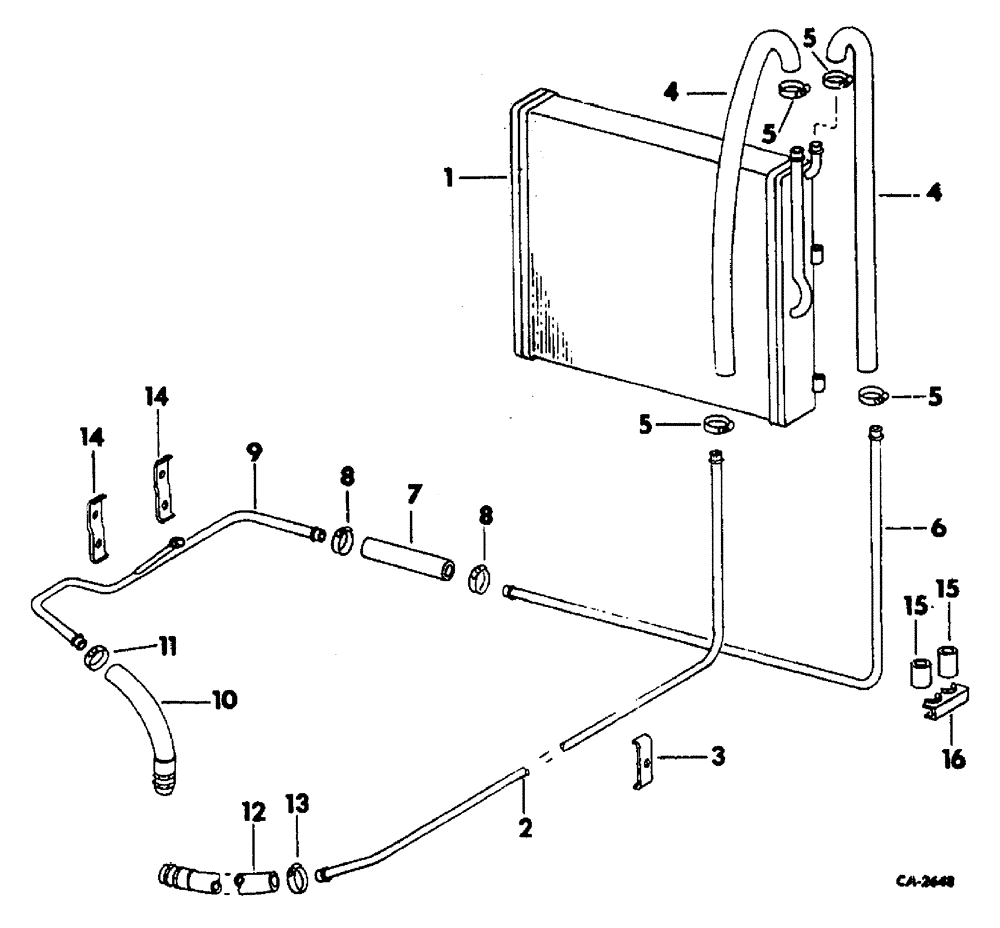

Запчасти Case 3400 (007) - OIL COOLER - HYDROSTATIC DRIVE TRACTORS (21) - TRANSMISSION

1

536349R1

COOLER

SPARE PART oil

1шт.

22963R1

HEADED PIN,5/16" x 2 1/4"

5/16 x 1-3/4 STD HD

2шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

231-1445

NUT,5/16"-18, GB

Nylon

1шт.

2

536424R1

SPARE PART R. H. to cooler intake

1шт.

3

536426R1

SPARE PART cooler tube

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

hex HD CAP, 5/16-18 x 2 ZND

1шт.

80681

LOCK WASHER,5/16"

1шт.

4

536432R1

HYDRAULIC HOSE,0.62" ID x 14.00", SAE 100R6

Cooler Tube to Cooler

2шт.

3116212R1

ELBOW

TUBE

2шт.

65795C1

HOSE

connection

2шт.

5

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

HOSE

8шт.

6

536427R1

SPARE PART front cooler return

1шт.

1

536428R1

HYDRAULIC HOSE,0.62" ID x 5.00", SAE 100R6

Front to L.H. Cooler Tube

1шт.

8

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

HOSE

2шт.

9

536429R1

SPARE PART ASSEMBLY, L. H. cooler return

1шт.

10

536423R1

HYDRAULIC HOSE,0.62" ID x 8.00", SAE 100R6

Cooler Tube to Power Train

1шт.

9411106

ELBOW

45 DEG

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

HOSE

2шт.

12

536423R1

HYDRAULIC HOSE,0.62" ID x 8.00", SAE 100R6

Cooler Tube to Power Train

1шт.

13

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

1шт.

14

536431R1

SPARE PART L. H. TUBE

2шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

hex HD CAP, 5/16-18 x 1-1/2 ZND

4шт.

80681

LOCK WASHER,5/16"

4шт.

15

536410R1

BUSHING

split

2шт.

16

536455R1

CLAMP

TUBES, hydraulics

1шт.

3116314R1

TEE

SWIVEL, special

1шт.

9410230

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, Pipe

ADAPTOR, long straight temp. oil warning

1шт.
