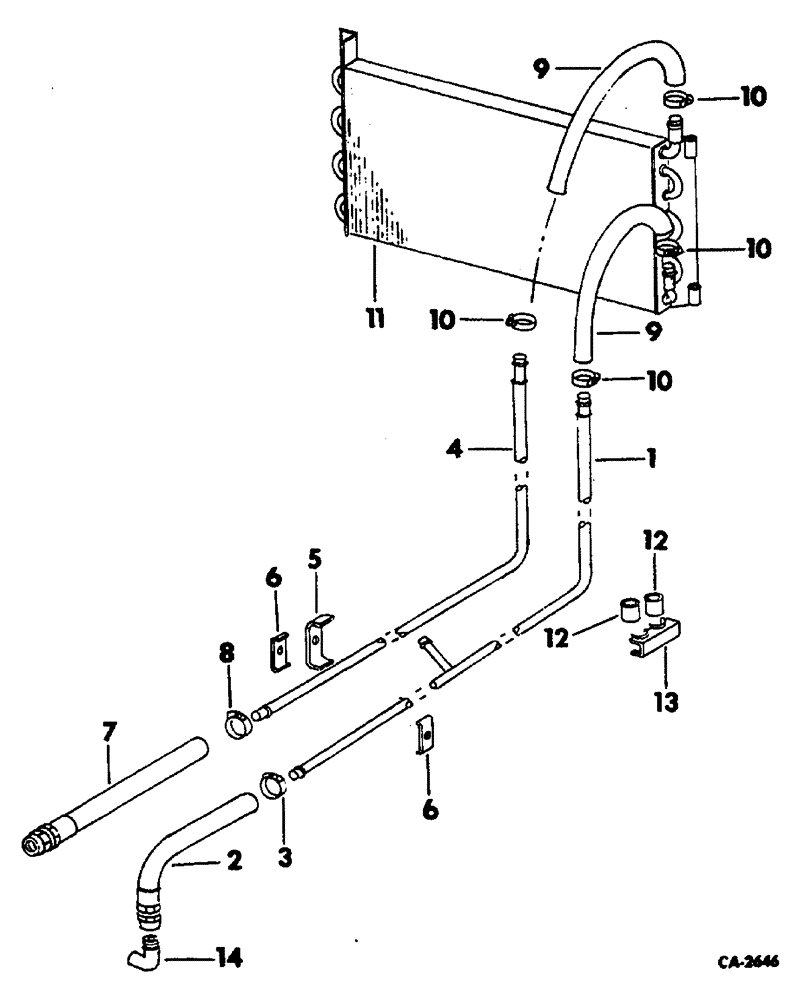

Запчасти Case 3400 (006) - OIL COOLER - SYNCHROMESH TRANSMISSION TRACTORS (21) - TRANSMISSION

1

3116214R1

TUBE

ASSEMBLY, R. H. cooler return for tractors w/backhoe

1шт.

1

536420R1

SPARE PART ASSEMBLY, R. H. cooler return

1шт.

2

67193C1

SPARE PART cooler tube to power train, Serial Range: up-3400/545

1шт.

2

66626C1

HOSE, cooler tube to pump 3400/546 up

1шт.

3

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

HOSE

2шт.

4

538034R1

SPARE PART ASSEMBLY, R. H. to cooler intake

1шт.

4

536424R1

SPARE PART ASSEMBLY, R. H. to cooler intake for tractors w/backhoe

1шт.

5

536426R1

SPARE PART cooler tube

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

hex HD CAP, 5/16-18 x 2 ZND

1шт.

80681

LOCK WASHER,5/16"

1шт.

6

536426R1

SPARE PART L. H. TUBE

2шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

hex HD CAP, 5/16-18 x 1-1/2 ZND

2шт.

80681

LOCK WASHER,5/16"

2шт.

7

67043C1

HOSE

cooler return

1шт.

364847R1

SPRING

HOSE, cooler return

1шт.

8

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

HOSE

1шт.

9

538036R1

HOSE

cooler tube to cooler 19 IN

2шт.

9

536432R1

HYDRAULIC HOSE,0.62" ID x 14.00", SAE 100R6

Cooler Tube to Cooler

2шт.

65795C1

HOSE

connection

2шт.

3116212R1

ELBOW

TUBE

2шт.

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

HOSE for tractors w/backhoe

4шт.

10

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

HOSE

4шт.

11

406407R1

NO LONGER SERVICED

COOLER, oil

1шт.

11

536349R1

COOLER

SPARE PART oil for tractors w/backhoe

1шт.

22963R1

HEADED PIN,5/16" x 2 1/4"

5/16 x 2-1/4 STD HD

2шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

231-1445

NUT,5/16"-18, GB

Nylon

1шт.

12

536410R1

BUSHING

split

2шт.

13

536455R1

CLAMP

TUBES, hydraulic

1шт.

14

3116213R1

ELBOW

TUBE, Serial Range: up-3400/545

1шт.
