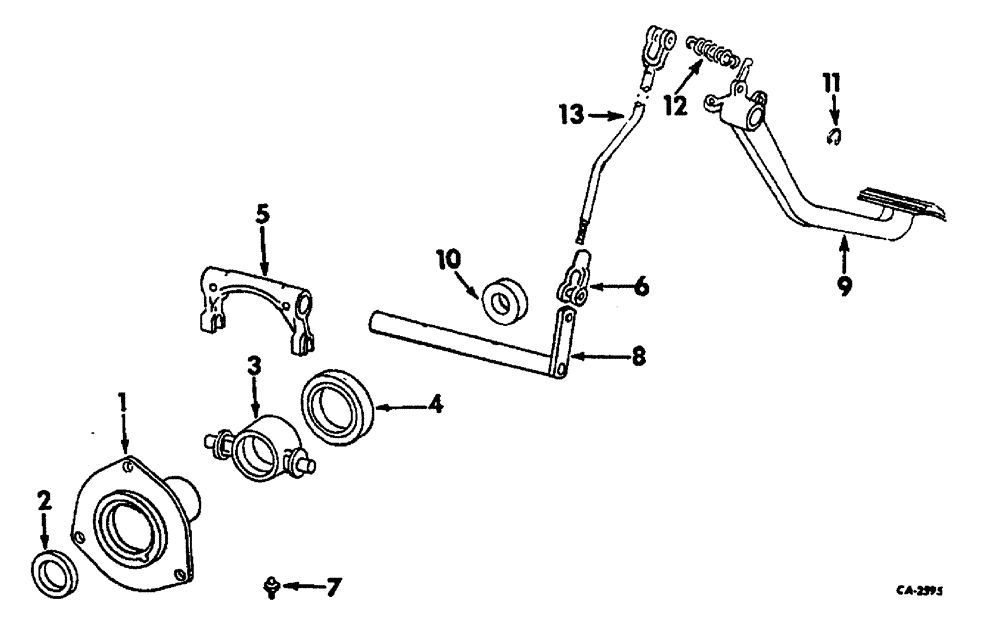

Запчасти Case 3400 (032) - CLUTCH CONTROLS (18) - CLUTCH

1

398236R1

CARRIER

clutch release sleeve

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

hex HD PIN loctite fitting, 3/8 x 1-3/8

3шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065)

3шт.

2

376930R91

OIL SEAL,39.24mm ID x 57.35mm OD x 8mm Thk

release sleeve carrier oil

1шт.

3

360501R2

SLEEVE CYLINDER

clutch release

1шт.

4

59879D

BALL BEARING,60.33mm ID x 88.9mm OD x 18.67mm W

clutch release ball OPT

1шт.

4

365866R91

THRUST BEARING

clutch release ball

1шт.

4

365865R91

BEARING ASSY,3.812" ID x 2.26" OD x 0.807"

clutch release ball

1шт.

4

528098R92

BALL BEARING,2.46" ID x 3.5" OD x 0.783"

clutch release ball

1шт.

5

398342R1

FORK

clutch release

1шт.

617938

PIN, coiled spring 5/16 x 1-3/8 HV

2шт.

6

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

light ADJ ROD END, 3/8-24 x 2-1/2

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

rod end, 3/8 x 1-3/32

2шт.

107762

WASHER,3/32" x 5/8"

2шт.

7

109461

LUBE NIPPLE,1/8"-27 x .66 lg

PTF, 00557/up

1шт.

7

Q3618

LUBE NIPPLE,5/16"-32 x .66 lg

fitting, 5/16-32 NEF STR LUB up to/00556

1шт.

8

398237R1

SHAFT

SHAFT ASSEMBLY, clutch release

1шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

2шт.

9

530805R1

PEDAL

W/BUSHING, clutch

1шт.

21714R1

WASHER

29/32 x 1-1/2 x 11 GA C 2

1шт.

539246R1

BUSHING

clutch pedal

1шт.

138675

SCREW,Hex, 5/16" - 18 x 1 1/4"

hex HD OV PT SET, 5/16-18 x 1-1/4

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

10

610463R91

BALL BEARING

BEARING, clutch pilot ball

1шт.

11

454331R1

SNAP RING,#87, Ext

Clutch pedal

1шт.

12

539150R1

SPRING

SPARE PART SPRING, clutch pedal return

1шт.

13

536288R1

ROD

ASSEMBLY, clutch operating

1шт.

365720R1

PIPE

clutch release sleeve grease up to/00556

1шт.
