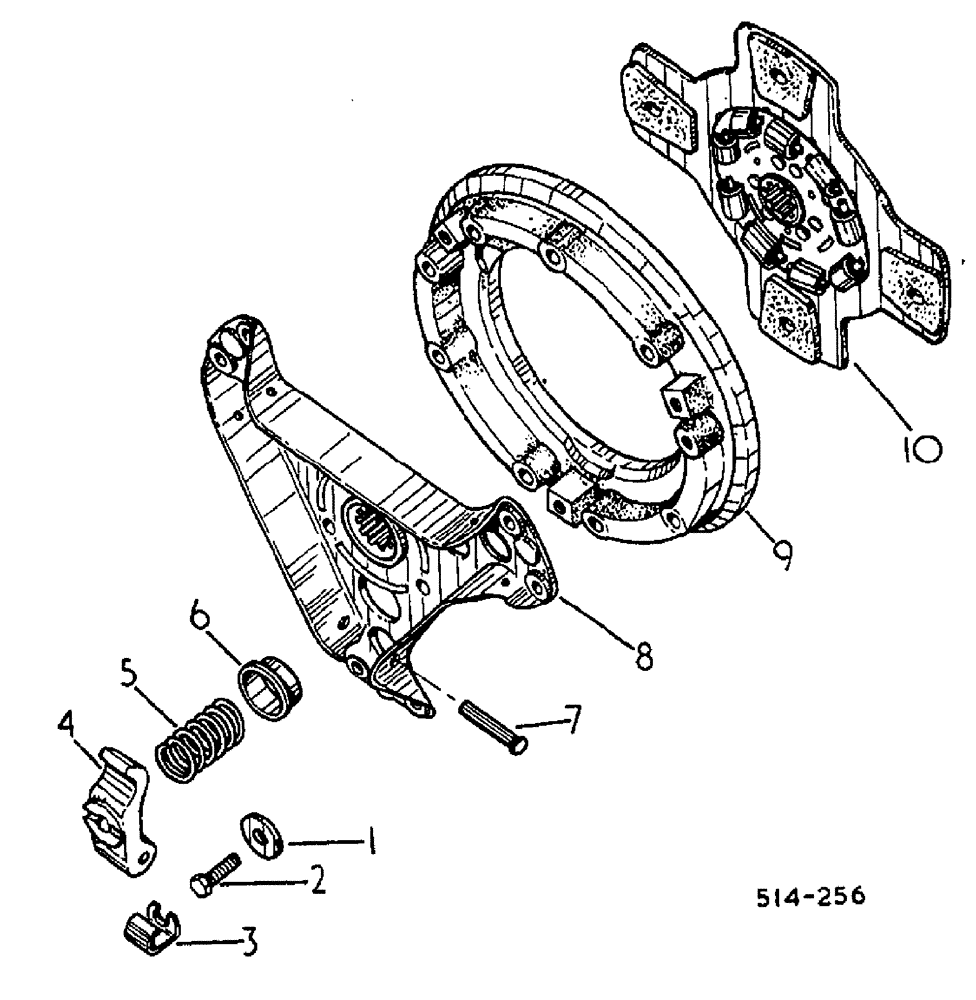

Запчасти Case 3400 (026) - CLUTCH - FORWARD AND REVERSE (18) - CLUTCH

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

6шт.

1

WASHER

3шт.

2

69911C1

KIT

COVER PARTS w/screw, clip, nut, and washer

1шт.

NUT, 5/16-24 hex

3шт.

3

CUP, return

3шт.

4

69912C1

KIT

PIN, lever and pivot

1шт.

5

69909C1

PIVOT ASSY.

KIT, pressure spring and cup

1шт.

6

CUP, spring

3шт.

7

PIN, pivot

3шт.

8

69914C1

HUB ASSY.

KIT, bracket

1шт.

9

69913C1

KIT

pressure plate

1шт.

10

530402R3

DISC

ASSEMBLY, clutch driven disc, 3 disc

1шт.
