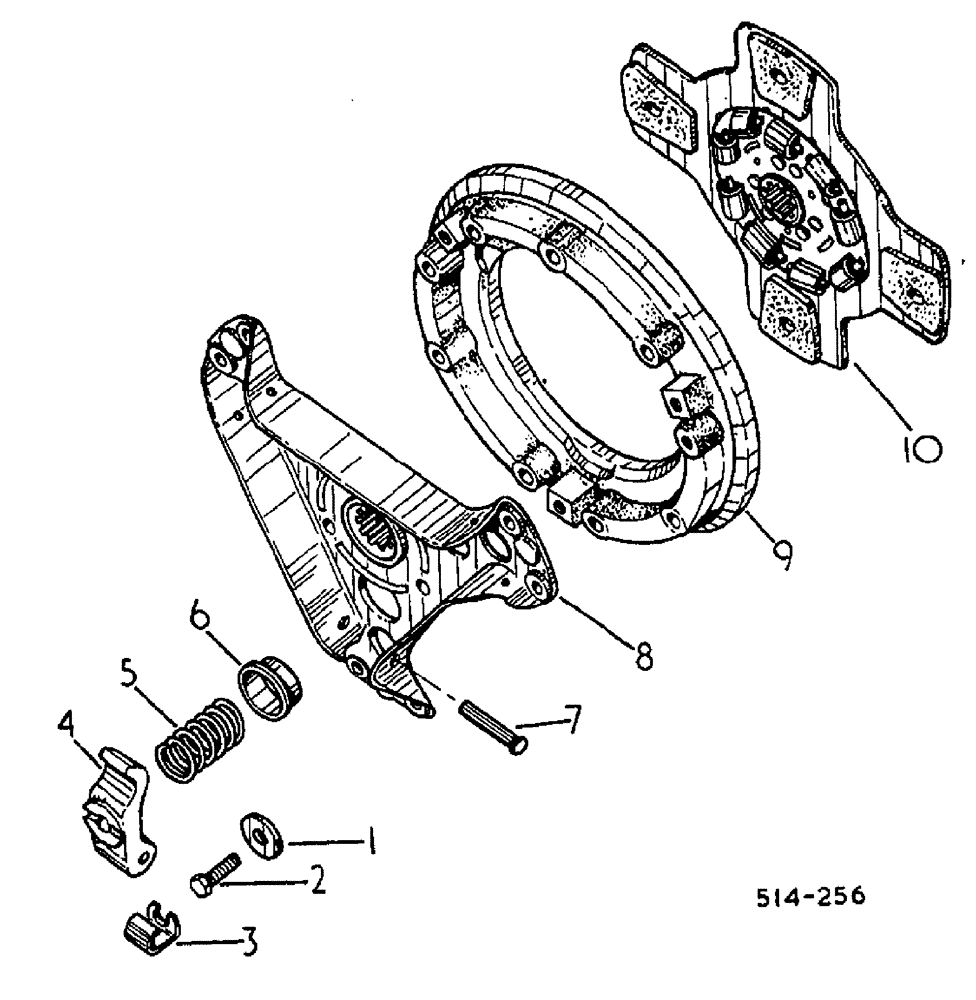

Запчасти Case 3400 (025) - CLUTCH (18) - CLUTCH

*

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

6шт.

1

WASHER

3шт.

2

69911C1

KIT

COVER PARTS w/screw, clip, nut, and washer

1шт.

*

NUT, 5/16-24 hex

3шт.

3

CLIP, return

3шт.

4

69912C1

KIT

PIN, lever and pivot

1шт.

5

69910C1

SPARE PART

KIT, pressure spring and cup

1шт.

6

CUP, spring

3шт.

7

PIN, pivot

3шт.

8

69914C1

HUB ASSY.

KIT, bracket

1шт.

9

69913C1

KIT

KIT, pressure plate

1шт.

10

401479R93

DRIVEN PLATE

ASSEMBLY, clutch driven disc, 3 disc

1шт.

10

401479R93R

REMAN-CLUTCH DISC

Reman for New PN 401479R93

1шт.

10

401479R93C

CORE-CLUTCH DISC

Return Number

1шт.
