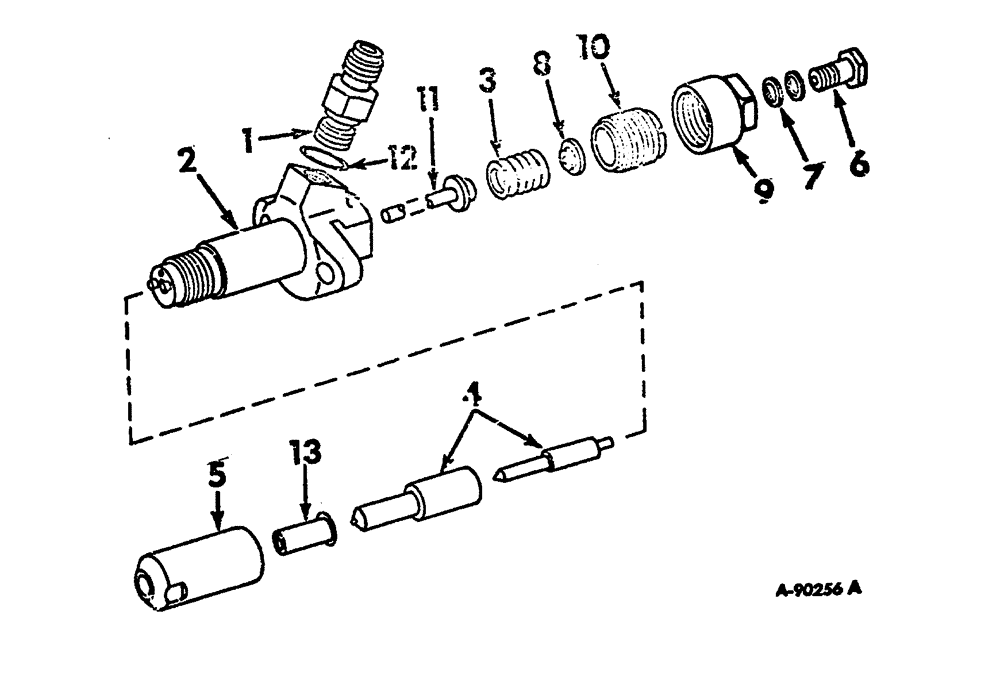

Запчасти Case 3400 (134) - INJECTION NOZZLE (10) - ENGINE

3055423R93

HOLDER

ASSEMBLY, injection nozzle

3шт.

3055298R92

NOZZLE HOLDER

less Ref NO. 4

3шт.

1

3056940R1

CONNECTOR, ELEC

SPARE PART ASSEMBLY, fuel inlet

1шт.

2

BODY, injection nozzle holder, not serviced separately, order holder ASSEMBLY 3055423R93

1шт.

3

759844R1

SPRING

1шт.

4

3055428R92

FUEL SYSTEM INJECTOR

1шт.

5

3133042R1

NOZZLE HOLDER

NUT, cap

1шт.

6

3132999R1

HOLLOW SCREW

inlet union

1шт.

7

3053133R1

SEALING RING,M8 x 11.5 x 1

nozzle packing

6шт.

8

787049R1

CUP

BOLT, guide

1шт.

9

3056943R1

CROWN NUT

CAP nozzle holder

1шт.

10

3132998R1

SCREW

CAP, spring

1шт.

11

3056939R1

SPINDLE

w/guide

1шт.

12

3056941R1

SEALING WASHER,6.5mm ID x 12mm OD x 1mm Thk

WASHER

1шт.

13

not used in this application

1шт.
