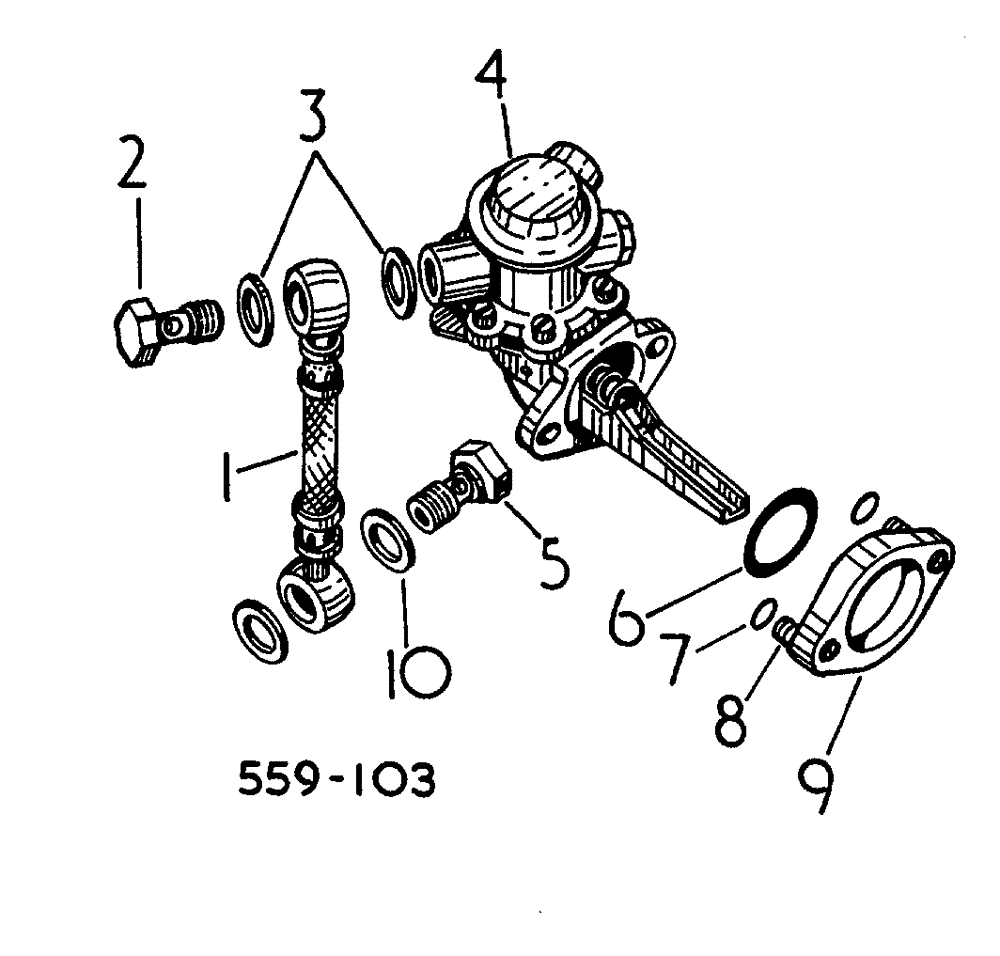

Запчасти Case 3400 (133) - FUEL FEED PUMP AND CONNECTIONS (10) - ENGINE

1

3138804R1

SPARE PART TUBE ASSEMBLY, fuel

1шт.

2

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

hollow

1шт.

3

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

2шт.

4

PUMP, feed for components, see list of parts under details of feed pump

1шт.

5

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

hollow

1шт.

6

3055389R2

O-RING,2.5mm Thk x 32mm ID, 70 Duro

1шт.

7

3132869R1

O-RING

2шт.

8

stud not serviced

2шт.

9

3055391R22

NO LONGER SERVICED

FLANGE/Retired FLANGE

1шт.

10

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

2шт.
