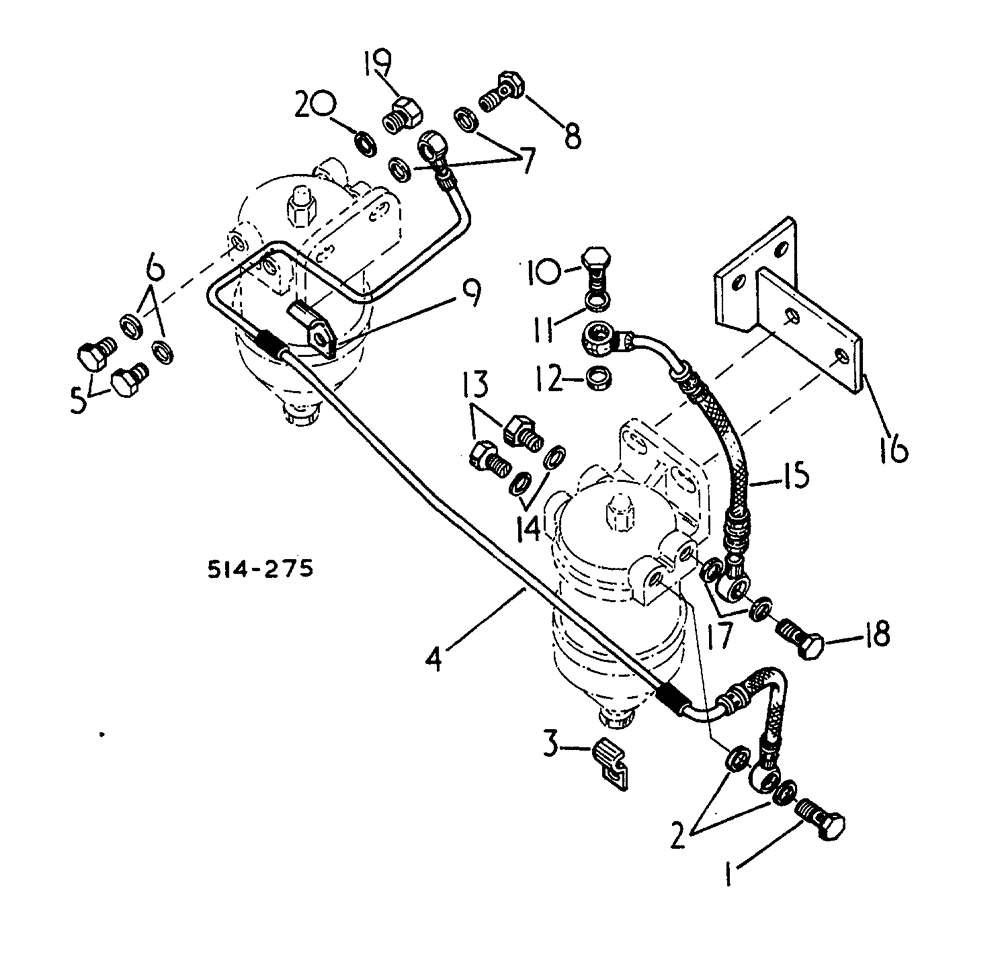

Запчасти Case 3400 (131) - FUEL INJECTION (10) - ENGINE

1

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

hollow

1шт.

2

993610R1

RING, packing

2шт.

3

3056927R1

CLAMP

CLIP, fuel line

1шт.

4

3144501R1

HOSE

fuel

1шт.

5

712616R1

PLUG,Hex, M14 x 1.5

Closing

2шт.

6

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

2шт.

7

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

2шт.

8

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

hollow

1шт.

9

3132052R1

CLIP

fuel line

1шт.

10

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

hollow

1шт.

11

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

1шт.

12

3055890R1

WASHER

RING, packing

1шт.

13

712616R1

PLUG,Hex, M14 x 1.5

Closing

2шт.

14

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

2шт.

15

3144347R2

FUEL HOSE

HOSE, fuel

1шт.

16

3144498R91

BRACKET

fuel filter CPTE

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

3050221R1

LOCK WASHER

lock 3/8

2шт.

17

993610R1

RING, packing

2шт.

18

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

hollow

1шт.
