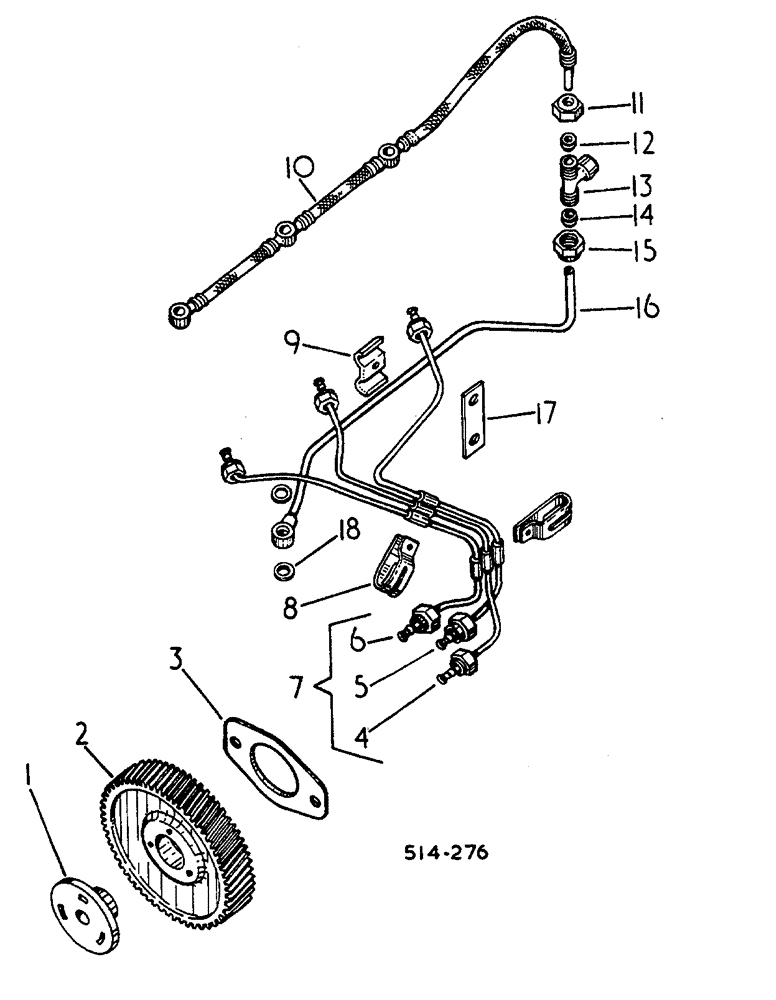

Запчасти Case 3400 (130) - FUEL INJECTION PIPES (10) - ENGINE

1

3055067R1

HUB

PUMP hub gear injection

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

8.5 x 19 x 2.5

3шт.

2

3056885R3

PINION

GEAR, injection pump

1шт.

3

3055384R1

GASKET

PUMP, fuel injection

1шт.

4

3144407R91

PIPE

TUBE, injection cylinder 2 CPT

1шт.

5

3144409R91

PIPE

TUBE, injection cylinder 3 CPT

1шт.

6

3144405R91

PIPE

TUBE, injection cylinder 1 CPT

1шт.

7

3144404R91

INJECTION PIPE

PIPES, set of 3 injection, CPT

1шт.

8

3132766R1

CLAMP

pipe

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

3052189R1

BELLEVILLE WASHER

lock

2шт.

109084

NUT,1/4"-20, G5

1шт.

9

3055386R1

CLAMP

CLIP, fuel lines

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

1шт.

10

3132826R1

LINE

leak

1шт.

11

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

coupling

1шт.

12

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

cutting

1шт.

13

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

T

1шт.

14

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

cutting

1шт.

15

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

coupling

1шт.

16

3144414R91

LBJE overflow

1шт.

17

3132174R91

link fixing fuel line

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

3050221R1

LOCK WASHER

lock, 3/8

1шт.

18

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

2шт.
