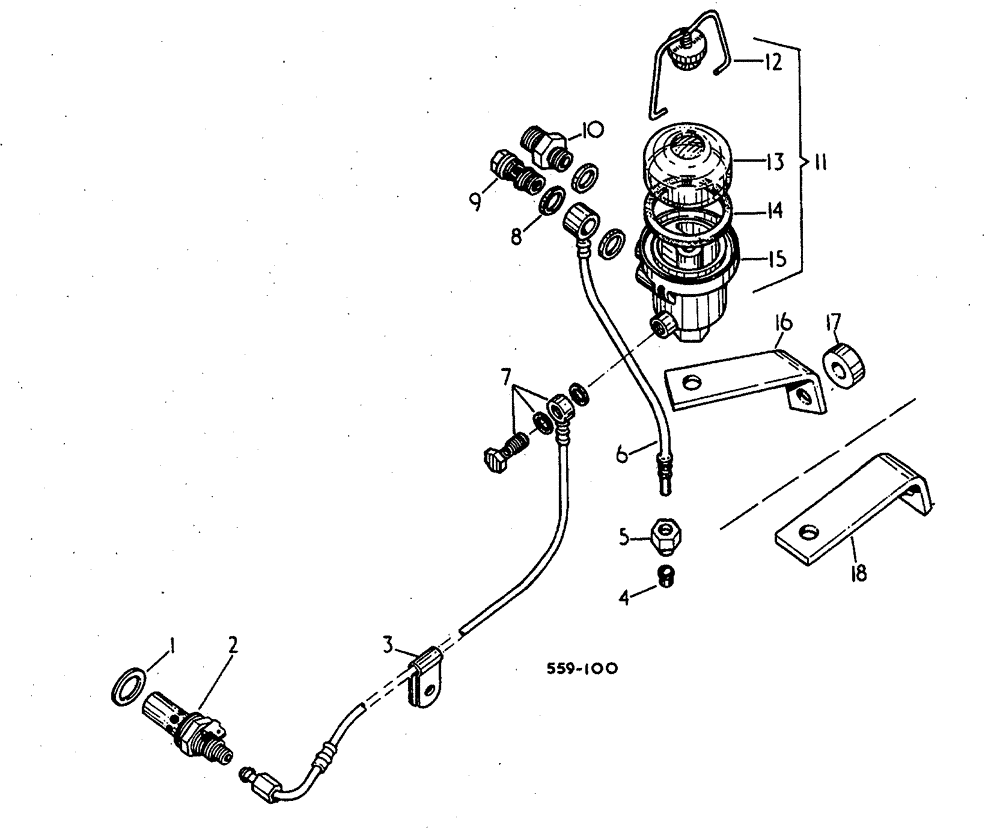

Запчасти Case 3400 (128) - THERMOSTART (10) - ENGINE

1

933945R1

SEALING RING,M23 x 28 x 2.5

thermostart element

1шт.

2

3112805R1

THERMOSTAT

SPARE PART ELEMENT, start type 357-15

1шт.

3

3112817R1

CLAMP

element feed pipe

1шт.

181361

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5

3/8 UNF x 7/8

1шт.

103321

LOCK WASHER,3/8"

1шт.

4

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

1шт.

5

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

1шт.

6

3116557R91

PIPE, reservoir supply

1шт.

7

3112815R91

PIPE

SPARE PART ASSEMBLY, element feed

1шт.

8

3113045R1

WASHER

reservoir banjo sealing

3шт.

9

3064788R1

BOLT,1/2" - 20 x 0.875", Brass

banjo

1шт.

10

3116556R1

ADAPTER

reservoir feed

1шт.

11

3112813R92

RESERVOIR

FUEL, thermostart

1шт.

12

3116083R91

CLAMP

BAIL ASSEMBLY

1шт.

13

3116084R1

BOWL

GLASS

1шт.

14

705886R1

SEAL

GASKET

1шт.

15

3116085R1

BODY

1шт.

16

3116224R1

BRACKET

reservoir

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

1шт.

17

3116225R1

SPACER

1шт.

18

not applicable

1шт.
