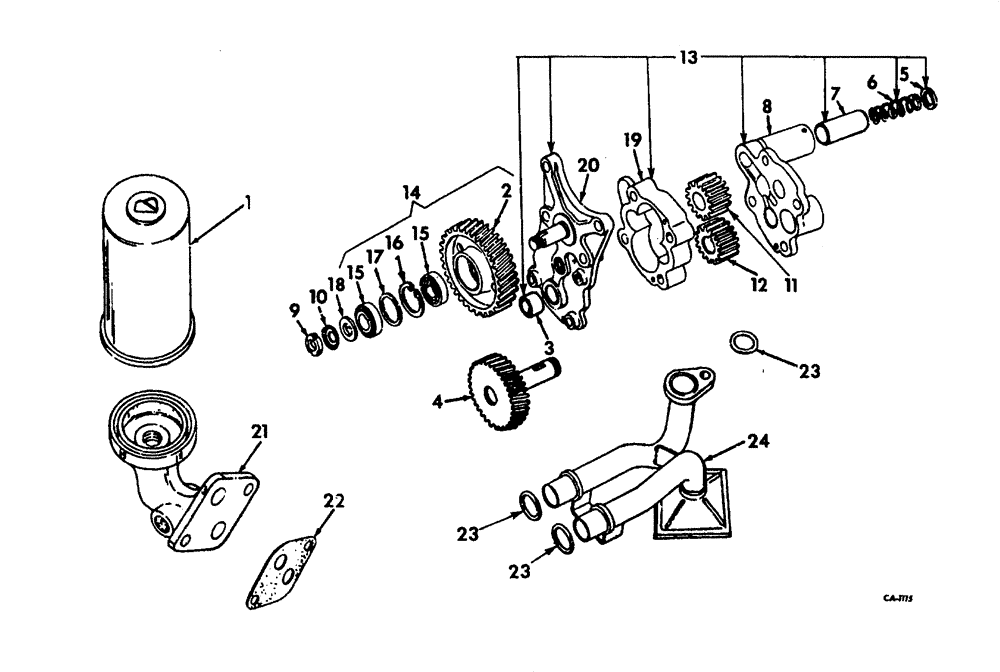

Запчасти Case 3400 (124) - LUBRICATING OIL PUMP AND FILTER (10) - ENGINE

103320

LOCK WASHER,5/16"

4шт.

NLS

NO LONGER SERVICED

SCREW, hex SOC HD CAP, 5/16-18 x 1

4шт.

1

3136046R93

FILTER, ENGINE OIL

FILTER, OIL optional with 398080R2

1шт.

1

398080R2

ENGINE OIL FILTER

oil optional with 3136046R93

1шт.

2

3055291R1

PINION

GEAR

1шт.

3

3055104R1

BUSHING

SPARE PART

1шт.

4

3136431R91

PUMP

GEAR ASSEMBLY, drive

1шт.

5

3139620R1

SPRING WASHER

spring

1шт.

6

3136264R1

SPRING

pressure relief valve

1шт.

7

3055202R2

VALVE

piston relief

1шт.

8

COVER ASSEMBLY, oil pump, not serviced separately

1шт.

103320

LOCK WASHER,5/16"

4шт.

179823

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

4шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

103387

COTTER PIN,1/8" x 1 1/2"

1шт.

9

3055295R1

NUT

shaft

1шт.

10

3055296R1

WASHER

PLATE, locking

1шт.

11

3132833R1

GEAR

idler

1шт.

12

3136439R1

GEAR

oil pump

1шт.

13

3136435R91

ENGINE OIL PUMP

CARRIER ASSEMBLY, W3 roll pin 932597Rl

1шт.

932597R1

LOCK PIN,M10 x 14, Slotted

Roll

3шт.

14

3055291R11

PINION

GEAR ASSEMBLY, idler

1шт.

15

3055293R91

TAPERED BEARING

BEARING ASSEMBLY, roller optional with 3055294R91

2шт.

15

3055294R91

TAPERED BEARING

ASSEMBLY optional with 3055293R91

1шт.

16

933579R1

SNAP RING,M35, Int

1шт.

17

3055292R1

WASHER

WASHER

1шт.

18

3055371R1

WASHER

WASHER, idler gear

1шт.

19

CASE, oil pump gear, not serviced separately

1шт.

20

CARRIER, not serviced separately

1шт.

21

3136047R1

HEAD

SOCKET, oil filter

1шт.

NLS

NO LONGER SERVICED

2шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

Disc

2шт.

444687

PLUG,Hex Soc, 1/8"-27

Pipe, for blacking off oil pressure switch

1шт.

22

3055237R1

GASKET

oil filter socket

1шт.

23

3055199R1

O-RING

3шт.

24

3132828R91

PIPE CLAMP

ASSEMBLY, oil pressure + suction

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

1шт.
