(116) - FUEL INJECTION PUMP

Запчасти Case 3400 (116) - FUEL INJECTION PUMP (10) - ENGINE

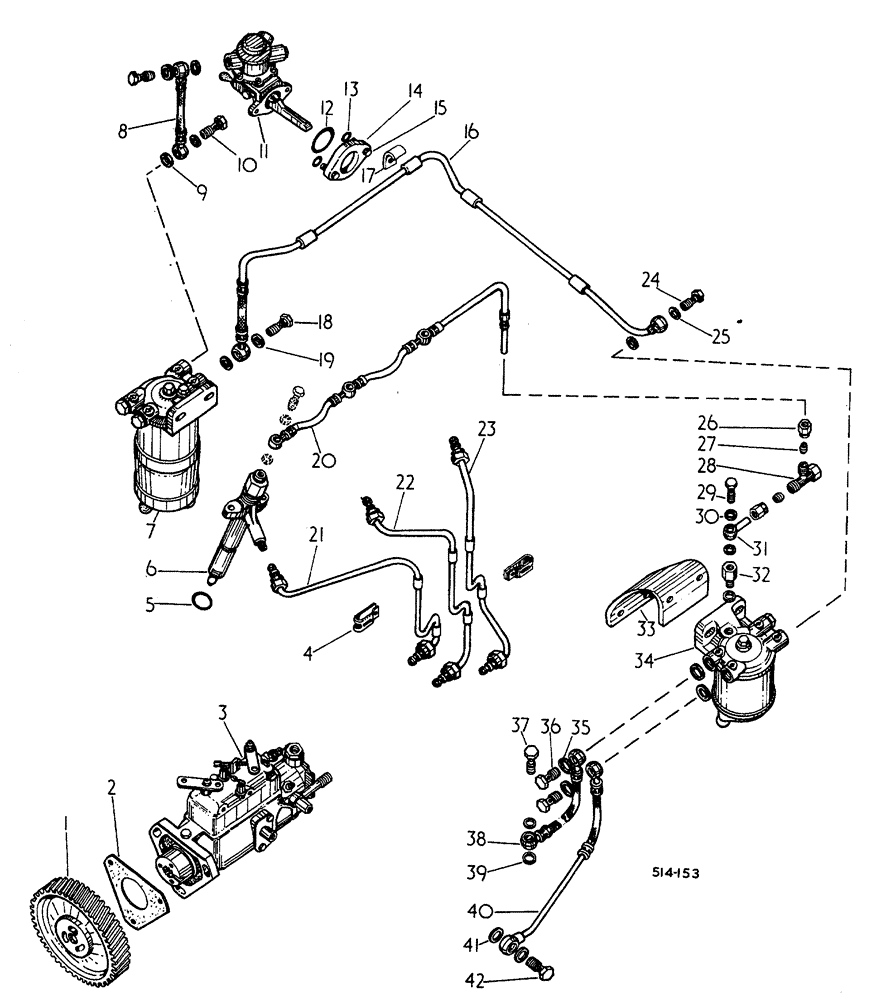

Схема запчастей Case 3400 - (116) - FUEL INJECTION PUMP (10) - ENGINE
33
10
8
27
42
31
25
22
15
32
20
30
23
26
38
12
40
39
6
2
21
34
19
11
13
37
9
35
3
29
18
41
1
5
7
16
17
28
24
14
4
36
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3144179R91

GEAR

ASSEMBLY, injection pump

1шт.

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

3шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

.335 x .748 x .098

3шт.

2

3138779R1

GASKET

fuel injection pump

1шт.

3

3138780R91

PUMP

ASSEMBLY, fuel injection synchromesh drive tractors

1шт.

3

3138781R91

SPARE PART ASSEMBLY, fuel injectio hydrostatic drive tractors, for components, see list of parts under details of fuel injection pump

1шт.
