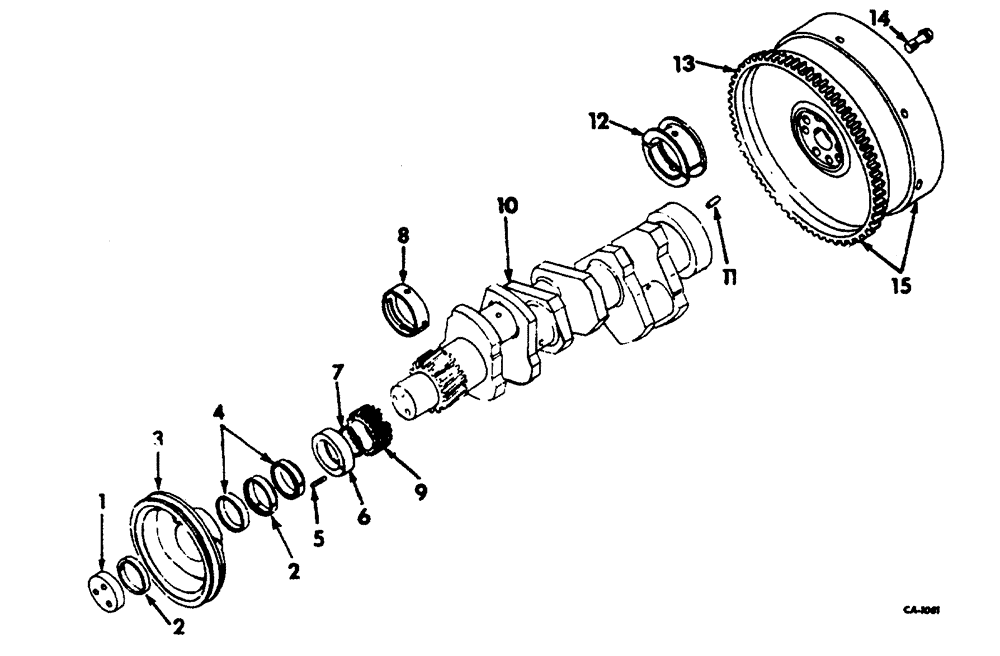

Запчасти Case 3400 (114) - CRANKSHAFT, FLYWHEEL AND BEARINGS (10) - ENGINE

1

3055154R1

WASHER

pressure

1шт.

308464R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

3шт.

2

3138874R1

BEARING WASHER

RING

1шт.

2

3055153R1

SPACER,56.64mm ID x 61.72mm OD x 10.16mm L

pressure used w/pulley 3136251R1

2шт.

3

3144613R1

PULLEY

crankshaft C.A.V. 165037 up, bosch 21314 up

1шт.

3

3138790R2

PULLEY

crankshaft C.A.V. up to 165036, bosch, Serial Range: up-21313

1шт.

3

3136251R1

PULLEY

PULLEY, crankshaft order pulley 3138790R2 w/ring 3138874Rl

1шт.

4

3055152R91

RING

ELEMENT, spring tightener used w/pulley 3136251Rl

2шт.

5

932681R1

DOWEL,4mm OD x 24mm L

Pin

1шт.

6

3055151R31

RING

RING ASSEMBLY, distance

1шт.

1

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

8

3055130R21

CRANKSHAFT BEARING

ASSEMBLY, crankshaft main

3шт.

8

3056832R21

BEARING ASSY

ASSEMBLY, cranskshaft main .010 U/S

3шт.

8

3056877R21

BEARING ASSY

ASSEMBLY, crankshaft main .020 U/S

3шт.

8

3055779R21

BEARING ASSY

ASSEMBLY, crankshaft main .030 U/S

3шт.

9

3055028R1

PINION

GEAR, crankshaft pinion, 33T

1шт.

10

3136045R92

NO LONGER SERVICED

crankshaft w/bearings, STD C.A.V. up to 165036, bosch, Serial Range: up-21313

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

Roll

2шт.

11

37-1616

DOWEL,3/8" x 1"

dowel, 3/8 x 1

1шт.

12

3055129R21

CRANKSHAFT BEARING

ASSEMBLY, crankshaft main

1шт.

12

3056870R11

CRANKSHAFT

ASSEMBLY, main .010 U/S

1шт.

12

3056875R11

BEARING ASSY

ASSEMBLY, main .020 U/S

1шт.

12

3055776R11

BEARING ASSY

ASSEMBLY, main .030 U/S

1шт.

13

60883H

RING GEAR

1шт.

14

3132159R2

BOLT,Hex, 1/2" - 20 x 63.5mm

flywheel

7шт.

15

3136044R11

ENGINE FLYWHEEL

FLYWHEEL ASSEMBLY C.A.V. up to 165036, bosch, Serial Range: up-21313

1шт.

15

3144614R91

ENGINE FLYWHEEL

FLYWHEEL ASSEMBLY C.A.V. 165037 up, bosch 21314 up

1шт.
