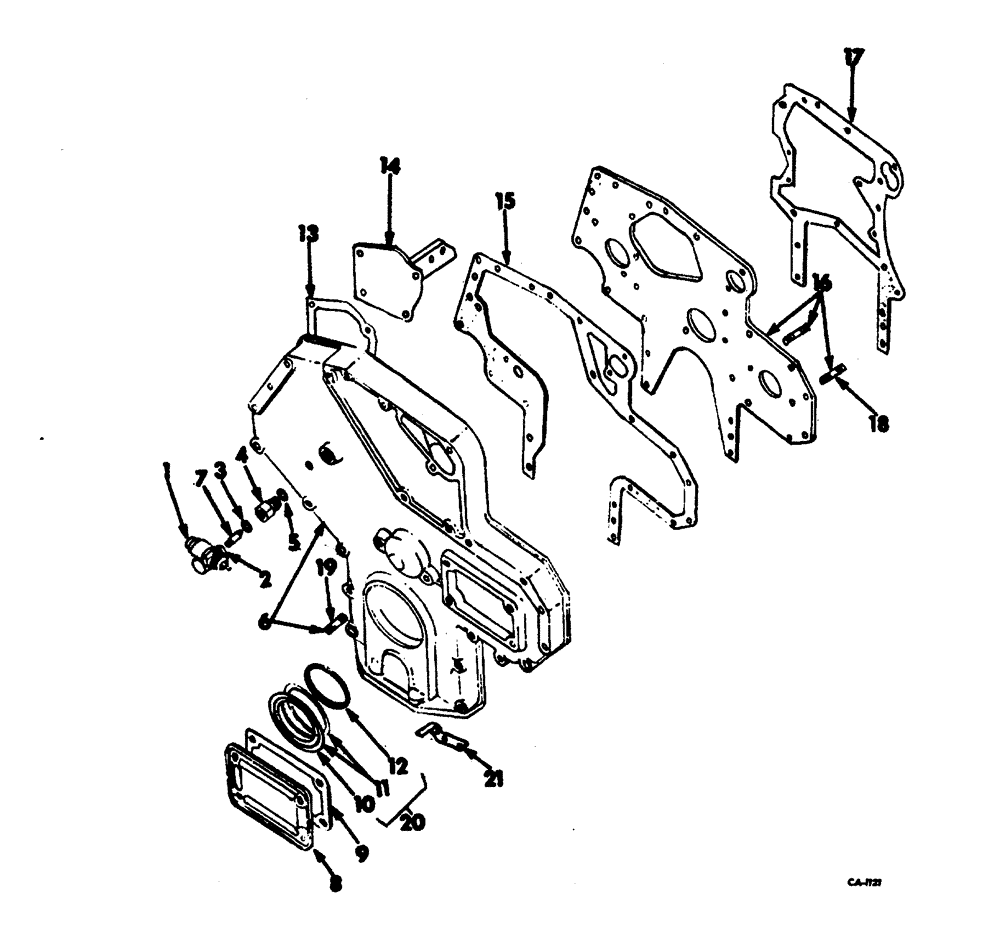

Запчасти Case 3400 (113) - CRANKCASE FRONT COVER AND RELATED PARTS (10) - ENGINE

1

3055982R92

ANGLE DRIVE

DRIVE ANGLE

1шт.

2

3132116R1

NUT

hex

1шт.

3

3052295R91

SEAL,6mm ID x 16mm OD x 7mm Thk

RING, radial seal

1шт.

4

3055983R1

REDUCER FITTING

SPACER

1шт.

5

717598R1

GASKET

RING, packing

1шт.

6

3136244R91

LID

COVER ASSEMBLY, crankcase front

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

9шт.

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

7шт.

103320

LOCK WASHER,5/16"

7шт.

993570R1

SPARE PART spring

6шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

7

3056986R1

SUPPORT

SHAFT, angle drive extension

1шт.

8

3055140R1

COVER

injection pump

1шт.

103320

LOCK WASHER,5/16"

4шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

131042H

WASHER

WASHER, 11/32 x 11/16 x 16 GA

4шт.

9

3055141R1

GASKET

COVER injection pump

1шт.

10

932681R1

DOWEL,4mm OD x 24mm L

Pin (.157 x .945)

1шт.

11

RING ASSEMBLY, distance order package 3136724R93

1шт.

12

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

13

3132541R1

GASKET

closing cover

1шт.

14

3138776R91

COVER

ASSEMBLY

1шт.

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

4шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

15

3055994R1

GASKET

COVER crankcase front

1шт.

16

3138774R91

PLATE

ASSEMBLY, crankcase front

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

7шт.

103320

LOCK WASHER,5/16"

7шт.

20990R1

PLUG

auto hex HD PIPE, 3/8-18

1шт.

17

3055239R1

GASKET

front plate

1шт.

18

3055065R1

STUD

3шт.

9635082

NUT,5/16" - 18, Gr 5

3шт.

19

3055242R1

STUD

4шт.

20

3136724R93

SEAL KIT

PACKAGE, crankcase oil seal service consists of £1 ring 3136723R21 1 pin

1шт.

21

3136252R11

INDICATOR

timing

1шт.
